قناع بلاستيك ناعم
متعددة الوظائف
جودة عالية SMD LED
13 بت ~ 24 بت
زاوية مشاهدة كبيرة
IP65
1،920 هرتز 3840 هرتز
6000 نت ~ 10000 نت

Football Stadium Perimeter LED Screen Display Aluminum Cabinet and Reliable Protection

يستخدم هذا المنتج سبائك الألومنيوم ، وهو قناع ناعم خاص لمعالجة القوالب بحرفية خاصة. لديها قدرة ممتازة ضد الاصطدام. مقترنة بوسادة علوية ناعمة لحماية اللاعبين من الإصابة عند اصطدامهم بالشاشة في الملعب عن طريق الصدفة.

شاشة LED محيط الملعب معيار UEFA / FIFA

1600mmx960mm cabinet size. LeemanLED Pro series perimeter LED screen meets the UEFA standard, and we have sold many perimeter screens to different European stadiums.

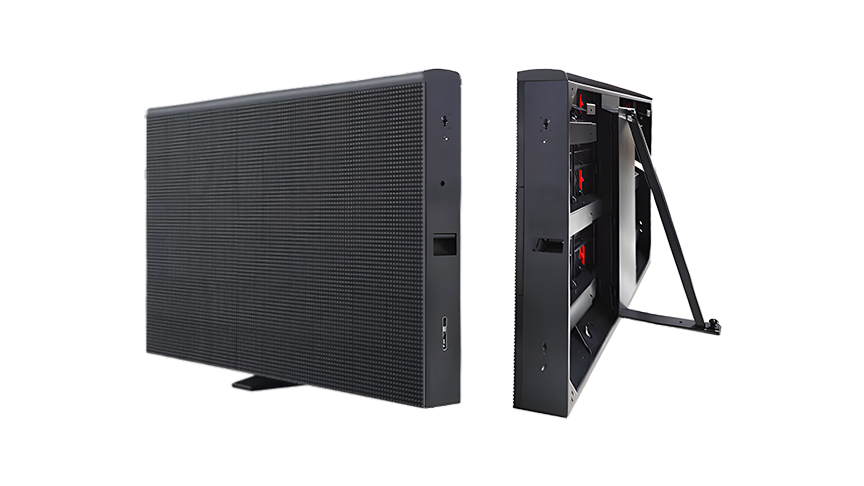

Stadium LED Screen Advertising Front and Rear Service

Front and rear service design brings more convenience to the games, and will reduce maintenance time and cost. Front maintenance makes the repairing procedures easier and faster and more efficient, while rear maintenance is widely applied and adapted to various occasions.

Perimeter LED Display Seamless Connection & Large Viewing Angle

The high-precision die-casting aluminum cabinet is adopted. Compared with the traditional one, the perimeter led screen’s cabinet is quicker, and it has better splicing effect; The viewing angle of our sports LED display can be up to 160°. With the high refresh rate of 3840Hz, the visual effect is excellent when we play the videos or images.

Sports Stadium LED Screen High Brightness & Redundant Signal Data and Power Supply

Our perimeter LED screen’s brightness is up to 7500nits even higher. Product Passed All Certifications. Our products have been certified by UL, CE (including EMC & LVD), RoHS, ETL, FCC, CB, IECE, KC, PSE, etc; In order to avoid black-out screen during the events, we can provide a signal back solution. When one of the signal cables breaks down, the screen is still able to display the live-feed or advertising content. Meanwhile, backup power supply is also feasible. When the power supply fails, the screen won’t appear black.

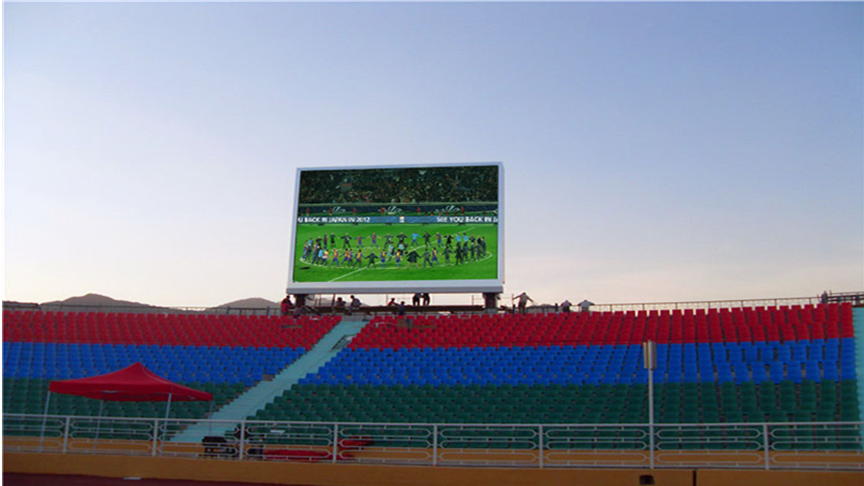

على أساس الأداء المتفوق والتصميم الفريد ، يمكن استخدام شاشة LED المحيطية في الداخل والخارج. يتم استخدامه دائمًا في الملعب على النحو التالي: شاشة لافتة محيطية ؛ لوحة الدرجات؛ شاشة بث فيديو مباشر.

معامل

بندP6.6P8ص 10
مساحة وحدة الصورة 6.67 ملم8mm10 ملم
نوع الصمام SMD 3 in 1SMD 3 in 1SMD 3 in 1
قرار الوحدة 48dots × 48dots40dots × 40dots32dots × 32dots
وضع القيادة 1/6scan1/4scan / 1/5scan1/2scan
وحدة بكسل 2,304dots1,600dots1024dots
حجم الوحدة 320mm × 320mm320mm × 320mm320mm × 320mm
حجم الخزانة 1,600mm × 960mm1,600mm × 960mm1,600mm × 960mm
قرار مجلس الوزراء 240dots × 144dots200dots × 120dots160dots × 96dots
كثافة البكسل 27,777dots/㎡15,625dots/㎡10000 نقطة /
الحد الأدنى لمسافة المشاهدة ≥6 م≥8 م≥10 م
سطوع 6,000nits~7,000nits6,000nits~7,000nits6,000nits~7,000nits
الصف IP Front IP65 / Rear IP54Front IP65 / Rear IP54Front IP65 / Rear IP54
معدل التحديث ≥ 18000≥ 18000≥ 18000
مقياس رمادي 14 بت ~ 24 بت14 بت ~ 24 بت14 بت ~ 24 بت
زاوية الرؤية H.120° / V.115°H.120° / V.115°H.120° / V.115°
نسبة التباين 4000: 1 4000: 1 4000: 1
الحد الأقصى لاستهلاك الطاقة  450W/㎡450W/㎡450W/㎡
متوسط استهلاك الطاقة150W/㎡150W/㎡150W/㎡
مساهمة الجهد AC220V ~ AC110V عند 50 هرتز / 60 هرتزAC220V ~ AC110V عند 50 هرتز / 60 هرتزAC220V ~ AC110V عند 50 هرتز / 60 هرتز
درجة حرارة التشغيل ﹣20 ℃ ~ 60 ℃﹣20 ℃ ~ 60 ℃﹣20 ℃ ~ 60 ℃
رطوبة العملية10%~95%10%~95%10%~95%
مواد مجلس الوزراءسبائك الألومنيومسبائك الألومنيومسبائك الألومنيوم
وزن الخزانة 38kg/panel38kg/panel38kg/panel
نظام التشغيل Windows (Win7 ، Win10 ، إلخ.)Windows (Win7 ، Win10 ، إلخ.)Windows (Win7 ، Win10 ، إلخ.)
توافق مصدر الإشارة DVI ، HDMI1.3 ، DP1.2 ، SDI ، HDMI2.0 ، إلخ.DVI ، HDMI1.3 ، DP1.2 ، SDI ، HDMI2.0 ، إلخ.DVI ، HDMI1.3 ، DP1.2 ، SDI ، HDMI2.0 ، إلخ.
arAR
شاشة عرض LED للملعب
شاشة عرض LED للملعب 1600mmx960mm في الهواء الطلق Waterproor IP68
