Soft Plastic Mask
Multifunctional
LED SMD di alta qualità
13 bit ~ 24 bit
Big Viewing Angle
IP68
1.920Hz~3.840Hz
6,000nits ~ 10,000nits

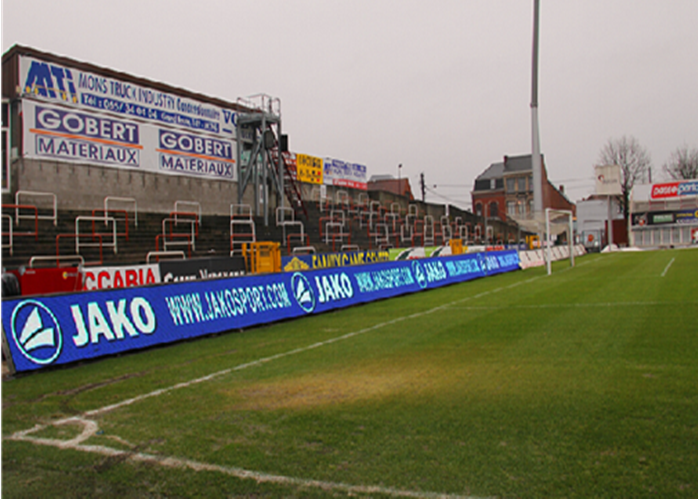

Front Service Stadium Perimeter LED Display 960×960 UEFA/FIFA Standard

1000mmx1000mm cabinet size. LeemanDisplay sries perimeter LED screen meets the UEFA standard, and we have sold many perimeter screens to different European stadiums.

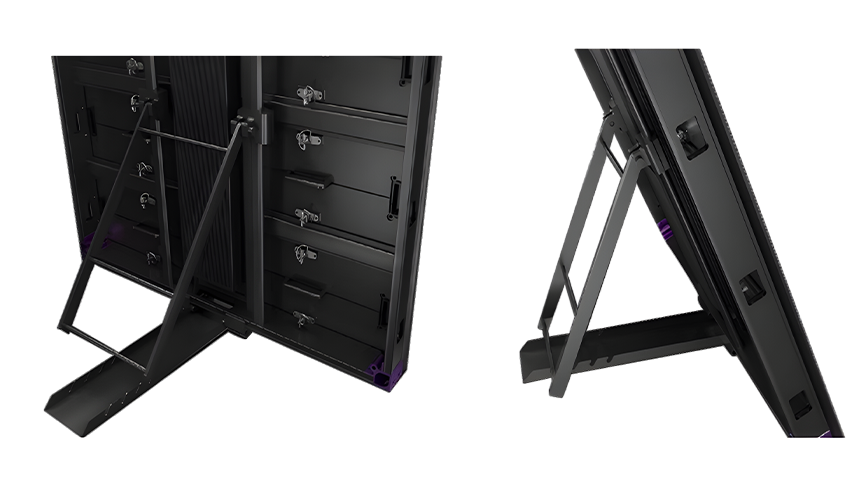

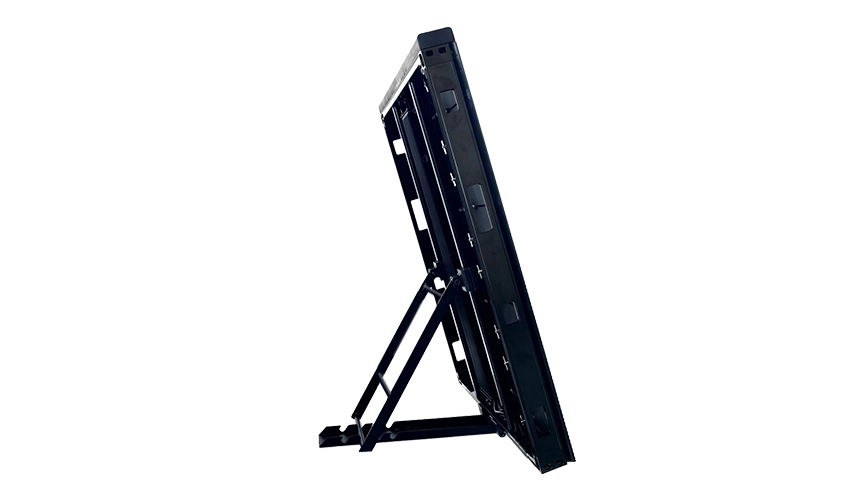

Front Maintenance Football LED Advertising Billboard Aluminum Cabinet and Reliable Protection

This product uses Aluminum Alloy, private mold processing soft mask with special crafsmanship. It performs excellent anti-collision capability. Coupled with top soft pillow to protect the players from injury when they hit the screen in the stadium by accident.

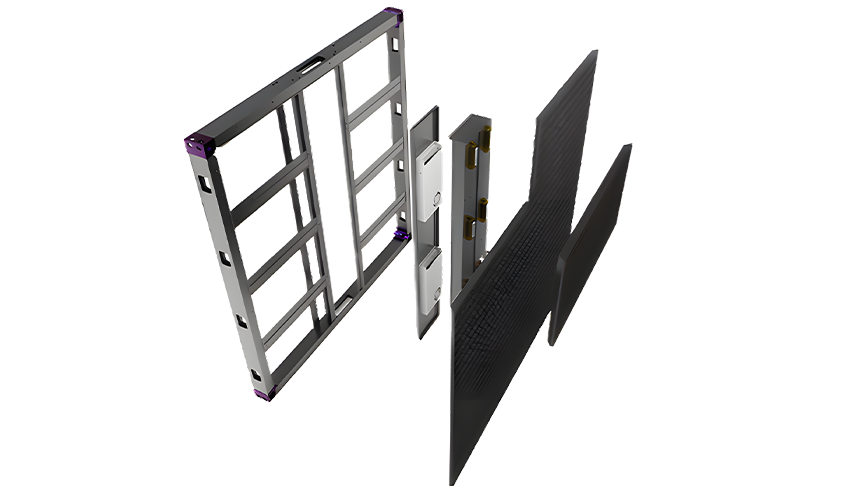

Fast front and rear access Schermo LED dello stadio

Front access design is more convenient for installation. The concise structure and light weight are designed to reduce the pressure of construction and transportation. The modules, power supply, receiving card, and other components can be disassembled from the front, which is convenient for the maintainer to maintain the LED screen. At the same time, traditional rear maintenance is also supported. You could choose anyone according to the actual situation. At the same time, traditional rear maintenance is also supported. You could choose anyone according to the actual situation.

Sports Stadium LED Screen Protective Method: IP 68

The LED screen in outdoor scenes will face more challenges than the indoor ones such as the damage of dust and water. To make the LED screen function safely and stably in outdoor scenes, we adopt advanced protective methods to withstand heavy rain and strong winds. The IP68 design can isolate electronic parts from humidity and dust, so the screen is more reliable.

Display a LED perimetrale dello stadio 960 × 960 mm High Brightness

Our perimeter LED screen’s brightness is up to 5500nits even higher.The Product Passed All CertificationsOur products have been certified by CE (including EMC & LVD), RoHS, ETL, FCC, CB, IECE, KC, PSE, etc. And in order to avoid black-out screen during the events, we can provide signal back solution. When one of the signal cables breaks down, the screen is still able to display the live-feed or advertising content. Meanwhile, backup power supply is also feasible. When the power supply gets failed, the screen won’t appear black.

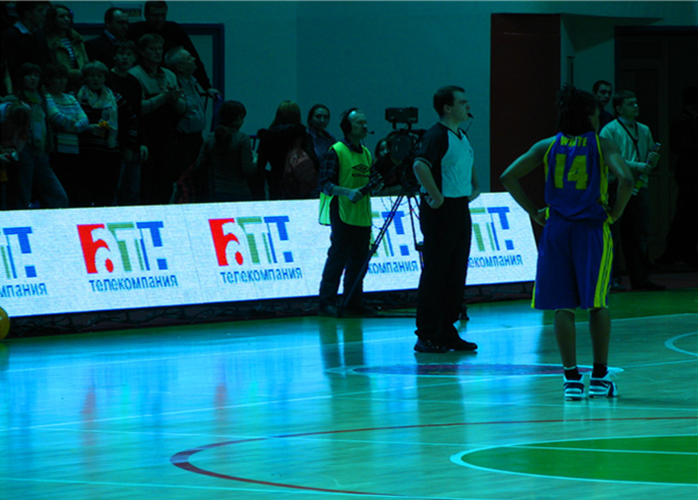

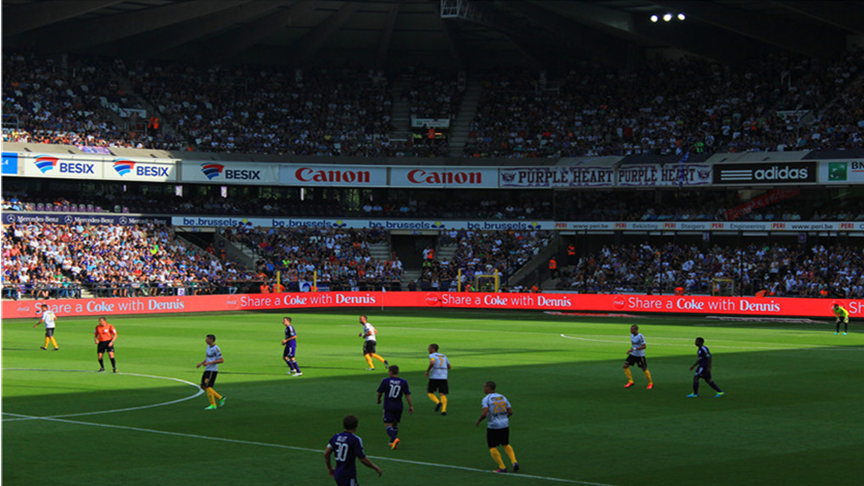

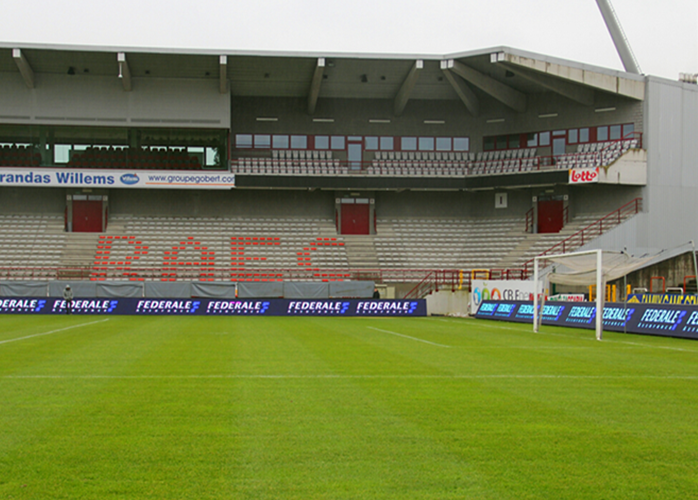

Football Stadium Perimeter LED Display Multifunction For Sports Events

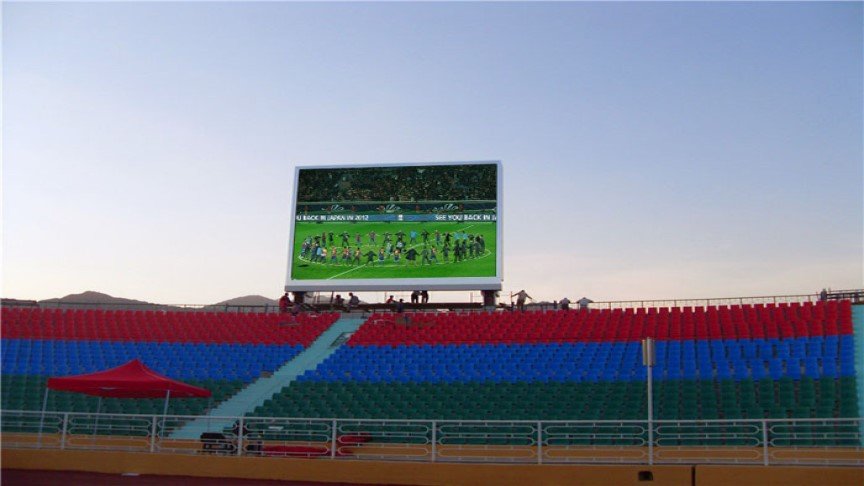

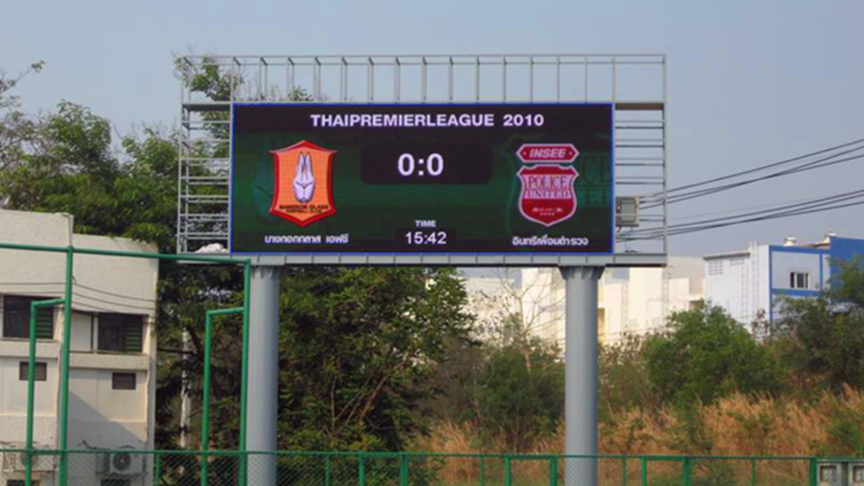

Perimeter led screen can be also used as a scoreboard in the stadium. You can clearly see what is on the screen at various angles.

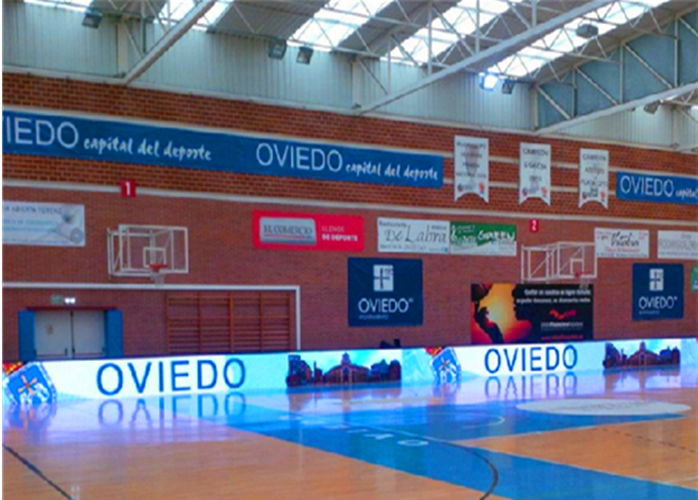

On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors. It is always used in the stadium as: Perimeter Banner Screen; Score Board; Live Feed Video Screen.

Parametro

Leeman Front Maintenance Front Service Waterproof IP68 Outdoor LED Display 960×960 Specification
Model nameLEEMAN P4LEEMAN P5LEEMAN P6LEEMAN P8LEEMAN P10
Pixel Pitch (mm)456810
Pixel Density (dot/m2)6250040000224781562510000
Gold Wire LED ChipNationStar Gold WireNationStar Gold WireNationStar Gold WireNationStar Gold WireNationStar Gold Wire
LED sealing TypeSMD1921SMD2525SMD2727SMD3535SMD3535
Module Size (mm * mm)480*320480*320480*320480*320480*320
Module Resolution (PX* PX)120*8096*6472*4860*4048*32
Brightness (cd/m2)6500 – 100007000 – 100007500 – 100008000 – 100008500 – 10000
Grey Scale(bit)≥16 – 24≥16 – 24≥16 – 24≥16 – 24≥16 – 24
Driving ICICND2169  ICND2165 ICND1068ICND2169  ICND2165 ICND1068ICND2169  ICND2165 ICND1068ICND2169  ICND2165 ICND1068ICND2169  ICND2165 ICND1068
Refresh Rate (Hz)3840 – 76803840 – 76803840 – 76803840 – 76803840 – 7680
Maximum Cabinet Power Consumption (W)500500500500500
Average Cabinet Power Consumption (W)150150150150150
Cabinet Size (mm * mm)960*960960*960960*960960*960960*960
Cabinet Weight (Kg)  24KG  24KG  24KG  24KG  24KG
Cabinet Thickness(mm)7575757575
Horizontal Viewing Angle (Deg)160
Vertical Viewing Angle (Deg)140
Input Voltage (V)110-220V/200-240V
Rapporto di contrasto6000:1
Grey scale/colors256levels of each color(RGB)/16.7M colors
Working Temperature (℃)-40~ +50
Working humidity(RH)10%~90%
Storage temperature range-40~ +80
Operation humidity (RH):10%~90%
Waterproof LevelIP68
working life10,0000H
Working Environment:Outdoor and Indoor
Installtion MethodRental and Fixed Installation
Maintenance methodDual Service, Front Maintenance and Back service
Warranty time5 years warranty time and free lifetime technical support
CertificationUL CE ETL ROHS EMC FCC ISO, IECEE, CB
