Soft Plastic Mask
Multifunctional
LED SMD di alta qualità
13 bit ~ 24 bit
Big Viewing Angle
IP68/IP66
1.920Hz~3.840Hz
6,000nits ~ 10,000nits

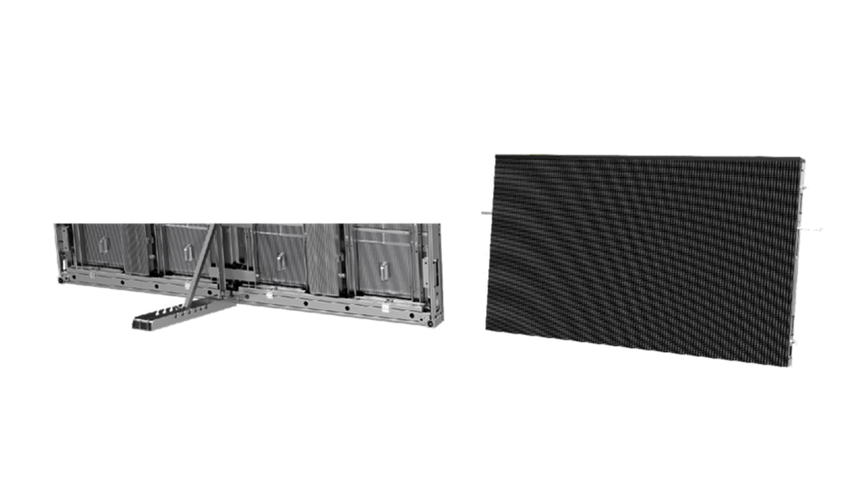

Outdoor perimeter led display Emergency Access Design

It is also called safe door design. The LED safety door display cabinet can rotate on the horizontal plane, so as to achieve the switch of the LED stadium safety door opening and closing state. It can respond to the occurrence of emergency.

Sport Perimeter LED Displays and LED Screens Player Protective Design

This product uses Aluminum Alloy, a private mold processing soft mask with special craftsmanship. It has excellent anti-collision capability. Coupled with a top soft pillow to protect the players from injury when they hit the screen in the stadium by accident.

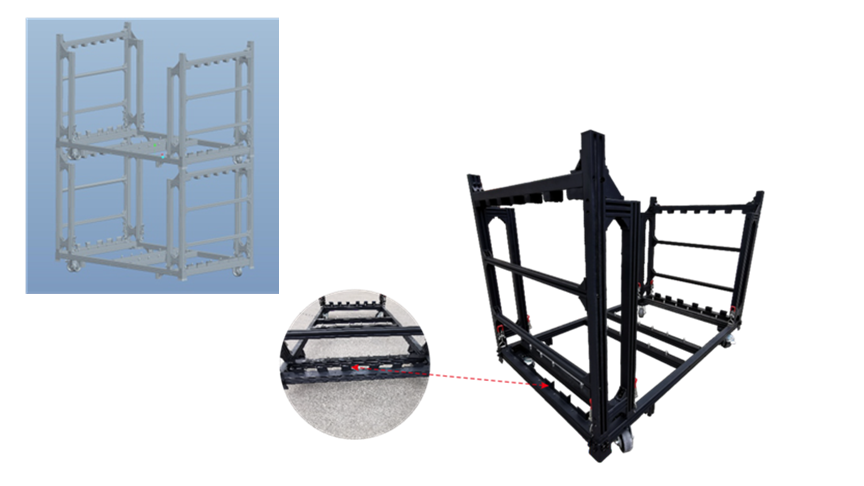

Stadium Football Sport Advertising LED Display Screen Convenient Stadium Screen Carts

The carts are specially designed for the perimeter LED screens, to put the displays into and transport the displays. Putting panels in carts is the easiest method to load and unload. Cart: Pack 4 Panels, the size is 900*1600mm. Cart: Two carts can be stacked.

Stadium perimeter LED screen as banner LED display UEFA/FIFA Standard

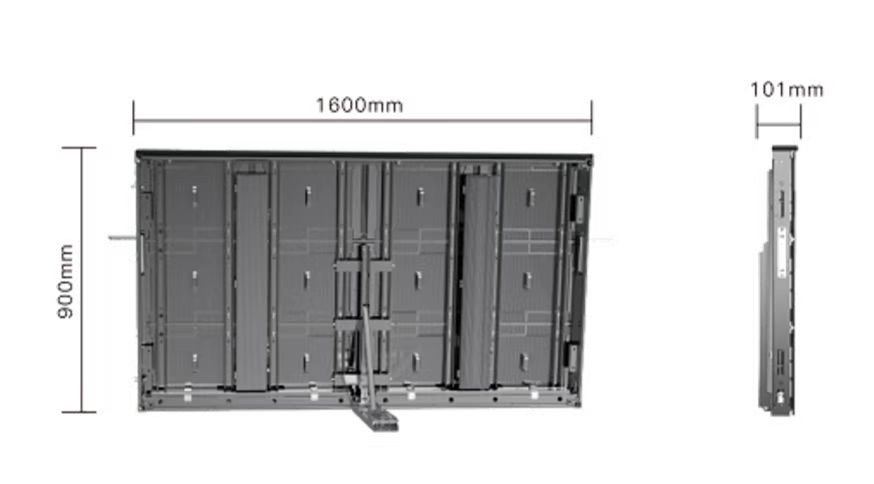

1600mmx900mm cabinet size. LeemanLEDscreen Pro series perimeter LED screen meets the UEFA standard, and we have sold many perimeter screens to different European stadiums.

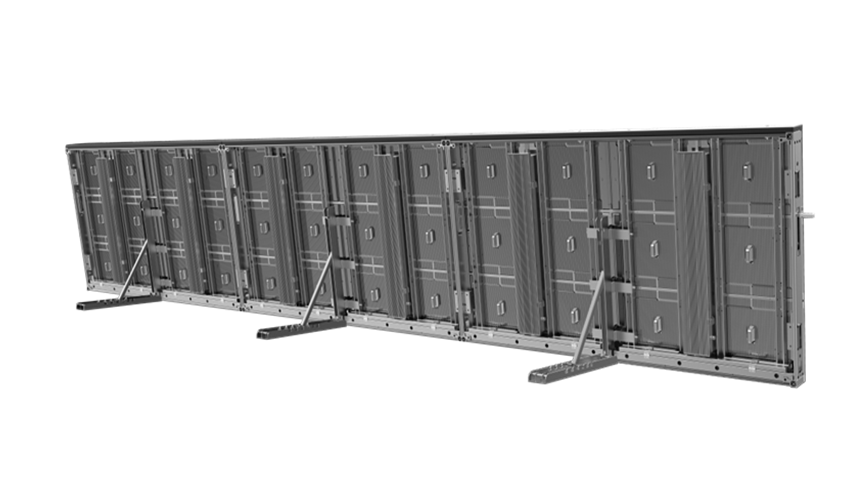

Sports Stadium Perimeter LED Display Billboard 1600X900 Light Weight and Fast Installation

Cabinet weight is only 45kg. The high-precision die-casting aluminum cabinet is adopted. Compared with the traditional one, the perimeter led screen’s cabinet is quicker, and it has better splicing effect.

Outdoor LED Perimeter Advertising Boards High Protective Grade Front IP68/ Rear IP66

LeemanLED Ultra series adopts high quality conformal coating, so the component is effectively moisture-proof and dust-proof. Therefore, the screen can be used in severe indoor and outdoor environments.

Sport Stadium Perimeter LED Screen High Refresh Rate & Wide Viewing Angle

The viewing angle of our sports LED display can be up to 170 degrees. With the high refresh rate of 3840Hz, the visual effect is excellent when we play the videos or images.

Perimeter Video Advertising Led Billboard High Brightness up to 10000nits

Our perimeter LED screen’s brightness is up to 5500nits even higher. Product Passed All CertificationsOur products have been certified by UL, CE (including EMC & LVD), RoHS, ETL, FCC, CB, IECEE,KC,PSE, etc.

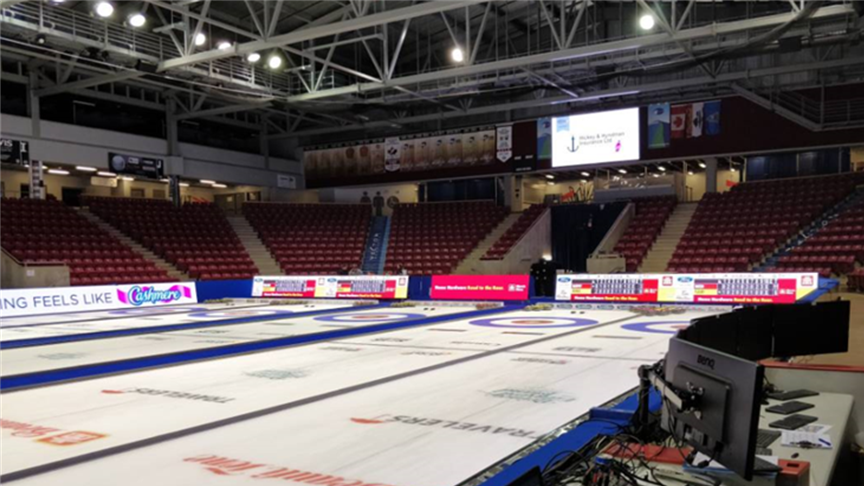

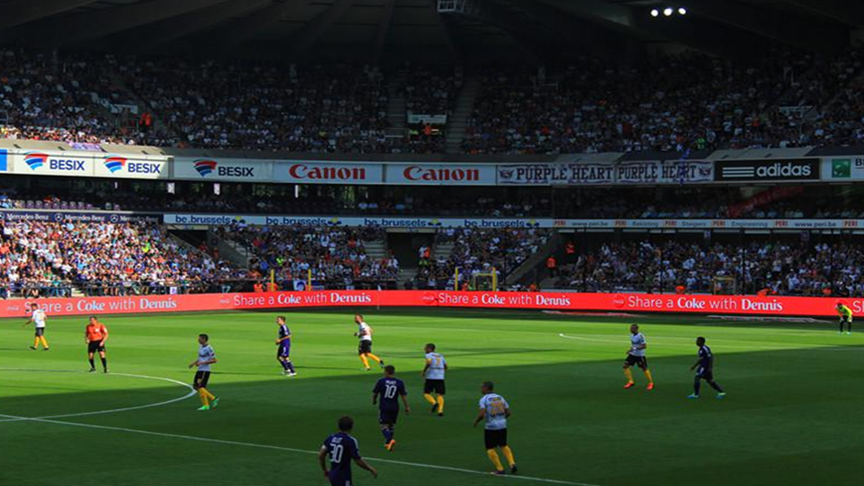

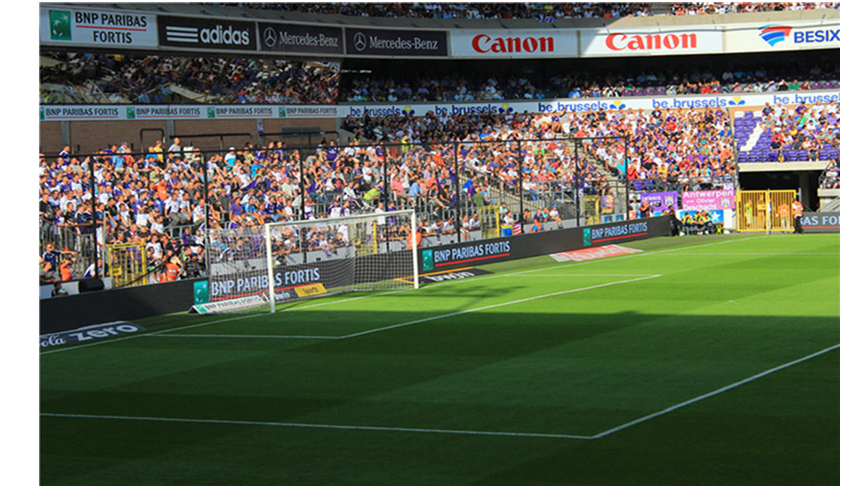

On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors. It is always used in the stadium as: Perimeter Banner Screen; Score Board; Live Feed Video Screen.

Parametro

Articolo P6.6 P8.3 P10
Passo dei pixel 6.67mm 8.33mm 10mm
Tipo LED NationStar SMD 2727 NationStar SMD 3535 NationStar SMD 3535
Risoluzione del modulo 60dots × 45dots 48dots × 36dots 40dots × 30dots
Modalità di guida Constant Current Constant Current Constant Current
Pixel del modulo 2,700dots 1,728dots 1200dots
Dimensione del modulo 400mm × 300mm 400mm × 300mm 400mm × 300mm
Dimensioni armadio 1,600mm × 900mm x 101mm 1,600mm × 900mm x 101mm 1,600mm × 900mm x 101mm
Risoluzione del gabinetto 240 punti × 135 punti 192 punti × 108 punti 160dots × 90dots
Densità di pixel 22,500dots/㎡ 14,400dots/㎡ 10,000dots/㎡
Distanza minima di visione ≥6 m ≥8m ≥10m
Luminosità 6,500nits~9,500nits 6,500nits~10,000nits 6,500nits~10,000nits
Grado IP Front IP68 / Rear IP66 Front IP68 / Rear IP66 Front IP68 / Rear IP66
Frequenza di aggiornamento ≥18000 ≥18000 ≥18000
Scala di grigi 16bits~24bits 16bits~24bits 16bits~24bits
Angolo di visione H.170° / V.140° H.170° / V.140° H.170° / V.140°
Rapporto di contrasto  6000: 1  6000: 1  6000: 1
Consumo energetico massimo 600W/㎡ 550W/㎡ 550W/㎡
Consumo energetico medio 250W/㎡ 200W/㎡ 200W/㎡
Tensione di ingresso AC260V~AC90V @ 50Hz / 60Hz AC220V~AC110V @ 50Hz / 60Hz AC220V~AC110V @ 50Hz / 60Hz
temperatura di esercizio ﹣40℃~60℃ ﹣40℃~60℃ ﹣40℃~60℃
Umidità operativa 10%~90% 10%~90% 10%~90%
Materiale del gabinetto Lega di alluminio Lega di alluminio Lega di alluminio
Peso dell'armadio 35kg/panel 35kg/panel 35kg/panel
Sistema operativo Windows (Win7, Win10, etc.) Windows (Win7, Win10, etc.) Windows (Win7, Win10, etc.)
Compatibilità della sorgente del segnale DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, ecc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, ecc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, ecc.
it_ITIT
Display a LED perimetrale per stadio all'aperto 1600mmx900mm Armadio in alluminio ultra sottile
Esposizione di LED perimetrale all'aperto dello stadio 1600×900 con il Governo di alluminio ultra sottile P6.67 P8.33 P10
