1000x500 MAX Series Outdoor LED Screen Rental P1.9 P2.5 P2.6 P2.9 P3.9 P4.8 P5.9

High-quality Front Service Outdoor Rental LED display P2.6, P2.9, P3.9, P4.8

High contrast
Good cooling design
Excellent cabinet design
IP65
Easy maintenance
3840Hz refresh rate

1000×500 Outdoor Rental LED Video LED Panel P2.976 HD Full-color Stage LED Display DJ Stage/Bar/Exhibition/Concert Background Wall Easy maintenance

To meet different needs of live events projects, our 1000×500 Max series use front and rear module maintenance design. If there is any problem with the LED panel, you can replace the module in a few seconds. That greatly reduces the “downtime” during the event. The pixel pitch P2.6, P2.9, P3.9 and P4.8 are available.

Outdoor rgb panel 500×1000 rental cabinet screen P1.953 P2.604 P2.976 P3.9 P4.8 led video wall display Good cooling design

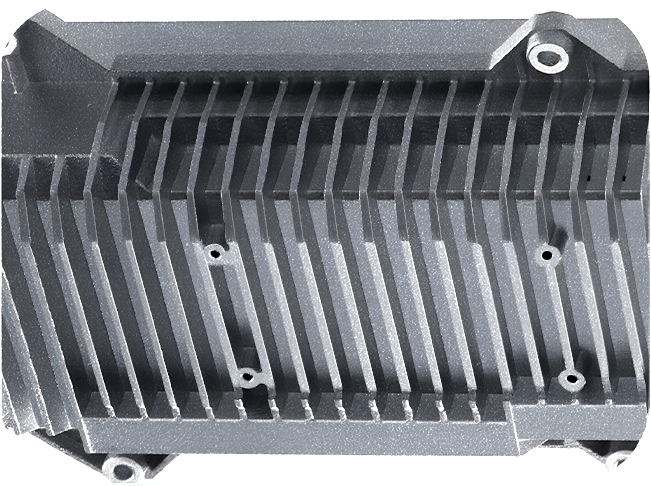

The thermal properties of the PSU (the house is comprised of a big cool plate & a whole chassis) rapidly dissipate heat, reducing power consumption and improving component operations.

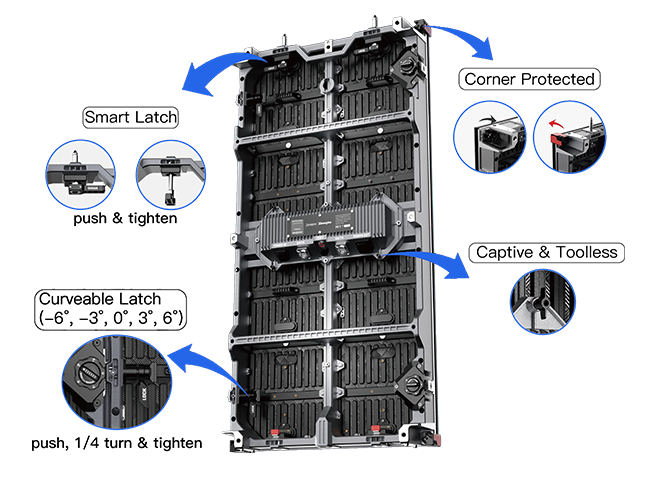

Front Service P2.98 Outdoor Die-Cast Rental LED Screen Panel 1000×500 Excellent cabinet design

Smart latch for tighter assemble with no gap. Curveable latch for multi-shaped design. Anti-collision protectors of the cabinet protect the modules and the LED lamp. Captive and toolless design for tightening the thermal properties & easier installation and replacement.

P2.604 Outdoor Rental Full Color Advertising LED Display Panel 1000x500mm 3840Hz refresh rate

The high refresh rate ensures the smoothness of every frame of the images, thus the LED display won’t appear flicking on the highspeed camera.

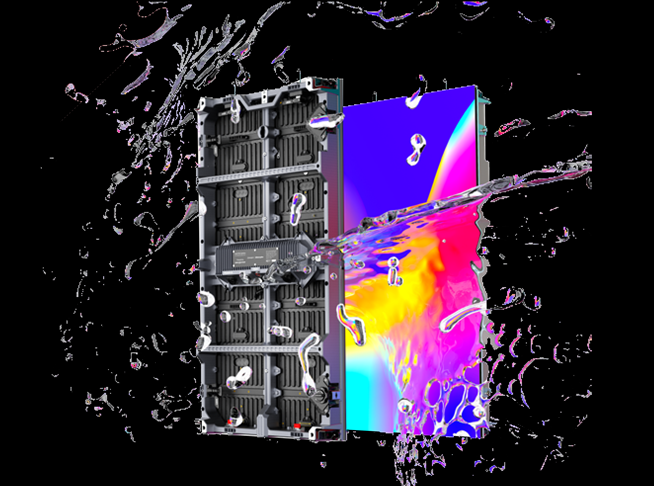

Front Service 1000X500 Series Rental LED Display IP65

The LED screen in outdoor scenes will face more challenges than the indoor ones such as the damage of dust and water. To make the LED screen function safely and stably in outdoor scenes, we adopt advanced protective methods to withstand heavy rain and strong winds. The IP65 design can isolate electronic parts from humidity and dust, so the screen is more reliable.

1000X500 LED Video Wall Display Rental High contrast & long louvers

Our 1000×500 Max series use small & bright LEDs that help with contrast, more importantly, long louvers on mask that shade LEDs from environmental light especially sunlight mainly contribute to contrast. We do long louvers onto 2.9, 3.9 and 4.8mm pitches, further more, nanotechnology & sophisticated work are used to perfectly fix mask onto module, which brings a consistent look on panel.

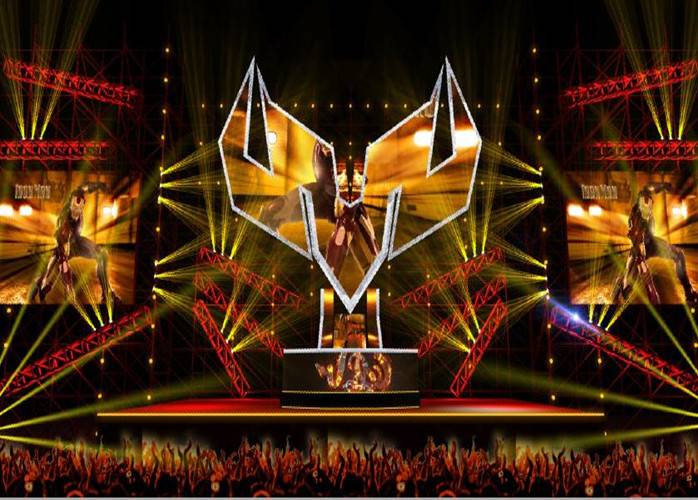

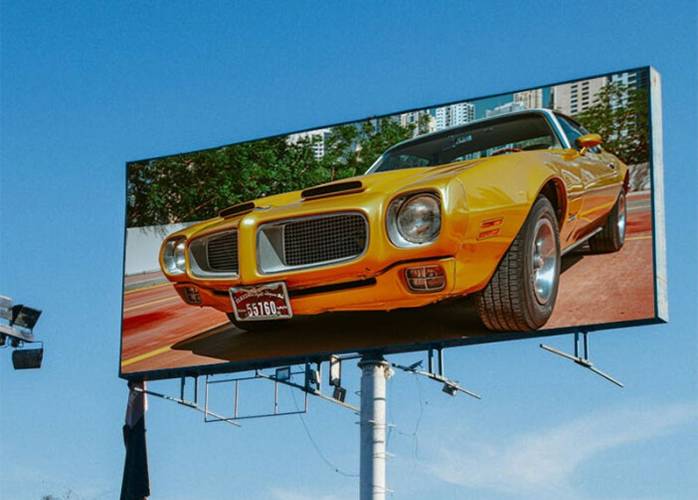

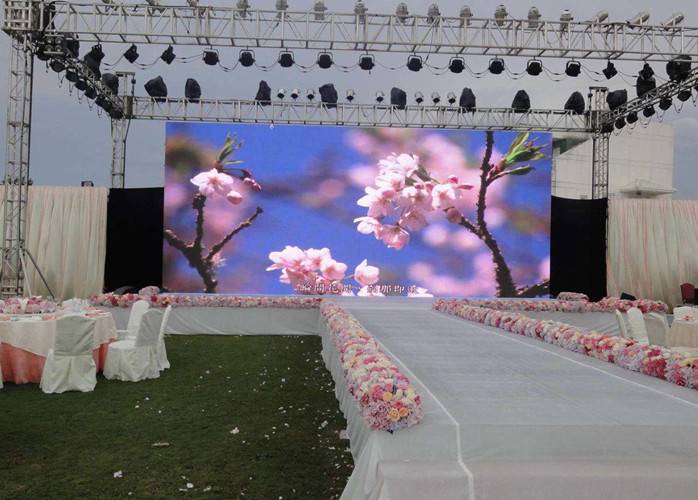

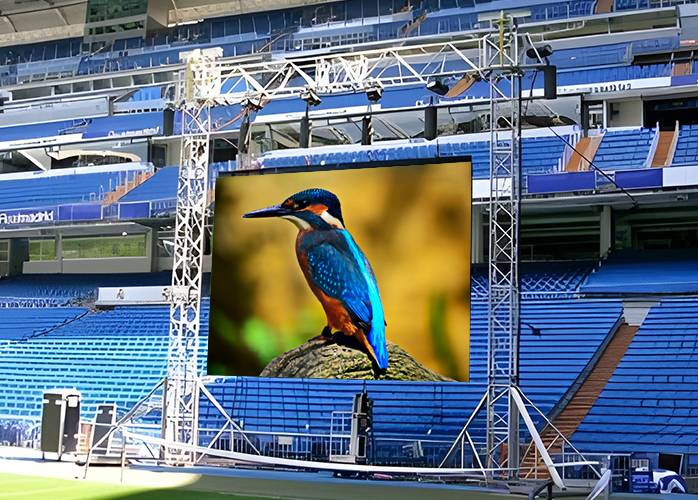

To fit every different scene, the outdoor full color LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in: Cinemas; Stages; Advertisements.

Parameter

ItemP2.6P2.9P3.9P4.8
Pixel Pitch2.604mm2.976mm3.906mm4.807mm
LED Type SMD1415SMD1415 SMD1415SMD1921
Module Resolution96dots x 96 dots84dots x 168dots64dots × 128dots52dots × 104dots
Driving Mode1/16scan1/14scan1/8scan1/8scan
Module Pixels9,216dots14,112dots8,192dots5,408dots
Module Size250mm × 250mm250mm × 500mm250mm × 500mm250mm × 500mm
Cabinet Size500mm × 500mm500mm × 1,000mm500mm × 1,000mm500mm × 1,000mm
Cabinet Resolution192dots × 192dots168dots x336dots128dots × 256dots104dots × 208dots
Pixel Density147,456dots/㎡112,896dots/㎡65,536dots/㎡43,264dots/㎡
Minimum Viewing Distance≥2.6 m≥2.9 m≥3.9 m≥4.8 m
Brightness 4,500nits5,500nits5,500nits5,500nits
IP GradeIP65IP65IP65IP65
Refresh Rate3,840Hz3,840Hz3,840Hz3,840Hz
Gray Scale≤14bits≤14bits≤14bits≤14bits
Viewing AngleH:160° / V:160°H:160° / V:160°H:160° / V:160°H:160° / V:160°
Maximum Power Consumption800W/㎡800W/㎡800W/㎡800W/㎡
Average Power Consumption250W/㎡250W/㎡250W/㎡250W/㎡
Input VoltageAC110V~AC220V @ 50Hz / 60HzAC110V~AC220V @ 50Hz / 60HzAC110V~AC220V @ 50Hz / 60HzAC110V~AC220V @ 50Hz / 60Hz
Operating Temperature﹣20℃~65℃﹣20℃~65℃﹣20℃~65℃﹣20℃~65℃
Operating Humidity10%~90%10%~90%10%~90%10%~90%
Cabinet MaterialDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting Aluminum
Cabinet Weight10kg/panel14.5kg/panel14.5kg/panel14.5kg/panel
Operating SystemWindows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)
Signal Source CompatibilityDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.vv
