Vivid Performance
Lighter and Thinner
Easy to Control
Suitable for Different Shelves
Water&Collision-Resistant
Quick to Install and Maintain

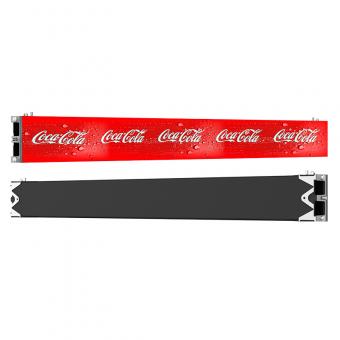

LED Lights for Display Shelf Vivid Performance

High refresh rate, high gray scale, great color saturation and intelligent color temperature adjustment which make the visual effect of our SF series LED display more vivid.

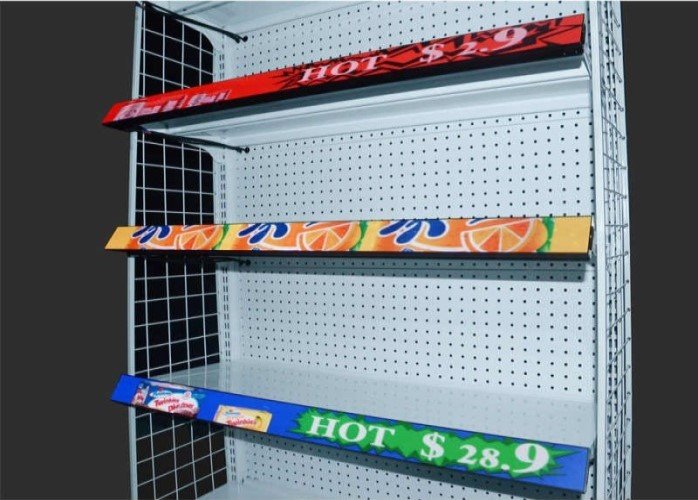

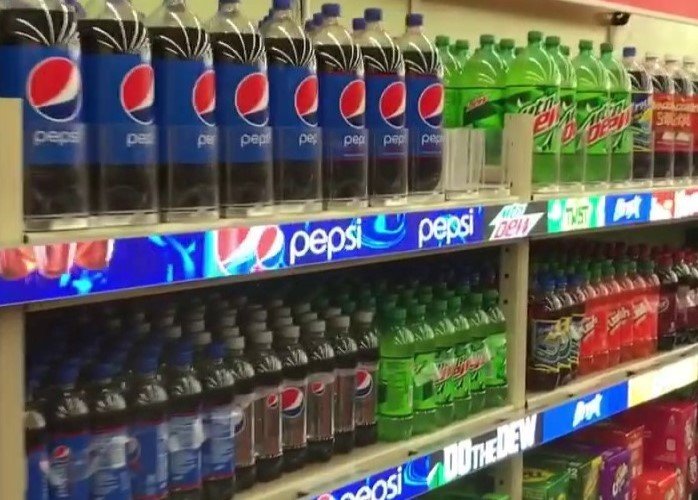

P1.25 Cob Led Shelf Screen Supermarket Advertising Suitable for Different Shelves

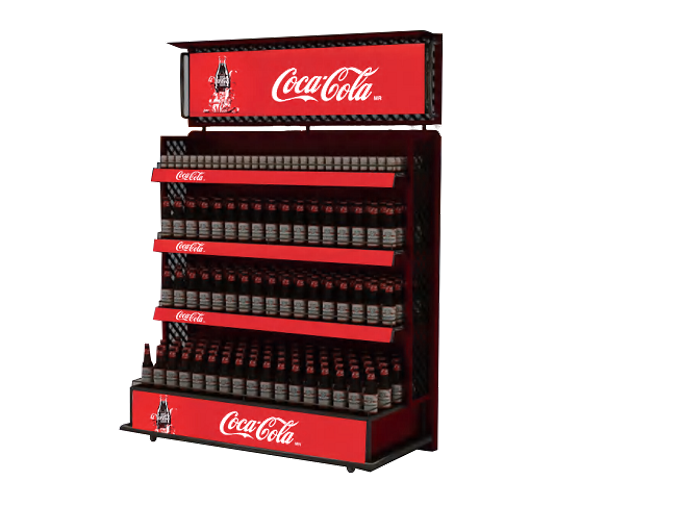

SF is designed for different types of shelves: it can be placed in shopping malls, supermarkets, retail stores, etc.

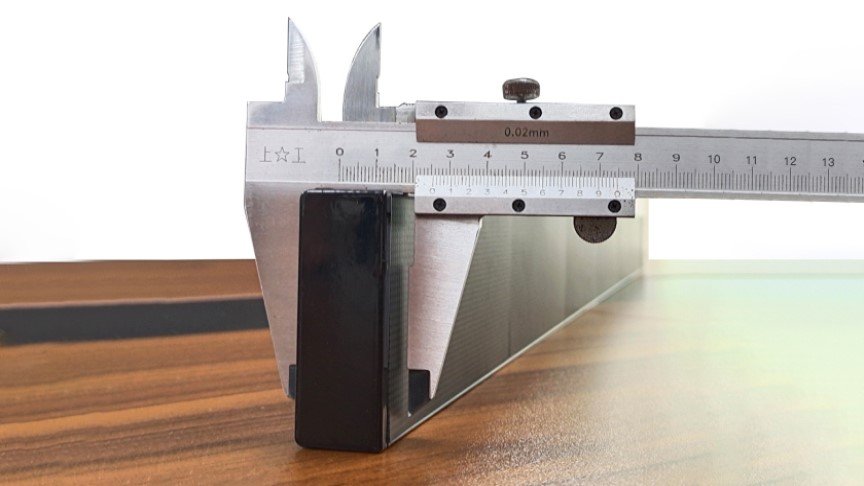

Custom LCD Shelf Display Light and Thin, Easy Installation

22mm cabinet thickness and 1.5kgs weight make SF lighter and thinner than most LED shelf displays in the market.

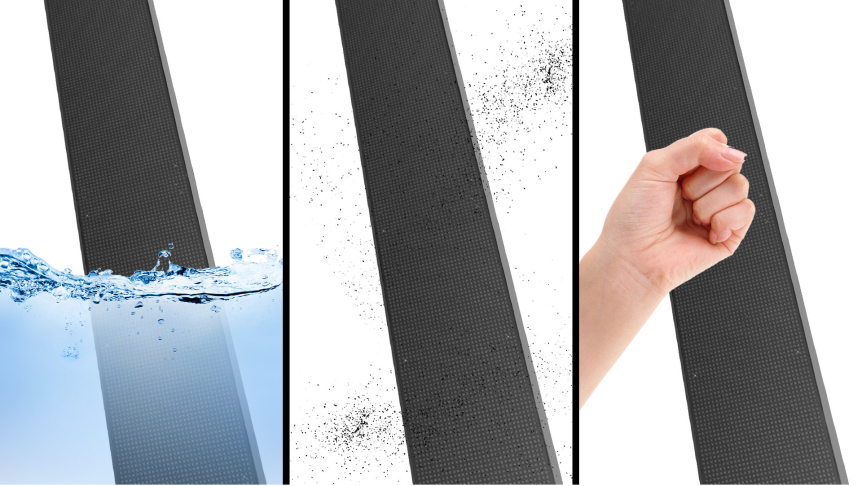

Shelf LED Display COB LED message board Water-Proof & Collision-Resistant

High-tech GOB raises the level of protection up to IP65, which protects the screen from being damaged by water and collision.

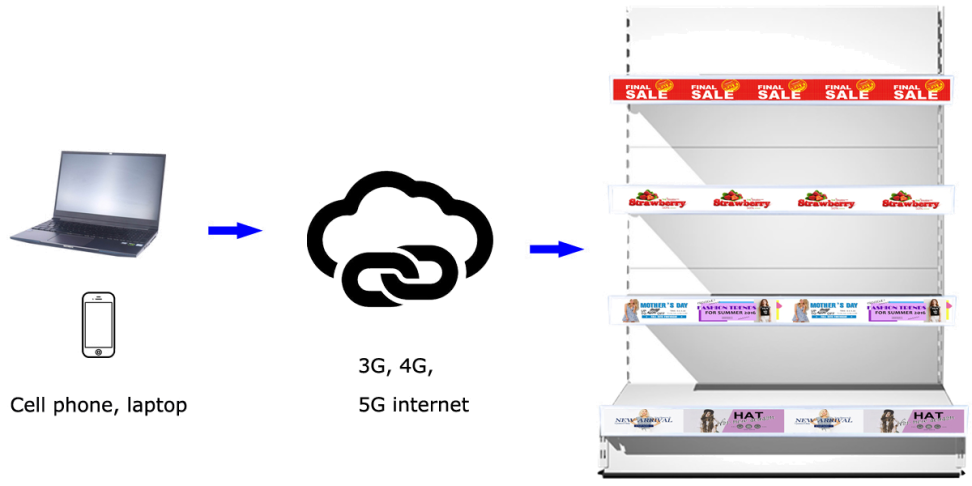

LED Smart Shelf Advertising Display Easy to Control

Advanced controlling system enables the screen to “plug and play”. What’s more, the content of display can be changed via cloud- base anywhere anytime.

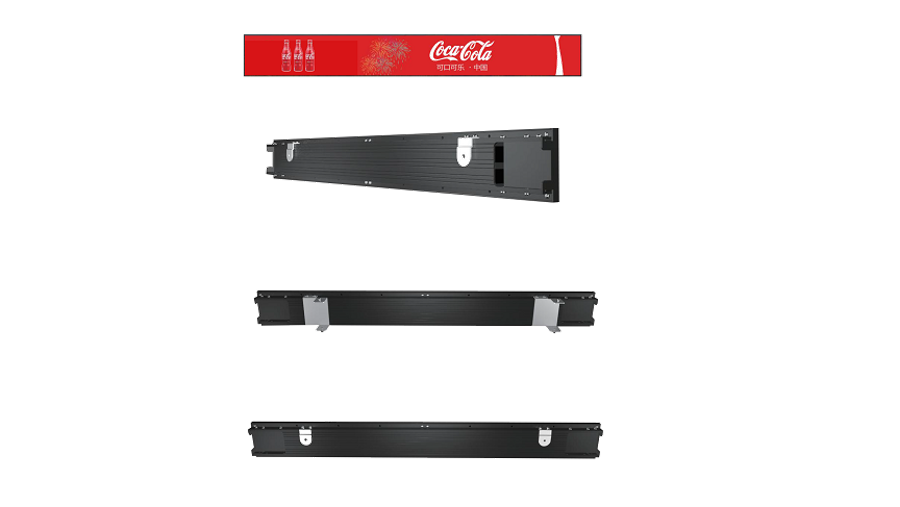

Digital Shelf LED Display Quick to Install and Maintain

The cabinet has three sizes: 600mm × 60mm, 900mm × 60mm and 1200mm × 60mm. Thus the cabinet splicing is flexible and this item suits various shelves.

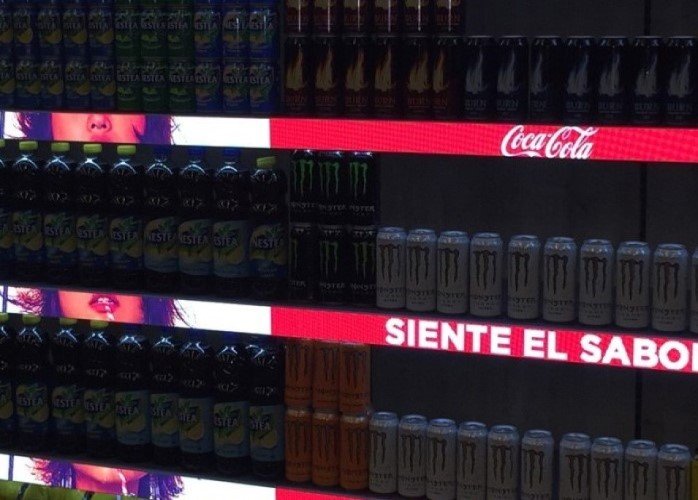

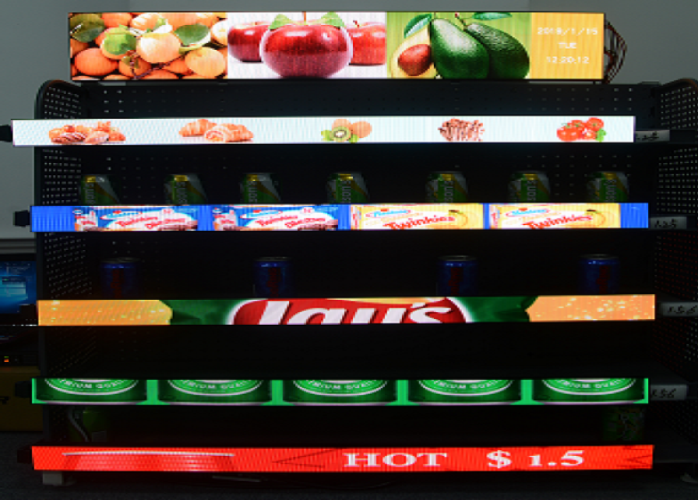

Shelf LED screen can play various videos and pictures. It always shows attractive videos and pictures display effects to our customers: Convenience Store; Supermarket; Pharmacy.

Parameter

Item P1.25 P1.25 P1.5
Pixel Pitch 1.25mm 1.25mm 1.5mm
LED Type R/G/B GOB SMD1010 GOB SMD 4 in 1 R/G/B GOB SMD1212
Module Resolution 240dots × 48dots 192dots × 48dots 200dots × 40dots
Driving Mode 1/48scan 1/48scan 1/40scan
Module Pixels 11,520dots 9,216dots 8,000dots
Module Size 300mm × 60mm 240mm × 60mm 300mm × 60mm
Cabinet Size 600mm × 60mm or 900mm × 60mm 1200mm × 60mm 600mm × 60mm or 900mm × 60mm
Cabinet Resolution 480dots × 48dots or 720dots × 48dots  960dots × 48dots 400dots × 40dots or 600dots × 40dots
Pixel Density 640,000dots/㎡ 640,000dots/㎡ 444,444dots/㎡
Minimum Viewing Distance ≥1.2m ≥1.2m ≥1.5m
Brightness 600nits~1000nits 600nits~1000nits 600nits~1000nits
IP Grade IP43 or IP65 (with GOB technology) IP43 or IP65 (with GOB technology) IP43 or IP65 (with GOB technology)
Refresh Rate 3,840Hz 3,840Hz 3,840Hz
Gray Scale 16bits~24bits 16bits~24bits 16bits~24bits
Viewing Angle H:160° / V:160° H:160° / V:160° H:160° / V:160°
Maximum Power Consumption 18W/PC or 27W/PC 35W/PC 18W/PC or 27W/PC
Average Power Consumption 5.5W/PC or 8W/PC 10W/PC 5.5W/PC or 8W/PC
Input Voltage AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz AC110V~AC220V @ 50Hz / 60Hz
Operating Temperature ﹣40℃~60℃ ﹣40℃~60℃ ﹣40℃~60℃
Operating Humidity 10%~90% 10%~90% 10%~90%
Cabinet Material Aluminum Aluminum Aluminum
Cabinet Weight 1.2kg/panel or 1.8kg/panel  2.5kg/panel 1.2kg/panel or 1.8kg/panel
Operating System Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.) Windows (Win7, Win8, etc.)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
