NG500/1000
Visor de LED de aluguel traseiro frontal de serviço duplo
LEEMAN LED Dual Maintenance Rental LED Display Screen 500×500 lightweight and space saving, with a number of core technologies. Innovative structural design, Seamless Display and Visual Effects, Supoort Right Angle Installation
- ALTA TAXA DE ATUALIZAÇÃO
- LED NATIONSTAR
- 5 ANOS DE GARANTIA
NG1000 Series Rental LED Screen

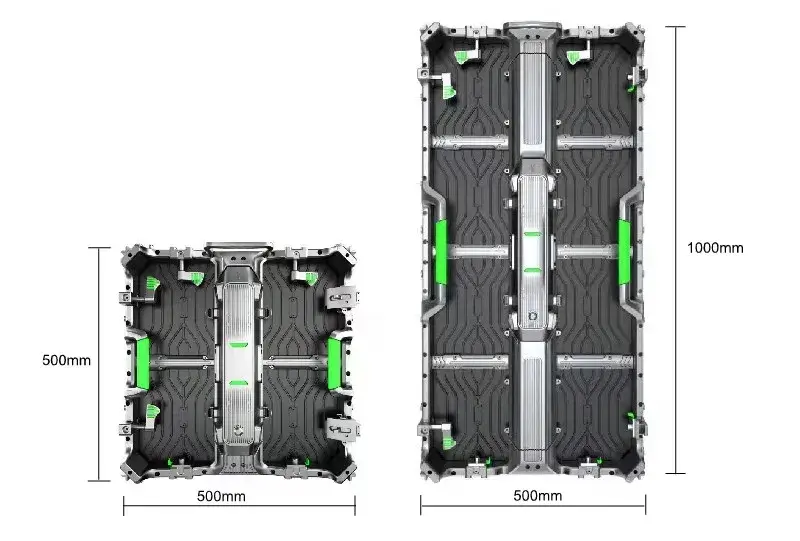

LEEMAN DISPLAY NG500/1000 Series Rental LED Display New design incorporates many aesthetic elements, adopts High strength die-casting aluminum, only 7.5kg per cabinet.better performance with high definition visual display.
Leve e Fino
Leeman LED Screen Rentals Portable and good stability with weight of 7.5kg/cabinet and thickness of 80mm.the feature of lightweight make the LED display is easy to carry, transport and install, saving good amount of money on your labor costs.
Estrutura perfeita
LEEMAN LED Video Wall Rental has the domestic top design team,the design innovation has its own unique philosophy,with a number of core technologies. Innovative structural design,avant-garde body lines,give you extraordinary experience

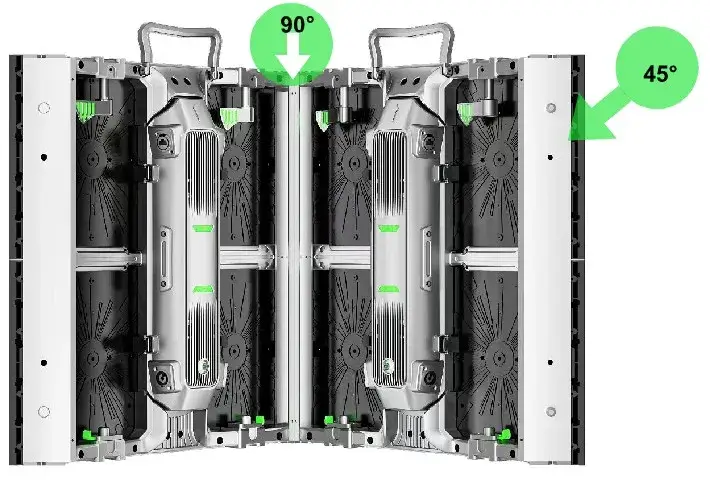

Support Right Angle Installation
LEEMAN Supports 90° right angle LED display Rental installation to meet some special buildings and applications.

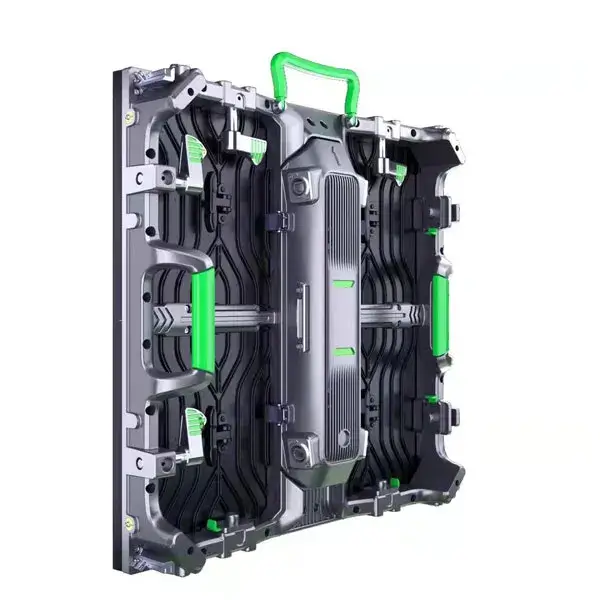

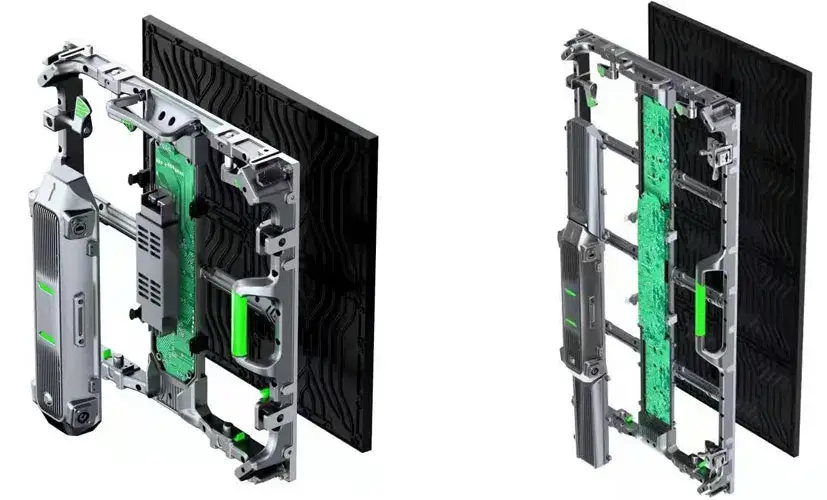

Detachable Back Cover
LEEMAN Front and Rear maintenance is available for LED Panels and Power Box. Leeman Display Adopts Optimized Control Box with Quick removable without any tools optional. the back box (includes power sully and control cards) is removable quickly for replacement and maintain。

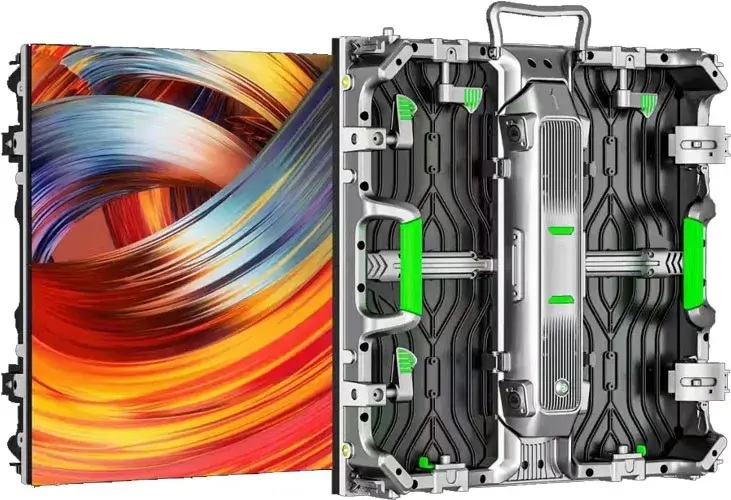

Front & Real Maintenance
NG500 Series Dual Maintenance Rental LED Display Screen is dual maintenance product, not only 100% front accessable but also can do rear service..The LED panels are magnetic and can be removed by tools from front side in 5 seconds. easy and convient, save you cost and labor
Exibição perfeita e melhores efeitos visuais
High precision aluminum cabinet frame make seamless splicing image and video display, offering you the perfect visual experience you desire from any angles.The picture quality confronts viewers with an entirely new sensory experience.

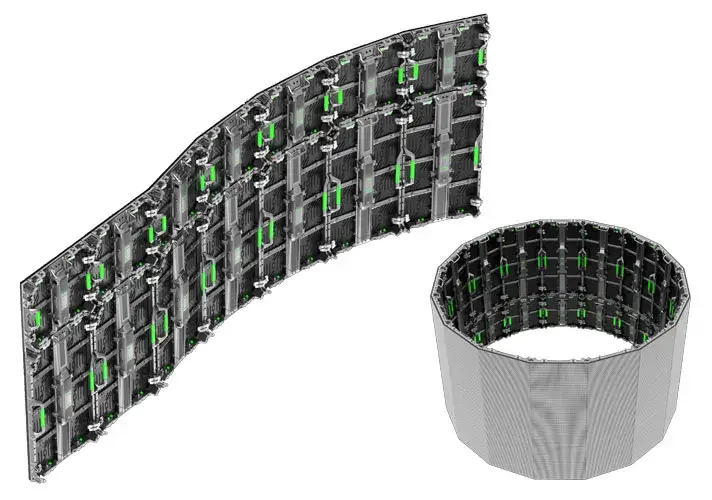

Curved Installation
In order to meet the various aspects of the LED Screen Rental field. NG500/1000 series led display design for Curved Installation. Curved with every 2.5° between -10°and 10°, which can make convex and concave.

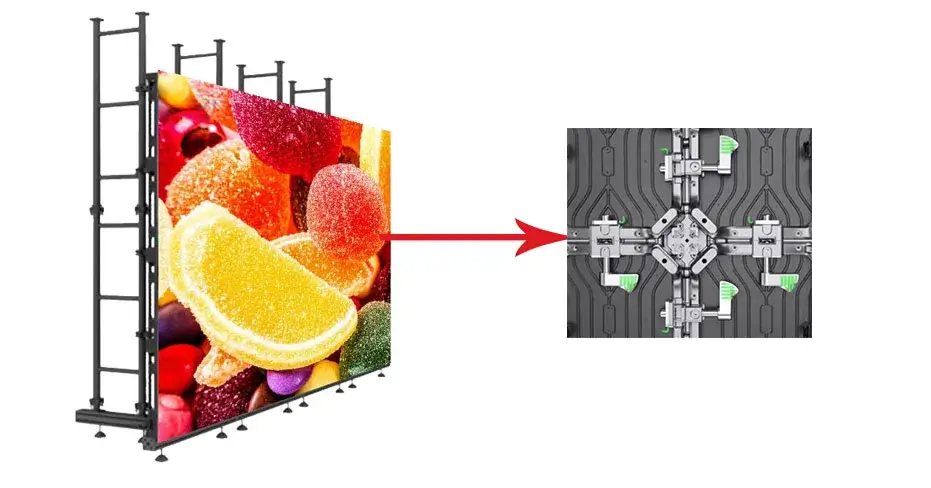

Modo de instalação múltipla do gabinete
Support 3 installation ways of cabinet with hanging installation, concave& convex installation, stack installation.
Visor de LED de aluguel traseiro frontal de serviço duplo
| Passo de pixels | 2,604mm | 2,976 mm | 3,91 mm | 1.81mm |
|---|---|---|---|---|
| Pixels por gabinete | 192×384 (HxV) | 168×336 (HxV) | 128×256 (HxV) | 104×208 (HxV) |
| Vida útil do LED | 100.000h (vídeo – brilho 50%) | |||
| Brilho | ≥1000 nits; | |||
| tamanho do módulo | 250*250mm | |||
| resolução do módulo | 96*96 pontos | 84*84 pontos | 64*64 pontos | 52*52 pontos |
| Taxa de atualização | 960-3,840Hz | |||
| Hor. ângulo de visão | 140° +/-5° (@50% brilho) | |||
| Vert. ângulo de visão | 140° +/-5° (@50% brilho) | |||
| Uniformidade de brilho | >98% | |||
| Escurecimento | 0-100% | |||
| Nível de cinza | 14 bits | |||
| Consumo médio de energia | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Consumo máximo de energia | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Tensão de alimentação de operação | 100-240 V / 50-60 Hz | |||
| Temperatura operacional | -10°C a +40°C / 14°F a 104°F | |||
| Umidade operacional | 10-80% | |||
| classificação IP | IP54 para interior, IP65 para exterior | |||
| Dimensões | 500 x 1000 x 80 mm (WxHxD)/ 19.6 x 39.2 x 3.14 inch (WxHxD) | |||
| Peso / Ladrilho | 12.5 kg / 27.55 lbs | |||
| Facilidade de manutenção | Serviço frente e verso | |||
| Certificações | CE, UL, FCC classe A, RoHS, WEE, REACH | |||
| garantia | 2 anos de garantia padrão do produto |
Produtos
P2.604
96*96 pontos/módulo
250*250mm Painel
500*500mm
Exibição interna e externa
P2.976
84*84 pontos/módulo
250*250mm Painel
500*500mm
Exibição interna e externa
P3.91
64*64 pontos/módulo
250*250mm Painel
500*500mm
Exibição interna e externa
P4.81
52*52 pontos/módulo
250*250mm Painel
500*500mm
Exibição interna e externa
