P3.91 Manutenção frontal 500x500 Telão de LED para locação externa

Outdoor Rental LED Screen P2.604 P2.976 P3.91 P4.81 P5.95

Great Cabinet Design
Flexible Installation
More Creativity
IP65
High Quality Material
High Quality PCB
High Brightness
Stunning Vision

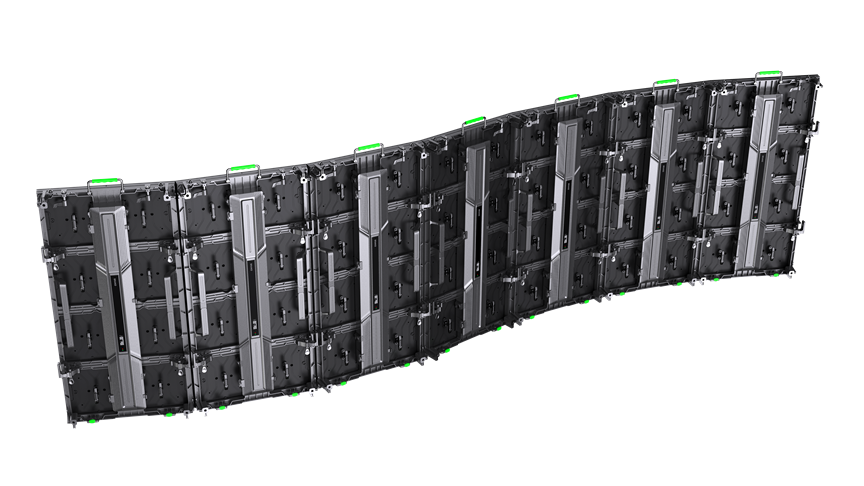

Outdoor Rental LED Display 500×500 Pixel Pitch 2.6mm 2.9mm 3.9mm 4.8mm Great Cabinet Design

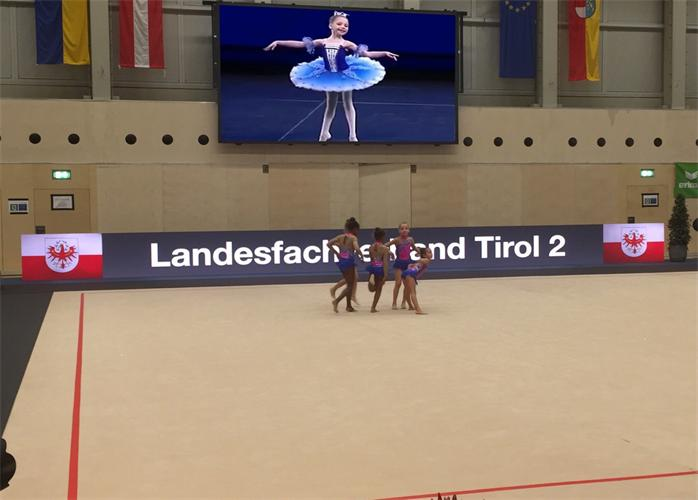

Outdoor rental LED screen aims at different kinds of outdoor events. The pixel pitches are P3.9, P4.8, and P5.9. Multiple ways of protection effectively protect the LED module from damage. Fast locks for tighter assemble with no gap. Anti-collision pin corners of the cabinet protect the module and led lamps. Aluminum makes the cabinet waterproof for outdoor applications.

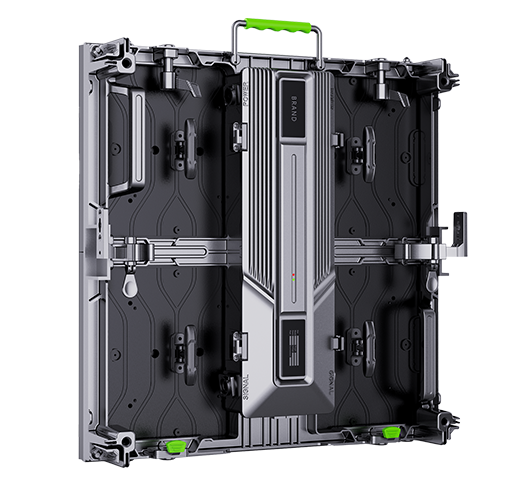

P3.91 Front Maintenance 500×500 Outdoor Rental LED Display Strong Cabinet, High Quality PCB

The cabinet material is aluminum, which is stronger than regular steel material. Meanwhile, the cabinet is lighter than the steel cabinet, so installation and transportation are easier. Moreover, we have utilized the high quality PCB in the LED modules. Therefore, the LED screen works more stably than similar outdoor rental products from other factories. There are two choices for the cabinet: 500 x 500mm and 500 x 1,000mm.

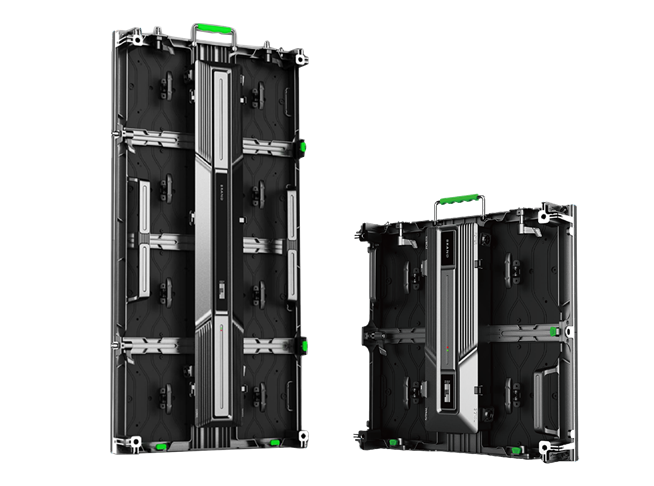

Flexible P2.976 Outdoor Adaptable Die-Cast Rental LED Screen Display Flexible Installation

To meet the requirements of customers in different application scenarios, 2 cabinet sizes are available. The weight of the cabinet is 7.5kgs for 500mm x 500mm cabinet and 12.5kgs for 500mm x 1,000mm cabinet, which makes installation flexible during the event.

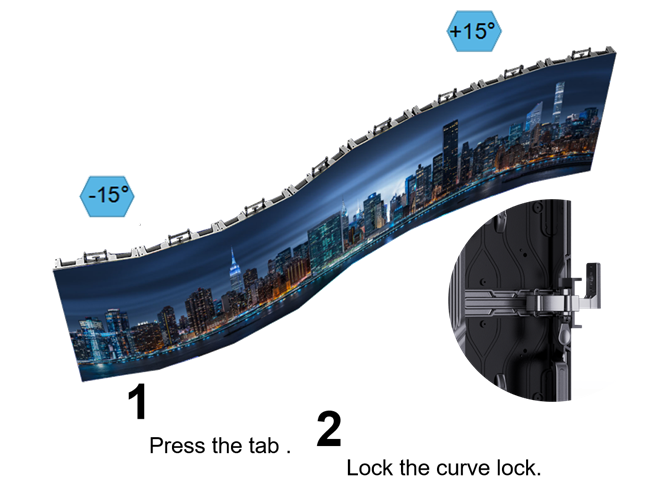

Front Open Curved P2.604 Outdoor Die-Cast Rental LED Screen Panel More Angles, More Creativity

The LED screen can be any shape, for example, round shape, flat shape, which enables more possibilities of your stage design.

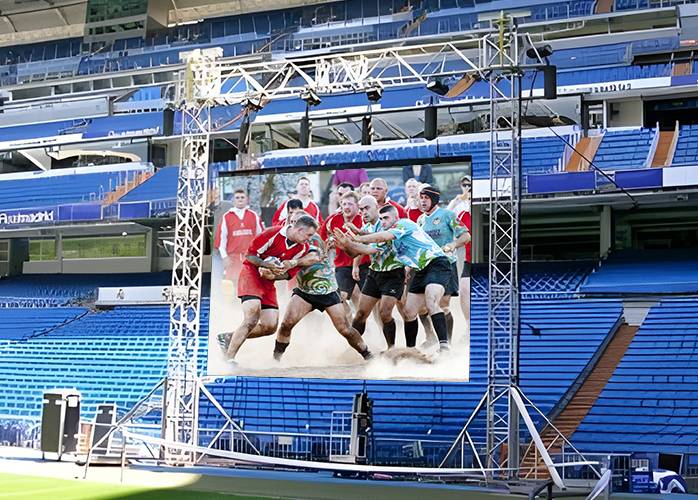

P2.6 Outdoor Rental Full Color Advertising LED Display Panel 500 X 500 Curved High Brightness

The brightness of the outdoor display is 4,500nits ~ 6,000nits, which enables the screen to have very good clarity in direct sunlight. Meanwhile, the cabinet also has very good heat dissipation, so the performance of the LED video display is very reliable.

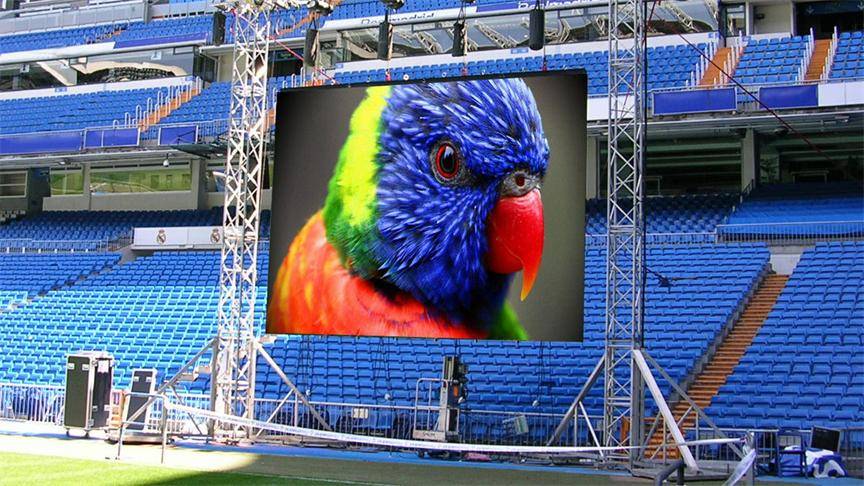

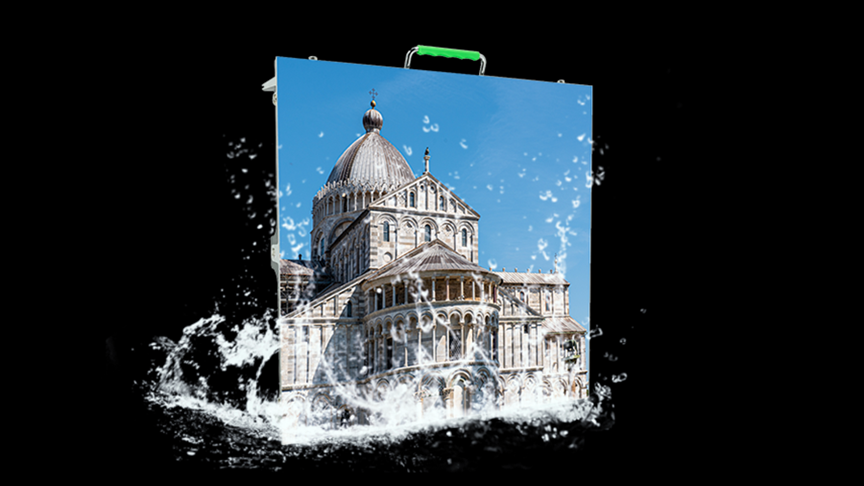

Front service P2.98 Outdoor LED Video Wall Display Rental 500X500 IP65 – Safe and Reliable

LED big screen adopts the automatic glue filling machine process, so it will effectively protect it from water and dust. High IP Rating (IP65) ensures great outputs in every condition.

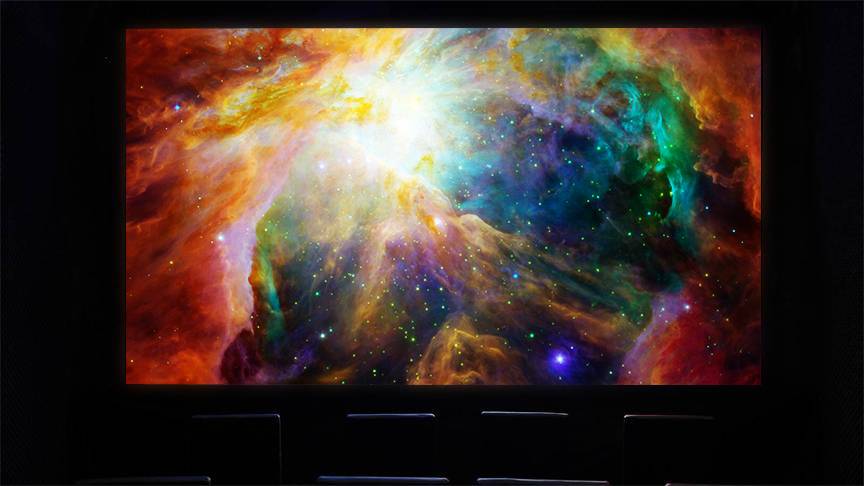

Curved P3.91 LED Rental Screen 500×500 Stunning Vision

With high quality material and great design, the screen looks extraordinary. Meanwhile, black outdoor LED technology is optional, and the outdoor rental LED screen stands out with peerless visual performance.

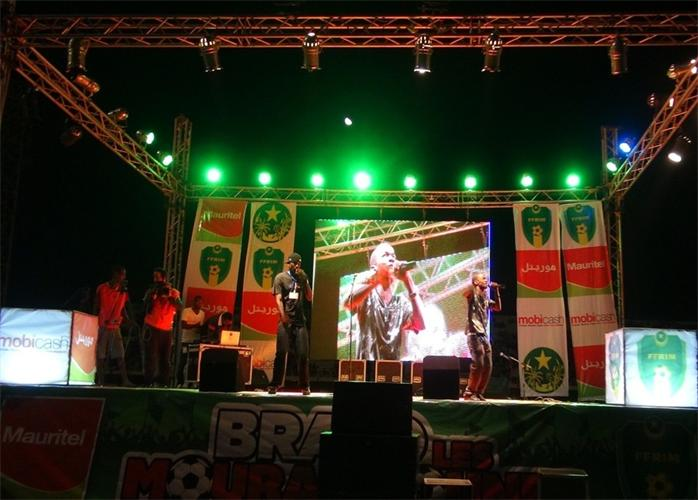

Outdoor 500×500 Die-casting Aluminum LED Display To fit every different scene, the outdoor full color LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in: Cinemas; Estágios; Anúncios.

Parâmetro

Leeman Pro Series Outdoor Rental & Fixed Installation LED Display Screen 500×1000 And 500×500
Model NO.COB P1.953GOB P2.604GOB P2.976GOB P3.91GOB P4.81
Pixel Pitch1.95mm2.6mm2.9mm3,91 mm4,81 mm
LED Chip LampNationStar Gold Wire ChipNationStar Gold Wire ChipNationStar Gold Wire ChipNationStar Gold Wire ChipNationStar Gold Wire Chip
LED typeCOBSMD1415SMD1921SMD1921SMD2525
Flatness between modules≤ 0.1mm≤ 0.1mm≤ 0.1mm≤ 0.1mm≤ 0.1mm
Pixel configurationCOB1R1G1B1R1G1B1R1G1B1R1G1B
Module size (W*H)250*250mm250*250mm250*250mm250*250mm250*250mm
Module resolution (W*H)128*128dots96*96 pontos84*84 pontos64*64 pontos52*52 pontos
Cabinet size(W*H*D)500*500*75mm500*1000*75mm
500*500*75mm
500*1000*75mm
500*500*75mm
500*1000*75mm
500*500*75mm
500*1000*75mm
500*500*75mm
Cabinet resolution (W*H)256*256dots192*384dots168*336dots128*256dots104*208dots
Cabinet weight6.5kg/pc14.5kg/pc14.5kg/pc14.5kg/pc14.5kg/pc
Densidade262144dots/m²147456dots/m²112896dots/m²65400dots/m²43264dots/m²
ICCFD555 / ICND2165CFD555 / ICND2165CFD555 / ICND2165CFD555 / ICND2165CFD555 / ICND2165
Scan21S32S21S16S13S
Best viewing distance>1.9m>2.6m>3m>4m>5m
Best viewing angle160°/ 120°160°/ 120°160°/ 120°160°/ 120°160°/ 120°
Brilho3500-4500cd/m²5000-6000cd/m²5000-6500cd/m²5000-7000cd/m²5500-7500cd/m²
Working voltageAC:110-240V  50~60HzAC:110-240V  50~60HzAC:110-240V  50~60HzAC:110-240V  50~60HzAC:110-240V  50~60Hz
Maximum power≤600W/ m²≤600W/ m²≤600W/ m²≤600W/ m²≤600W/ m²
Average power consumption300W/m²300W/m²300W/m²300W/m²300W/m²
Screen temperature rise(running state)≤ 5 degrees≤ 5 degrees≤ 5 degrees≤ 5 degrees≤ 5 degrees
Operation of Environmental Temperature/°C-35°C~60°C-35°C~60°C-35°C~60°C-35°C~60°C-35°C~60°C
Temperatura de operação10%~90%RH10%~90%RH10%~90%RH10%~90%RH10%~90%RH
No condensationNo condensationNo condensationNo condensationNo condensation
Screen color temperature2000K~9500K2000K~9500K2000K~9500K6500K~9500K7000K~10000K
Driving method1/32 scanning1/32 scanning1/32 scanning1/16 scanning1/16 scanning
Gray scale14bits~16bits14bits~16bits14bits~16bits14bits~16bits14bits~16bits
Refresh frequency3840Hz – 7680Hz3840Hz – 7680Hz3840Hz – 7680Hz3840Hz – 7680Hz3840Hz – 7680Hz
IP gradeFront:IP65Front:IP65Front:IP65Front:IP65Front:IP65
Back:IP65Back:IP65Back:IP65Back:IP65Back:IP65
Continuous working time≥7×24hrs≥7×24hrs≥7×24hrs≥7×24hrs≥7×24hrs
Lifetime100,000hrs100,000hrs100,000hrs100,000hrs100,000hrs
Installation methodBack Frame Installation / Hoisting / Inner Arc Installation
Pixel correctionEquipped with point – by – point brightness and chromaticity correction
Taxa de contraste6000:1
Grey scale/colors256levels of each color(RGB)/16.7M colors
Control modeSynchronization control
Controller systemNovastar video processor VX400 VX600 VX1000 and novastar receiving card A5s plug A8s DH7512-S
Control distanceSuper five double stranded network cable, more than 100 meters using optical fiber transmission
Software interfaceWindows XP /7/8/10 IOS
Signal inputHDMI、DVI, VGA, USB, LAN(Extensible interface)
Cabinet materialWaterproof Die-casting Aluminum
PowerConPower connector with cable
EtherConPower connection with cable
Maintenance methodDual Service, Front Maintenance and Back service
Warranty time5 years warranty time and free lifetime technical support
CertificationUL CE ETL ROHS EMC FCC ISO, IECEE, CB
