Soft Plastic Mask
Multifunctional
High Quality SMD LED
13 bits ~ 24 bits
Big Viewing Angle
IP65
1.920Hz~3.840Hz
6,000nits ~ 10,000nits

World Cup LED Sports Stadium Screen Football Stadium Advertising Reliable Protection and Flexible Adjustment

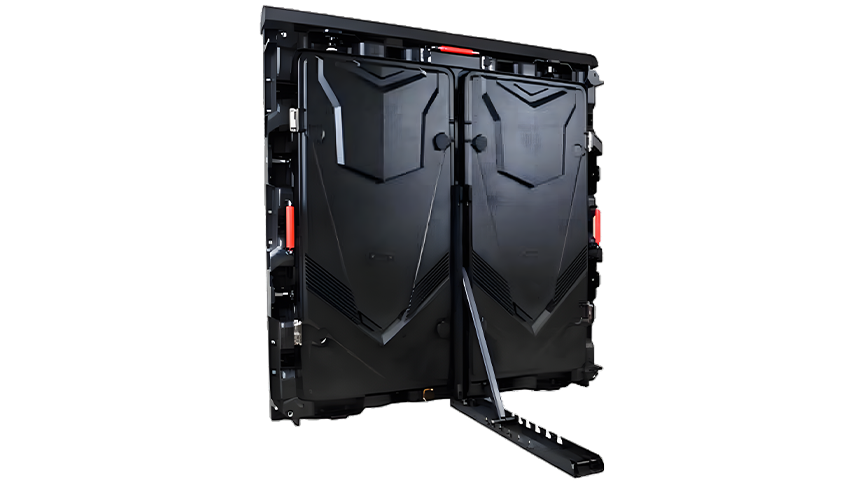

The main difference between perimeter led screen and the other series is LeemanLED series has soft plastic mask to protect the players from injury when they hit the screen in the stadium by accident. It has a back supporting stand for adjusting the screen to different viewing angle.

960x960mm perimeter LED display screen for football stadium video advertising World Cup HD Performance

Since we use high-quality SMD LED and excellent PCB design, the screen can bring you the HD picture performance indoors or outdoors. The pixel pitches are P6.6, P8 and P10.

Football LED Video Display And Scoreboard For World Cup Sport Stadium High Protective Grade IP65

SS1 series adopts high quality conformal coating, so the component is effectively moisture-proof and dust-proof. Therefore, the screen can be used in severe indoor and outdoor environment.

Football stadium led screen billboards For World Cup Multifunction For Sports Events

Perimeter led screen can be also used as a scoreboard in the stadium. You can clearly see what is on the screen at various angles.

Outdoor Advertising P8 Football Stadium Perimeter LED Display For World Cup Conexão perfeita

The high-precision die-casting aluminum cabinet is adopted. Compared with the traditional one, perimeter led screen’s cabinet is quicker, and it has better splicing effect.

World Cup P6.6 P8 P10 P16 Perimeter LED Display / Stadium LED Screen / Football LED Billboard Advertising Redundant Signal Data and Power Supply

In order to avoid black-out screen during the events, we can provide signal back solution. When one of the signal cables breaks down, the screen is still able to display the live-feed or advertising content. Meanwhile, backup power supply is also feasible. When the power supply gets failed, the screen won’t appear black.

Outdoor P6 Football Stadium Perimeter LED Screen For World Cup Complete Image Solution

Normally the width of the perimeter display is very long and the horizontal resolution is way over the limit of the monitor 3840dots, so the screen will be displayed in several separate windows. We have solution to make the screen to display a complete image even if the pixels more than 30k or even more.

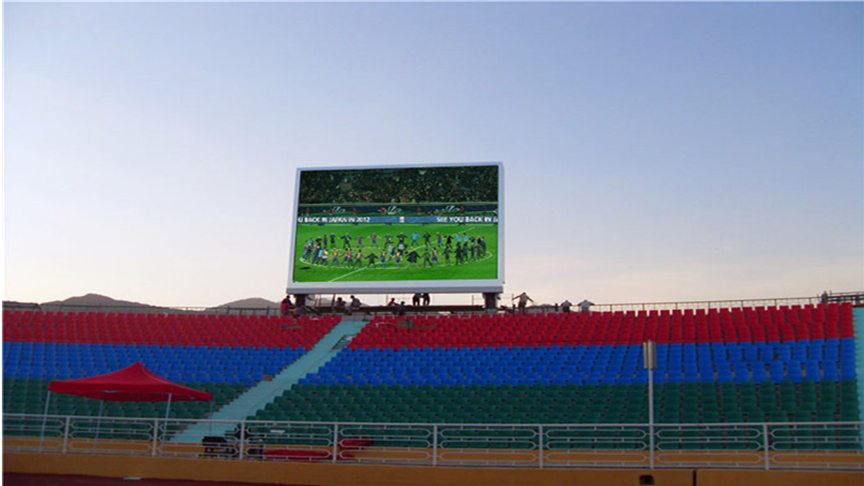

On the basis of its superior performance, unique design, the perimeter led screen can be used indoors and outdoors. It is always used in the stadium as: Perimeter Banner Screen; Score Board; Live Feed Video Screen.

Parâmetro

Item P6.6 P8 P10
Passo do pixel 6,67 mm 8mm 10mm
Tipo de LED NationStar SMD2727 NationStar SMD3535 NationStar SMD3535
Resolução do módulo 32dots × 32dots 32dots × 16dots / 40dots × 20dots 32dots × 16dots
Modo de direção 1/6scan 1/4scan / 1/5scan 1/2scan
Pixels do Módulo 1,024dots 512dots / 800dots 512dots
Tamanho do Módulo 192mm × 192mm 256mm × 128mm / 320mm × 160mm 320 mm × 160 mm
Tamanho do Gabinete 1,152mm × 768mm 1024mm × 768mm / 960mm × 960mm 960mm × 960mm
Resolução do Gabinete 192dots × 128dots 128dots × 96dots / 120dots × 120dots 96dots × 96dots
Densidade de pixels 27,777dots/㎡ 15,625dots/㎡ 10,000dots/㎡
Distância Mínima de Visualização ≥6m ≥8m ≥10m
Brilho 6,000nits~10,000nits 6,500nits~10,000nits 6,500nits~10,000nits
Classe IP IP67 IP67 IP67
Taxa de atualização 3,840Hz~7,680Hz 3,840Hz~7,680Hz 3,840Hz~7,680Hz
escala de cinza 16bits~24bits 16bits~24bits 16bits~24bits
Ângulo de visão H:160° / V:140° H:160° / V:140° H:160° / V:140°
Consumo máximo de energia 700W/㎡ 700W/㎡ 700W/㎡
Consumo médio de energia 265W/㎡ 265W/㎡ 265W/㎡
Tensão de entrada AC220V~AC110V @ 50Hz / 60Hz AC220V~AC110V @ 50Hz / 60Hz AC220V~AC110V @ 50Hz / 60Hz
Temperatura de operação ﹣40℃~65℃ ﹣40℃~65℃ ﹣40℃~65℃
Umidade Operacional 10%~90% 10%~90% 10%~90%
Material do Gabinete Aluminum profile Aluminum profile Aluminum profile
Peso do Armário 30kg/panel 30kg/panel 30kg/panel
Sistema operacional Windows (Win7, Win10, etc.) Windows (Win7, Win10, etc.) Windows (Win7, Win10, etc.)
Compatibilidade da fonte de sinal DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
