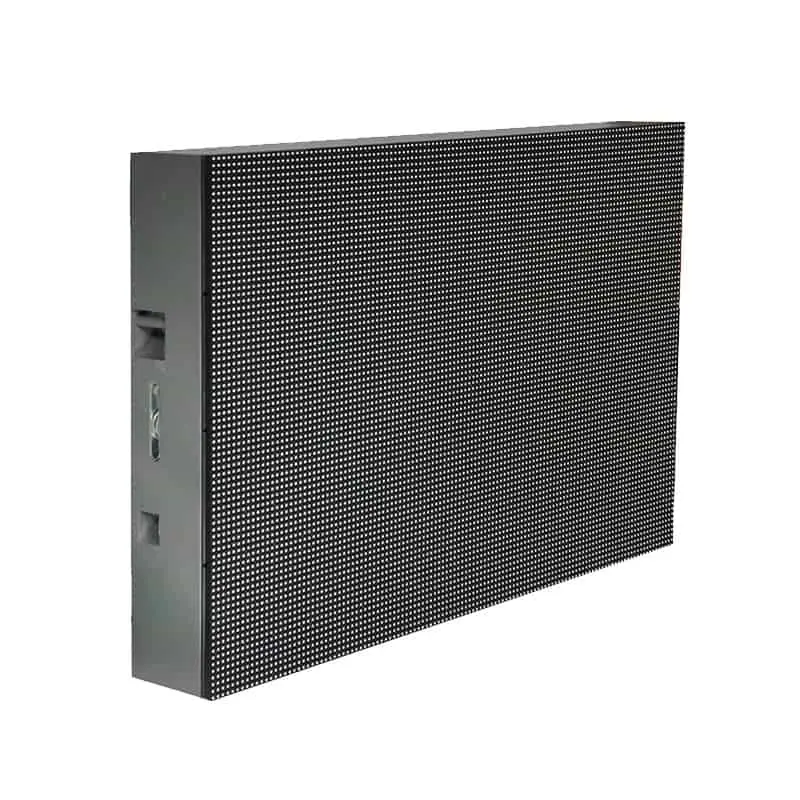

Outdoor LED Sign Board
Up to 9000 nits high brightness / water-proof / Energy saving
Outdoor LED Billboard / Outdoor LED Advertising Display Screen are outdoor permanent installation, with high brightness, IP65 water-proof as well as energy-saving options, they are perfect solutions for outdoor digital advertising.
Thanks to the user-friendly LED controller, video processor, it is easy to connect to PC & player to control the outdoor LED signs/LED screens and show any advertisements, videos, pictures.
6000-10,000 nits high brightness making the outdoor LED signs double sided / outdoor LED screen visible under direct sunshine during the day time
Big viewing angle
Anti ultra violet plastic materials
The outdoor LED Display signs / outdoor LED screen are with the IP65 outdoor rating for all kinds of application enviroment

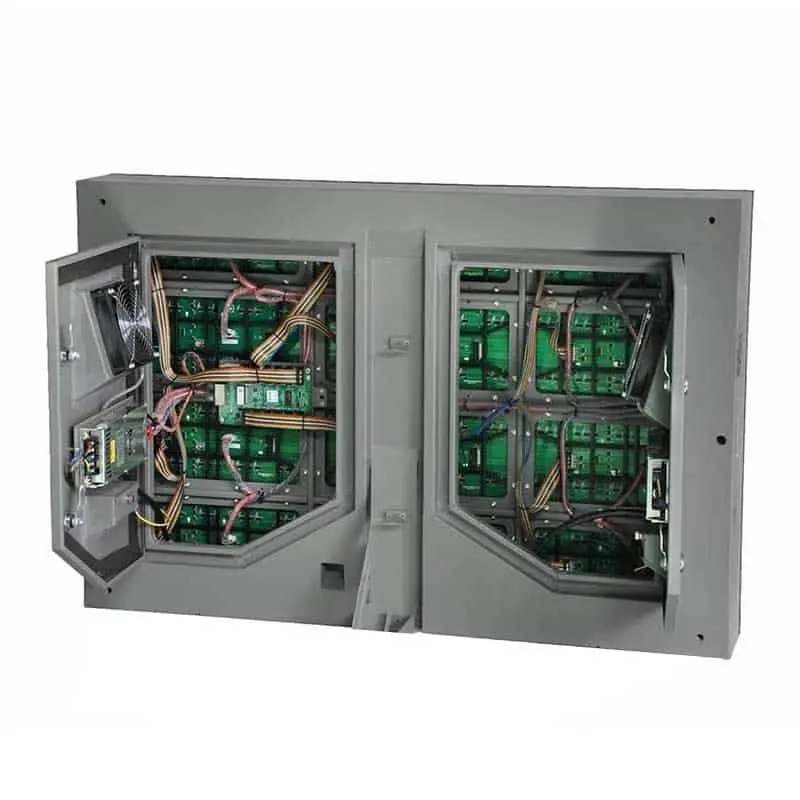

Optimized ventilation system with cooling fans and heat-resistant and insulation cables gurantee the reliability of years of operation
Meanwell power supplies available
Specification
| Pixel Pitch (mm) | 3mm | 4mm | 5mm | 6mm | 10mm |
|---|---|---|---|---|---|
| Pixel Matrix Per SQM | 111111 | 62500 | 40000 | 27777 | 10000 |
| Configuração de pixels | NationStar SMD 1921 | NationStar SMD 1921 | NationStar SMD 2727 | NationStar SMD 3535 | NationStar SMD 3535 |
| Brightness(nits) | ≥4500 | ≥4500 | ≥4500 | ≥5000 | ≥5000 |
| Scan | 1/32 | 1/8 | 1/8 | 1/8 | 1/4 |
| Power Con.(Max/Avg) | 1000/400 w /sq.m | 1000/400 w /sq.m | 900/350 w /sq.m | 900/350 w /sq.m | 800/300 w /sq.m |
| Modules Dimension(mm) | 7.56mm x 7.56mm | 10.08mm x 5.04mm | 12.6mm x 6.3mm | 7.56mm x 7.56mm | 12.6mm x 6.3mm |
| 192mm x 192mm | 256mm x 128mm | 320mm x 160mm | 192mm x 192mm | 320mm x 160mm | |
| Modules Solution | 64 x 64 | 64 x 32 | 32 x 32 | 64 x 64 | 32 x 16 |
| Cabinets Dimension | 22.6¡¯¡¯ x 22.6mm x 3.93mm | 21.15¡¯¡¯ x 21.15mm x 5.51mm | 37.8mm x 37.8mm x5.51mm | 37.8mm x 37.8mm x 5.51mm | 37.8mm x 37.8mm x 5.51mm |
| 576mm x 576mm x100mm | 512mm x 512mm x 140mm | 960mm x 960mm x 140mm | 960mm x 960mm x 140mm | 960mm x 960mm x 140mm | |
| Cabinets Solution | 192 x 192 | 128 x 128 | 192 x 192 | 160 x 160 | 96 x 96 |
| Cabinets Weight(kg) | 20kg/ 44.09lbs | 20kg/ 44.09lbs | 43kg/ 93.79lbs | 43kg/ 93.79lbs | 43kg/ 93.79 |
| Serivice Access | Rear | Front & Rear | |||
| Refresh Rate(HZ) | ≥3840 / ≥4200 | ||||
| Grey Scale(bit) | 16 | ||||
| Viewing Angle(H/V) | 160°/160° | ||||
| IP Rate | IP65 / IP54 | ||||
| Input Voltage(AC) | 110V / 240V 50/60 HZ | ||||
| Temperatura de operação | -40° ~ 60 ° | ||||
| Lifespan(hrs) | >100,000(hrs) |
