3D IP68 Waterproof Outdoor LED Display 1000x1000 Front Service LED Screen P2.9 P3.9 P4.8 P5.2 P6.25 P7.8 P10.4

Amazing 3D LED Wall Outdoor LED Display Screen-P3.9, P4.8, P6.2, P7.8, P10.4

Lightweight
High stability
Cable Free
Cost-effective
10000nits
50% Energy Saved
Aluminium Cabinet Case
IP68

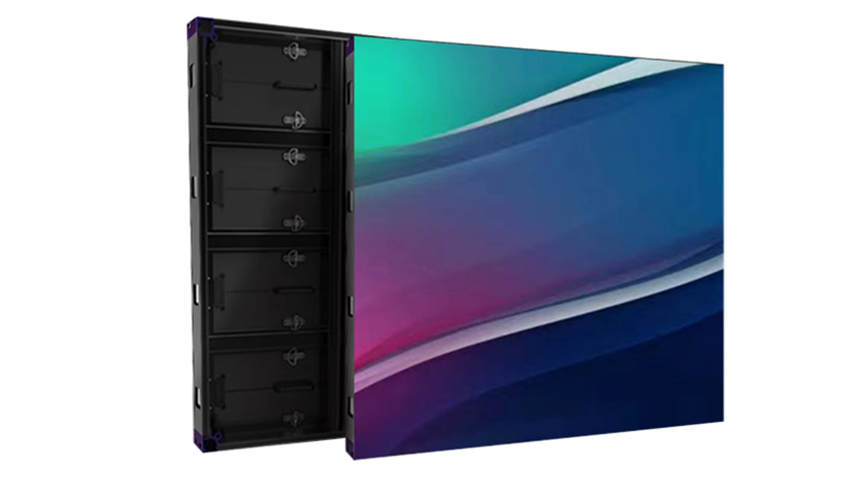

3D Outdoor Advertising LED Display Screen Front Service Slim and lightweight design

The aluminum cabinet is designed to be 23kgs lighter than conventional cabinets in the market. Lighter cabinets provide more convenience for installation. 1m by 1m panel size can be easily assembled into big screen of different dimensions. In order to fit some special screen areas, we can also make 1m x 0.5m panel size. 1000(w)mm x 1000(h)mm or 1000(w)mm x 500mm(h). 60mm thickness. 23kgs weight.The pixel pitch P3.9, P4.8, P6.2, P7.8 and P10.4 are available.

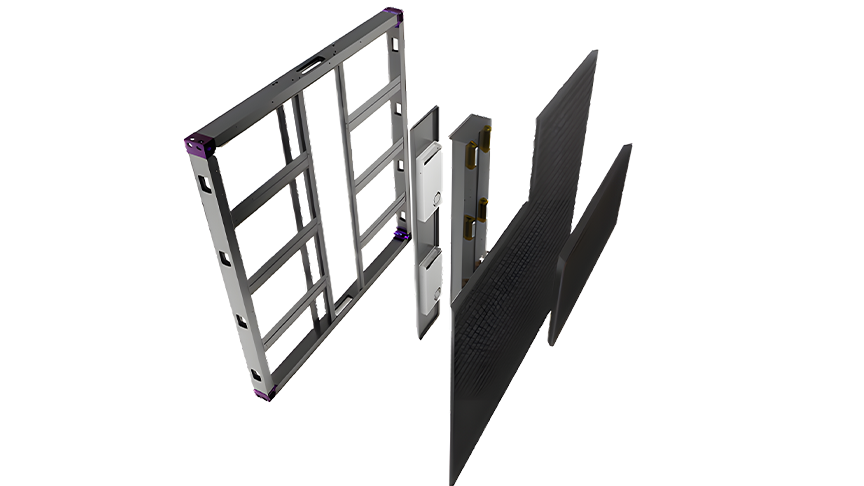

IP68 Outdoor 3D LED Screen Fast front and rear access

Front access design is more convenient for installation. The concise structure and light weight are designed to reduce the pressure of construction and transportation. The modules, power supply, receiving card, and other components can be disassembled from the front, which is convenient for the maintainer to maintain the LED screen.At the same time, traditional rear maintenance is also supported. You could choose anyone according to the actual situation.

Outdoor IP68 Naked Eye 3D LED Display Good heat dissipation

All aluminum material is more durable and highly stable than traditional steel one. Meanwhile, heat dissipation of aluminum is much better than others in the market. As the electronic components can be cooled down quickly, their lifespan will be longer.

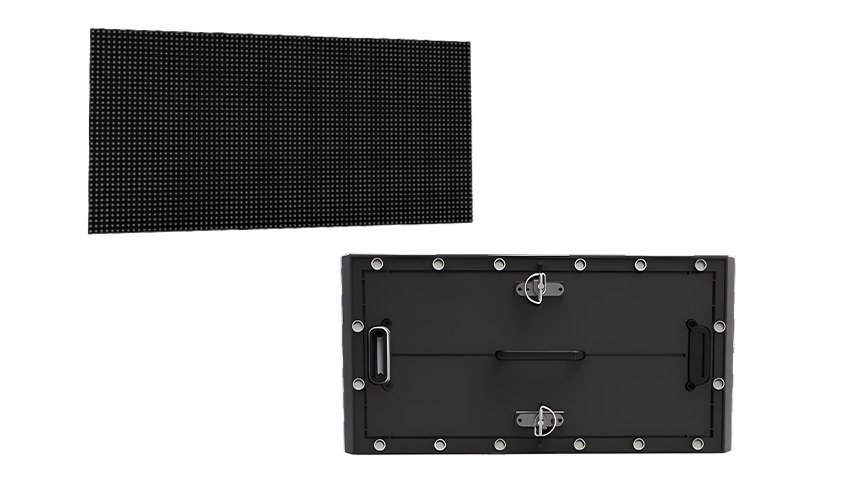

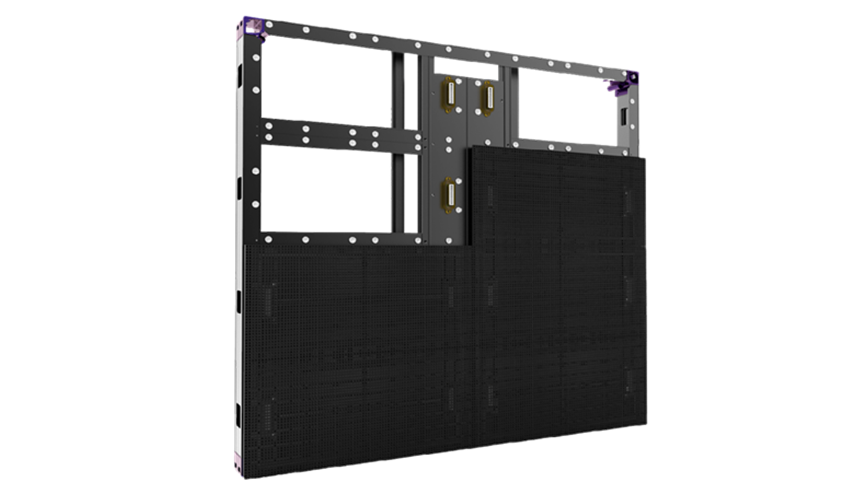

Outdoor 3D LED Digital Billboard Display Screen for Advertising Cable free module with dual pin

This design doesn’t require the ribbon cable, so the signal connection of the modules is much better than common designs in the market. What’s more, we use signal pin dual sockets which is not only easy to replace modules, but also increase module usage.

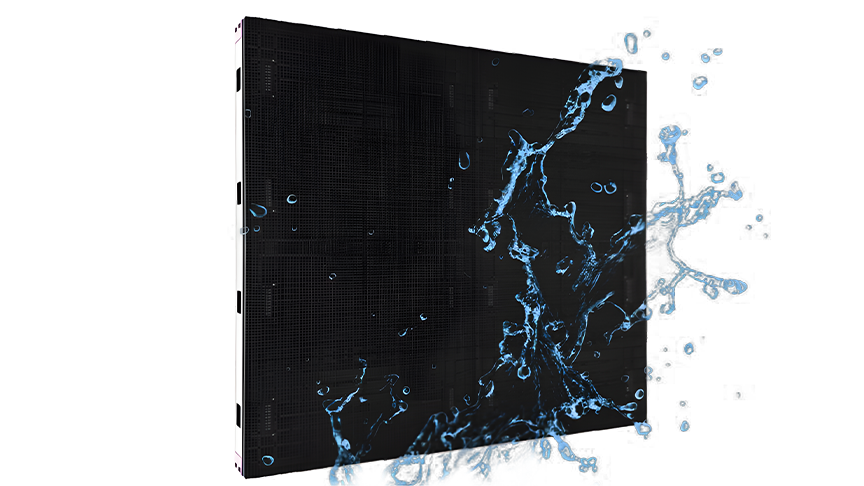

3D LED Display | 3D Effect LED Screen Protective Method: IP 68

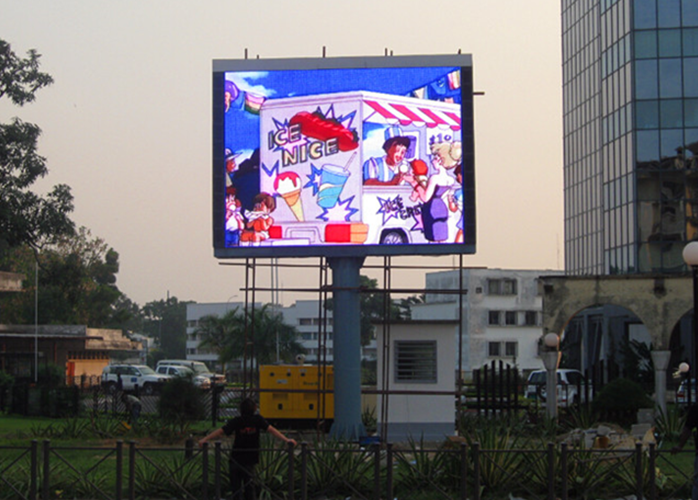

The LED screen in outdoor scenes will face more challenges than the indoor ones such as the damage of dust and water. To make the LED screen function safely and stably in outdoor scenes, we adopt advanced protective methods to withstand heavy rain and strong winds. The IP68 design can isolate electronic parts from humidity and dust, so the screen is more reliable.

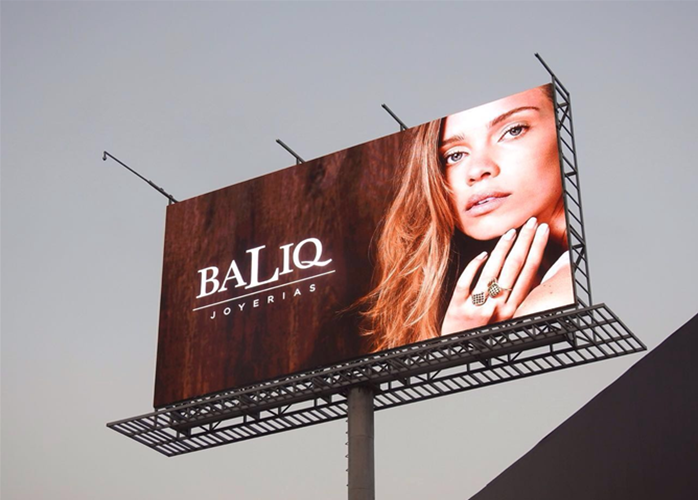

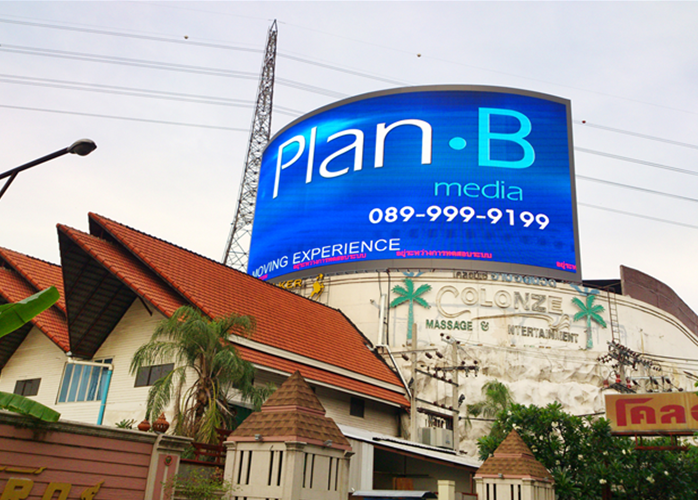

3D LED billboards and OOH advertising amazing Trends Hight Brightness up to 10,000nits

To display clearly what is on the LED screen in outdoor scenes, we adopt the new methods of superior PCB design and LED chip to make brightness reach more than 10000nits. With the ultra-high brightness, refresh rate and gray scale, the visual performance of the screen is unexceptionable.

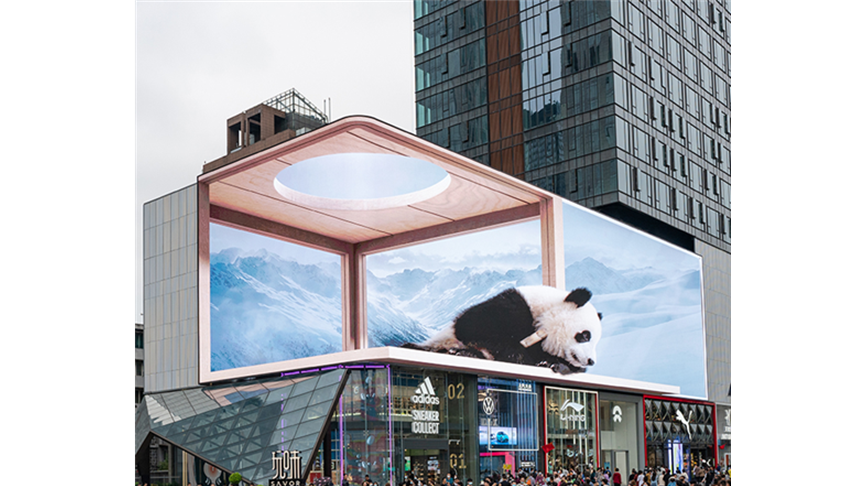

3D Digital LED Screen Billboards Support 3D Technology

Thanks for the high precise CNC cabinet production, our FA1 Max Series supports innovative 3D technology by offering the gapless cabinet splicing in the corner. At the same time, super light weight reduces the pressure of building structure. High quality screen keeps helping the realization of new technology and shines the public.
Create 3D Advertising Experiences On LED Display & LED Video To fit every different scene, our products utilize superior materials with a concise and strong structure, and various installation methods make it flexible and easy to apply. 3D LED Display Screen, Create Internet-famous 3D LED Video Wall. This product is usually used in:Truck Trailers; Scoreboards; Digital Out Of Home(DOOH).

Parameter

ItemP3.9P4.8P6.2
Pixel Pitch3.90625mm4.8076mm6.25mm
LED TypeSMD1921SMD1921SMD2727
Module Resolution128dots × 64dots104dots × 52dots80dots x 40dots
Driving Mode1/16scan or 1/8scan1/13scan or 1/7scan1/5scan
Module Pixels8192dots5408dots3200dots
Module Size500mm x 250mm500mm x 250mm500mm x 250mm
Cabinet Size1000x1000mm/1000x500mm1000x1000mm/1000x500mm1000x1000mm/1000x500mm
Cabinet Resolution256dots x 256dots208dots x 208dots160dots x 160dots
Pixel Density65,410dots/m²43,222dots/m²25,600dots/m²
Minimum Viewing Distance≥3.9 m≥4.8 m≥6.2 m
Brightness6,500nits~10,000nits6,500nits~10,000nits6,500nits~10,000nits
IP GradeIP68IP68IP68
Refresh Rate1,920Hz~3,840Hz1,920Hz~3,840Hz1,920Hz~3,840Hz
Gray Scale13bits~24bits13bits~24bits13bits~24bits
Viewing AngleH:160° / V:160°H:160° / V:160°H:160° / V:160°
Maximum Power Consumption550W/m²550W/m²550W/m²
Average Power Consumption150W/m²150W/m²150W/m²
Input VoltageAC110V – AC220V @ 50Hz/60HzAC110V – AC220V @ 50Hz/60HzAC110V – AC220V @ 50Hz/60Hz
Operating Temperature﹣20℃~60℃﹣20℃~60℃﹣20℃~60℃
Operating Humidity10%~90%10%~90%10%~90%
Cabinet MaterialAluminumAluminumAluminum
Cabinet Weight23kg/sqm23kg/sqm23kg/sqm
Operating SystemWindows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)
Signal Source CompatibilityDVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
