400X300mm Fine Pixel LED Display Screen

400×300 Small Pixel LED Display P1.667 P1.875 P1.92mm 4 : 3 Cabinet Size Design with 400*300mm dimension, high flatness, easy to install and disassemble, High difinition quality in an HD LED display

4:3 HD LED Display

It delivers a truly amazing picture in every details with extrodinary pixels producing an image that is High difinition quality in an HD LED display. 16bits gray processing technology, with 65536 grayscale, excessive nature, according to the video picture of extremely fine texture, looked more comfortable.

Ultra HD Perfect Picture Quality

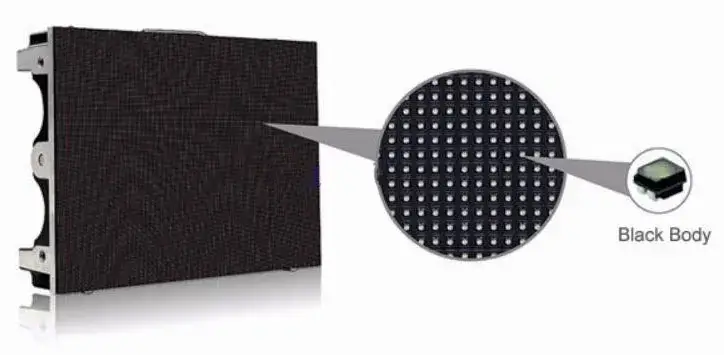

P1.92 Ultra HD Front Service Led Screen Die Casting 400x300mm. High quality LED lamp with black body structure and black lamp mask to provide 3000:1 contrast and clearer and more bright-colored image

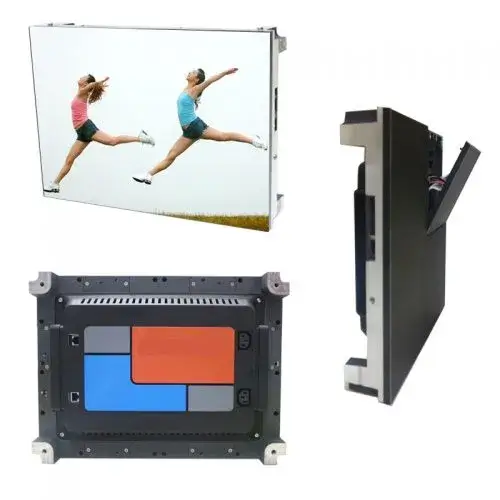

4 : 3 Cabinet Size Design

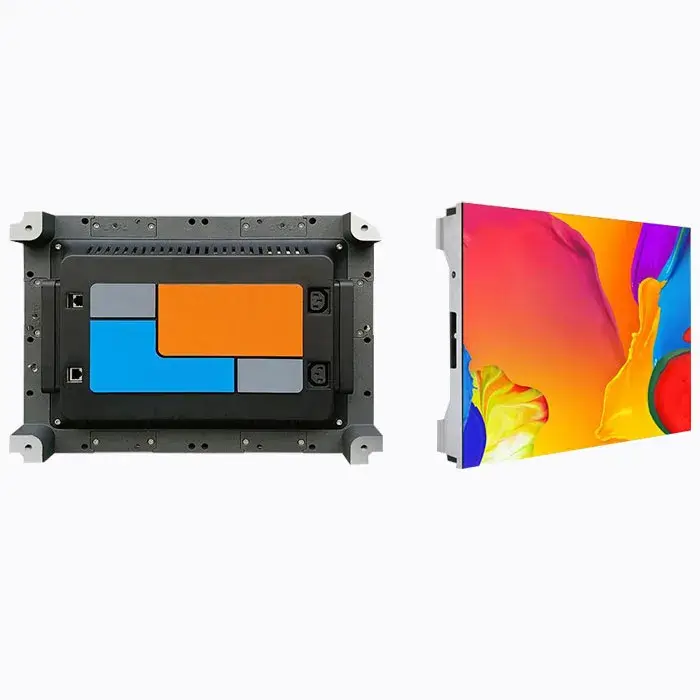

400×300 Small Pixel LED Display P1.667 4:3 design HD LED display. Cabinet’s 4:3 resolution is specialized for command center. Perfect replacement for LCD display. Die cast aluminum cabinet, guarantee you a flat and seamless screen.
Good uniformity. Dot-to-dot correction technology provide you pure image with great gradation.

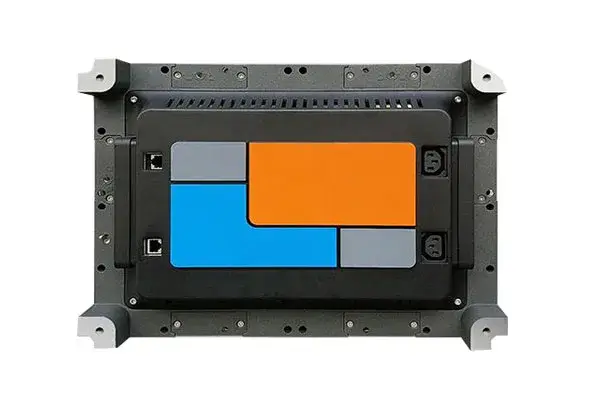

Frontal Service Cabinet Design

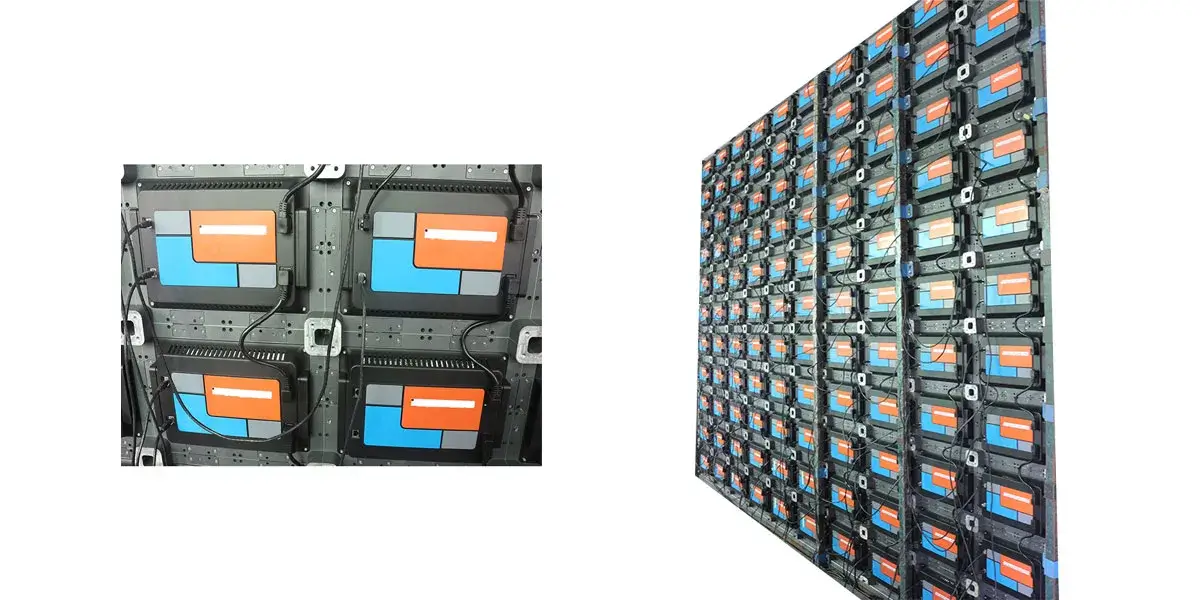

Seamless splicing design with fast locks and simplicity internal wiring, which perfectly realizes the splicing of the cabinet.
the LED display has no gaps and the LED screen is ultra high flatness.

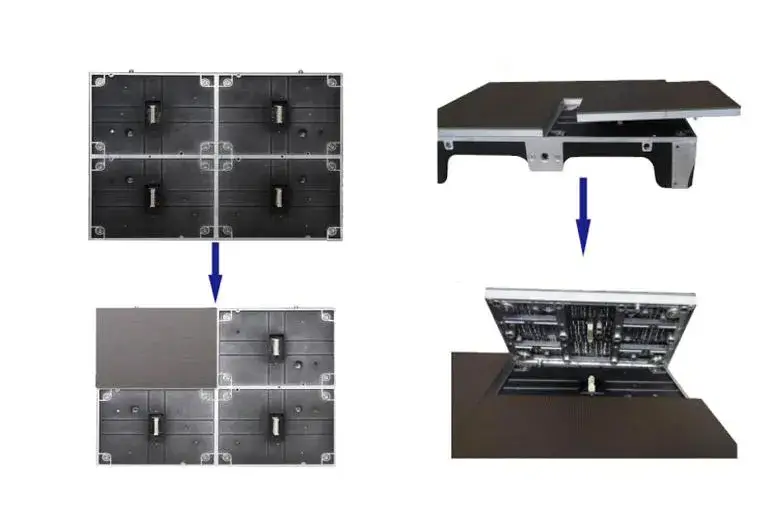

Seamless splicing, Assemble screen freely

Patented connecting piece, and hang pin rotating at 120 degree to lock the case, and gap adjustable to ensure the seamless screen, and rapid installation and removal supported. Only 1/4 of installation time compares with traditional structure.

N43 HD Series LED Display

Pixel Pitch1.25mm1.56mm1.667mm1.923mm2.5mm
ApplicationIndoorIndoorIndoorIndoorIndoor
Pixel Density640000409600360000270400160000
Pixel ConfigurationSMD1010SMD1010SMD1010SMD1010SMD1010
MAX Power Con680w/Sq.m640w/Sq.m620w/Sq.m600w/Sq.m580w/Sq.m
AVG Power Con350w/sq.m320w/sq.m320w/sq.m300w/sq.m280w/sq.m260w/sq.m
Module Dimension200x150mm200x150mm200x150mm200x150mm200x150mm
Module Resolution160×120 dots128×96 dots120×90 dots104×78 dots80×60 dots
Cabinet Dimension400x300x77mm
Cabinet Resolution320×240 dots256×192 dots240×180 dots208x156dots160x120dots
Cabinet Weight5.85kg
Service AccessFront
Rotation Angle-10° and +10°
Brightness (nits)≥1000
Refresh Rate (HZ)3840
Grey Scale (bit)16
Viewing Angle (H/V)160 / 160
IP RateIP54
Input Voltage (AC)110 / 240V
Products

P1.56

128×96 dots/module
256×192 dots/cabinet
400*300mm Cabinet

P1.667

120×90 dots/module
240×180 dots/cabinet
400*300mm Cabinet

P2

100×75 dots/module
200×150 dots/cabinet
400*300mm Cabinet

P3.07

80×60 dots/module
160×120 dots/cabinet
400*300mm Cabinet
