500x1000 PRO Series Rental LED Screen Outdoor P1.9 P2.5 P2.6 P2.9 P3.9 P4.8 P5.9

Curve Outdoor Rental LED Display P1.9 P2.5 P2.6 P2.9 P3.9 P4.8 P5.9

Great Cabinet Design
Flexible Installation
More Creativity
IP65
High Quality Material
High Quality PCB
High Brightness
Stunning Vision

Curve Rental Led Display Outdoor P3.91 Led 500×1000 Display Screens Cabinets Great Cabinet Design

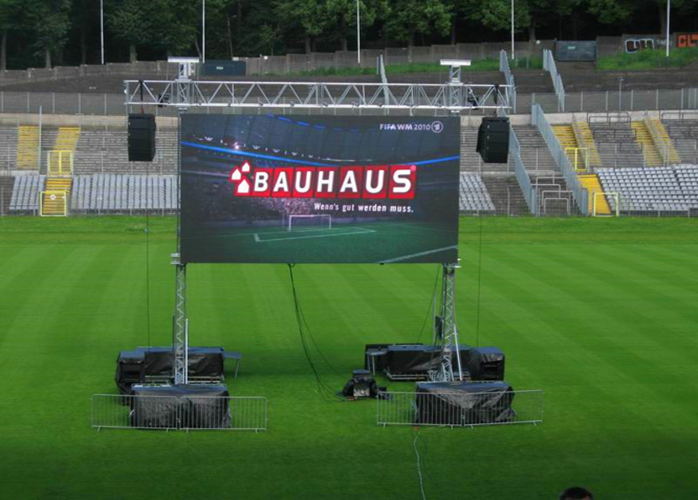

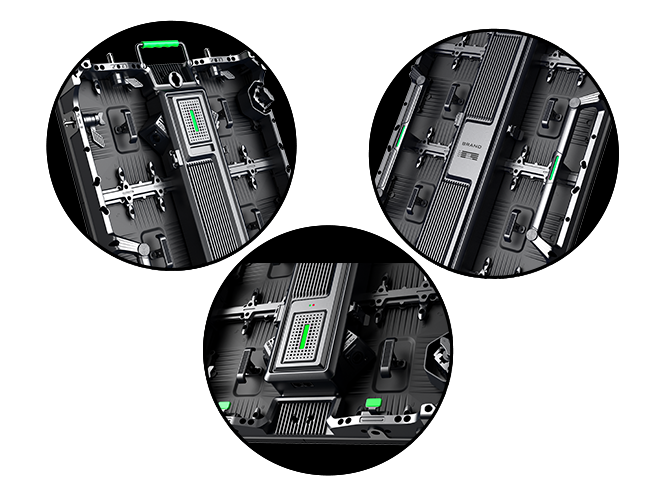

Outdoor rental LED screen aims at different kinds of outdoor events. The pixel pitches are P3.9, P4.8, and P5.9. Multiple ways of protection effectively protect the LED module from damage. Fast locks for tighter assemble with no gap. Anti-collision pin corners of the cabinet protect the module and led lamps. Aluminum makes the cabinet waterproof for outdoor applications.

Portable Waterproof Church Rental 500×1000 led Panel Outdoor Indoor P2.976mm led Display Screen Strong Cabinet, High Quality PCB

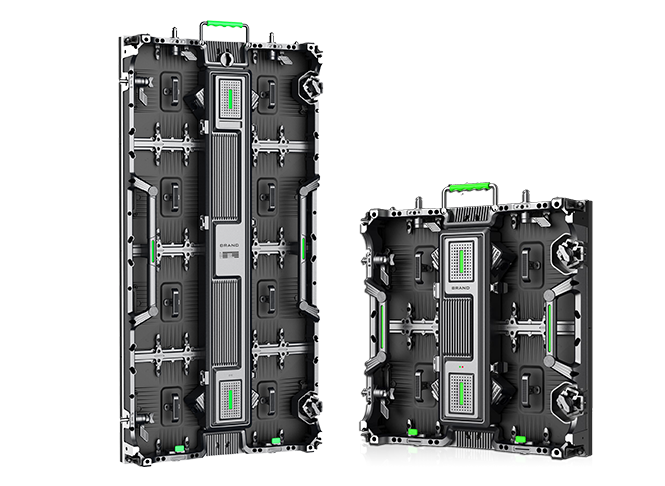

The cabinet material is aluminum, which is stronger than regular steel material. Meanwhile, the cabinet is lighter than the steel cabinet, so installation and transportation are easier. Moreover, we have utilized the high quality PCB in the LED modules. Therefore, the LED screen works more stably than similar outdoor rental products from other factories. There are two choices for the cabinet: 500 x 500mm and 500 x 1,000mm.

P2.6 Curved Rental indoor & Outdoor Led Screen P2.98 Flexible Installation

To meet the requirements of customers in different application scenarios, 2 cabinet sizes are available. The weight of the cabinet is 7.5kgs for 500mm x 500mm cabinet and 12.5kgs for 500mm x 1,000mm cabinet, which makes installation flexible during the event.

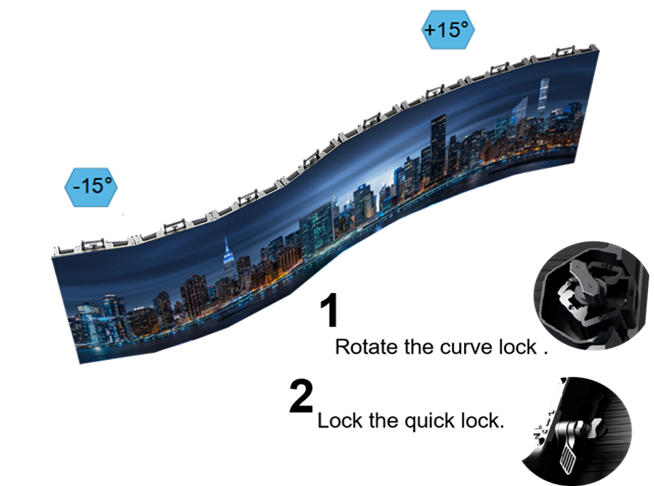

P4.81 Outdoor Rental LED Display 500×1000 cabinet More Angles, More Creativity

The LED screen can be any shape, for example, round shape, flat shape, which enables more possibilities of your stage design.

P2.98 Outdoor 500X1000 Rental LED Display Panel High Brightness

The brightness of the outdoor display is 4,500nits ~ 6,000nits, which enables the screen to have very good clarity in direct sunlight. Meanwhile, the cabinet also has very good heat dissipation, so the performance of the LED video display is very reliable.

P3.91 Outdoor Rental LED Display 500x1000mm IP65 – Safe and Reliable

LED big screen adopts the automatic glue filling machine process, so it will effectively protect it from water and dust. High IP Rating (IP65) ensures great outputs in every condition.

500X1000 Diamond Series Outdoor Rental LED Display Stunning Vision

With high quality material and great design, the screen looks extraordinary. Meanwhile, black outdoor LED technology is optional, and the outdoor rental LED screen stands out with peerless visual performance.

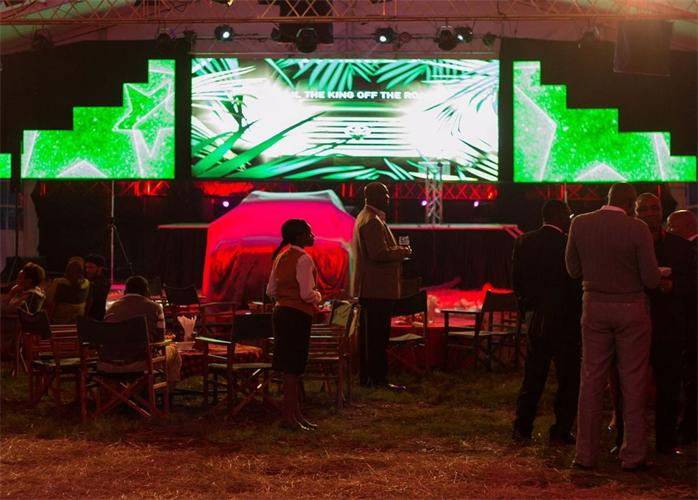

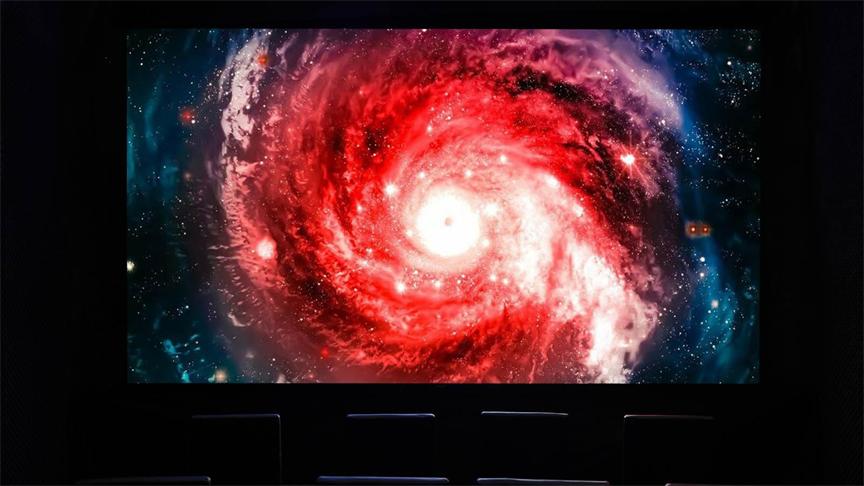

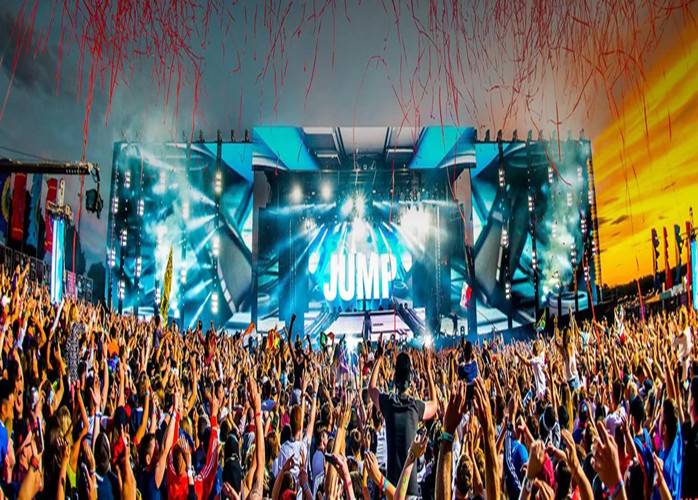

To fit every different scene, the outdoor full color LED display is made up of superior quality materials with the concise and strong cabinet. This product is usually used in: Cinemas; Stages; Advertisements.

Parameter

ItemP3.9P4.8P5.9
Pixel Pitch3.906mm4.807mm5.952mm
LED TypeSMD1921SMD1921SMD2727
Module Resolution64dots × 64dots52dots × 52dots42dots × 42dots
Driving Mode1/16scan1/13scan1/7scan
Module Pixels4,096dots2,704dots1,764dots
Module Size250mm × 250mm250mm × 250mm250mm × 250mm
Cabinet Size500mm × 500mm or 500mm × 1,000mm500mm × 500mm or 500mm × 1,000mm500mm × 500mm or 500mm × 1,000mm
Cabinet Resolution128dots × 128dots or 128dots × 256dots104dots × 104dots or 104dots × 208dots84dots × 84dots or 84dots × 168dots
Pixel Density65,536dots/㎡43,264dots/㎡28,224dots/㎡
Minimum Viewing Distance≥3.9 m≥4.8 m≥5.9m
Brightness≥4,500nits≥4,500nits≥4,500nits
IP GradeIP65IP65IP65
Refresh Rate1,920Hz~3,840Hz1,920Hz~3,840Hz1,920Hz~3,840Hz
Gray Scale13bits~24bits13bits~24bits13bits~24bits
Viewing AngleH:160° / V:160°H:160° / V:160°H:160° / V:160°
Maximum Power Consumption800W/㎡800W/㎡800W/㎡
Average Power Consumption230W/㎡230W/㎡230W/㎡
Input VoltageAC220V~AC110V @ 50Hz / 60HzAC220V~AC110V @ 50Hz / 60HzAC220V~AC110V @ 50Hz / 60Hz
Operating Temperature﹣20℃~65℃﹣20℃~65℃﹣20℃~65℃
Operating Humidity10%~90%10%~90%10%~90%
Cabinet MaterialAluminumAluminumAluminum
Cabinet Weight7.5kg/panel or 12.5kg/panel7.5kg/panel or 12.5kg/panel7.5kg/panel or 12.5kg/panel
Operating SystemWindows (Win7,Win8,etc.)Windows (Win7,Win8,etc.)Windows (Win7,Win8,etc.)
Signal Source CompatibilityDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
