600x337.5 GOB LED Screen HD

600x337.5 GOB LED Screen HD LED Display hiLUX Pro Series

Full HD,GOB fine pitch | Indoor LED video wall 600×337.5

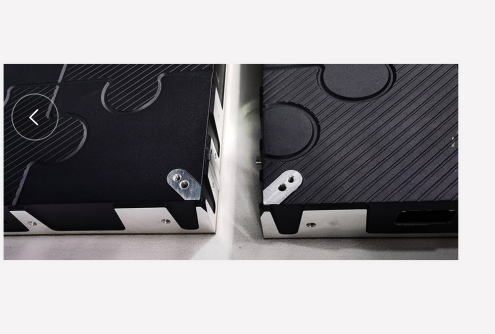

Design & Maintenance

600×337.5 Series Fine Led Screen Slim cabinet,weight 5.5kgs,depth:58mm

Standard 16:9 ratio cabinet

Cableless ,integrated plugin connection stability

Built-in power box

Complete front maintenance

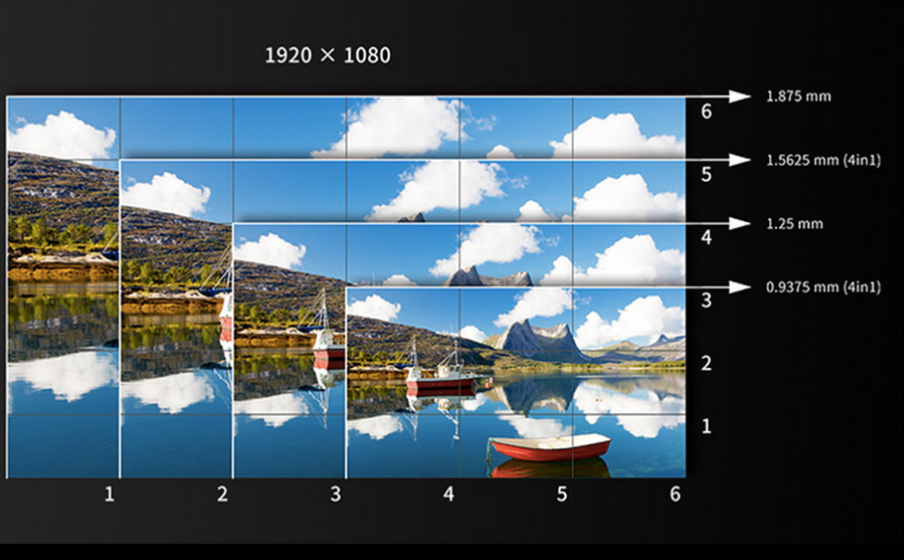

16:9 Ratio Splicing

16:9 Golden Ratio LED Display with 600×337.5mm size, this product will be targeting small pixel LED display market

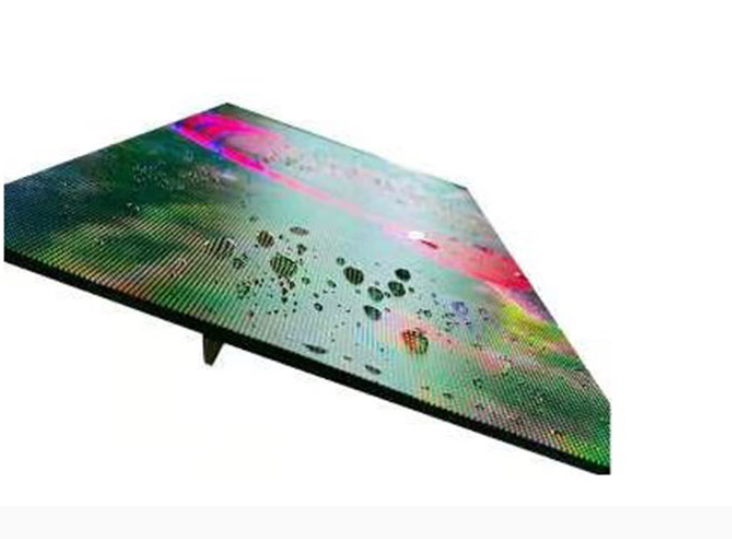

GOB Technology,High Protection

Waterproof, dust-proof Anti-crash High contrast,increase 20% contrast

HDR

600X337.5 Indoor 4K LED Display P1.25 Pixel Pitch Support HDR high dynamic range image technology

True visual color rendition

hiLux Pro Application

hiLUX Pro Application

Support HDR high dynamic range image technology

True visual color rendition

hiLux Pro Application

Pixel pitch (mm)0.971.251.561.875
ModelLP0.9-600337LP1.2-600337LP1.5-600337LP1.8-600337
LEDSMD4in1SMD1010SMD1212SMD1212
Density (dots/sqm)1062812640000410914284444
Module resolution (dots)53566322562071014336
Module width (mm)300300300300
Module height (mm)168168168168
Cabinet width (mm)600600600600
Cabinet height (mm)337337337337
Cabinet depth58585858
Resolution (dots)2149011294088308757515
Weight (kg)5555
Materialaluminiumaluminiumaluminiumaluminium
MaintainFrontFrontFrontFront
IPXIP43IP43IP43IP43
Max brightness (cd/sqm)800800800800
Color temperature (k)6500650065006500
Angle140/140140/140140/140140/140
Contrast ratio5000:01:005000:01:005000:01:005000:01:00
Max power (w)808080120
Average power (w)50505060
Voltage typeACACACAC
Voltage (v)110-220110-220110-220110-220
Driving method1/451/451/361/32
Screen FPS (hz)60606060
