Flexible LED screen

A creative Flexible LED Screen Display Soft LED Video Curtain can be bended

The flexible LED screen / flexible LED display utilizes soft PCB with high flexibility which can be bended to creatve concave and convex curve shapes.

ultra-thin Flexible LED Screen can be bended

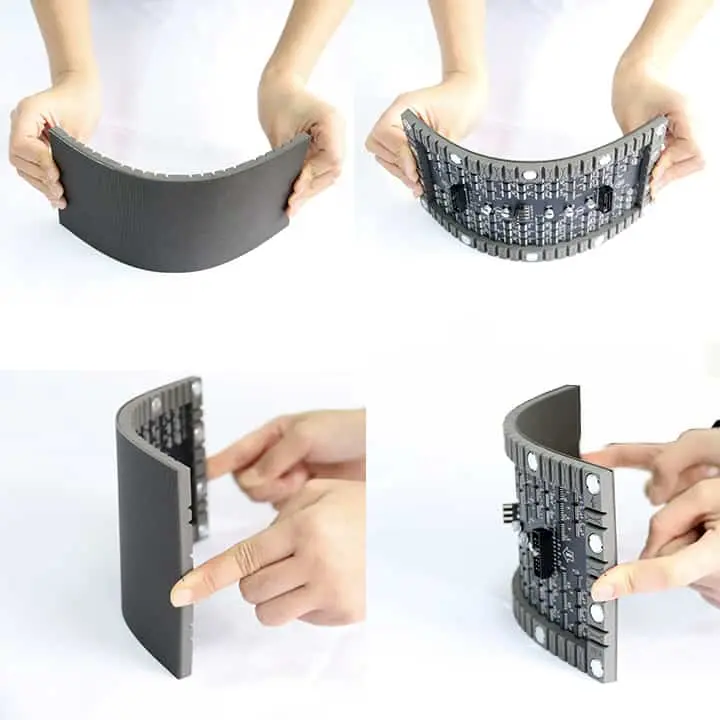

Flexible LED Panel Video Screen module is specially designed with soft PCB and rubber plastic parts which can be bend concave and convex without affecting the the normal working of the LED diode board.

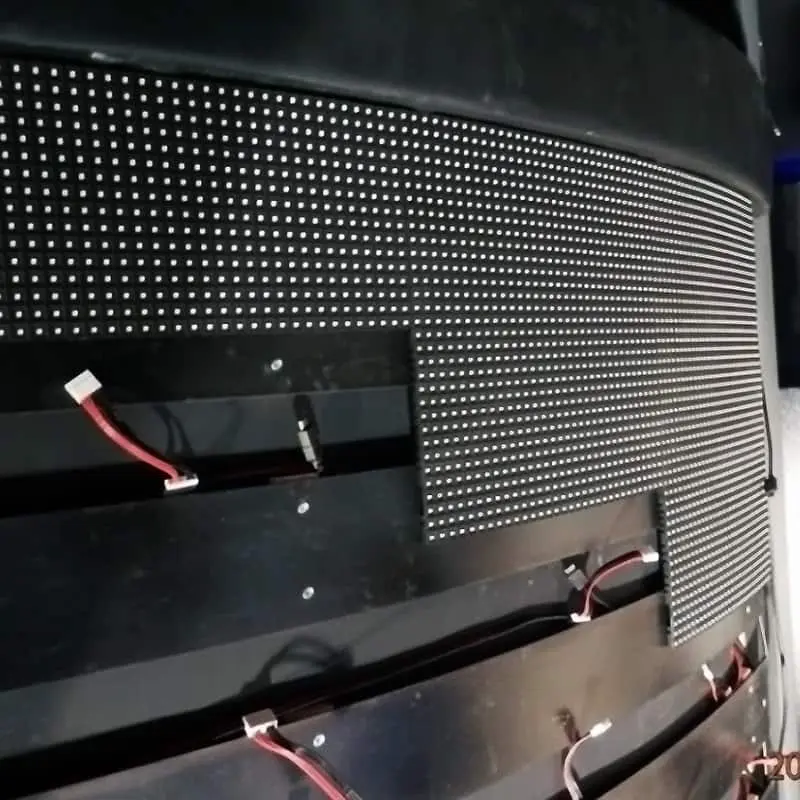

With the strong magnets, flexible LED display modules can be easily anywhere to form different creative shapes of LED display such as Soft Flexible LED Screen Wall, Soft LED column, curve LED display, concave and convex. The installation and maintenance can be done from the front.

Specification

Pixel pitch£(mm)2.5mm indoor3 mm indoor4 mm indoor6mm indoor
Pixel Matrix Per SQM1600001111116250027777
Pixel ConfigurationSMD2020SMD2020SMD2020SMD3528
Brightness(nits)80090010001000
Scan1/321/321/161/16
Power Con.(Max/Avg)200W/sqm(Avg)600W/sqm(Max)
Modules Dimension6.3mmx 6.3mm7.56mmx 7.56mm10.08mmx 5.04mm7.56mmx 7.56mm
160mm x 160mm192mm x 192mm256mm x 128mm192mm x 192mm
Modules Solution64x6464x6464x3232x32
Modules Weight0.15 kg /0.33 lbs0.16 kg /0.35 lbs0.14 Kg /0.31 lbs0.15 kg /0.33 lbs
Serivice AccessFront
Refresh Rate(HZ)1920
Grey Scale(bit)16
Viewing Angle(H/V)160°/160°
IP RateIP31 / IP31
Input Voltage(AC)110V / 240V, 50/60 HZ
Operating Temperature-20° ~ 60 °
Lifespan(hrs)>100,000(hrs)
