Outdoor IP68 Waterproof Front Service LED Display Module 480×320 Dual Service LED Screen Panel 960mmx960mm

Lightweight
Fanless design
Cable Free
1920Hz~3840Hz
10000nits
50% Energy Saved
Aluminium Module Case
IP68

P5 DOOH IP68 Outdoor Front Access LED Display 960X960 Cable free backside

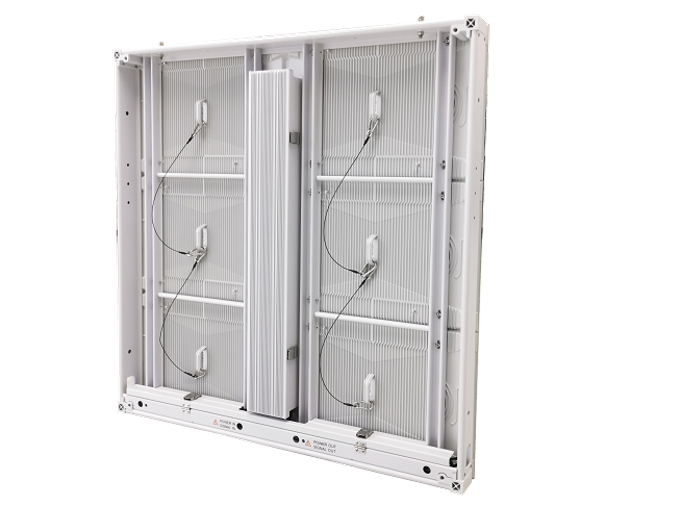

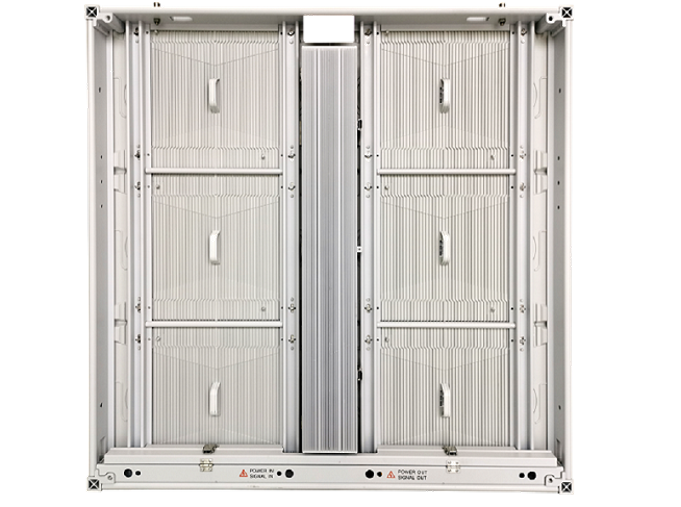

All cables are hidden at the bottom of the cabinet and there are no flat cables in the modules. This design makes the appearance and feeling clean, and also avoids the bad contact caused by accidents. The pixel pitch P2.9, P3.9, P4.8, P6.67, P8 and P10 are available.

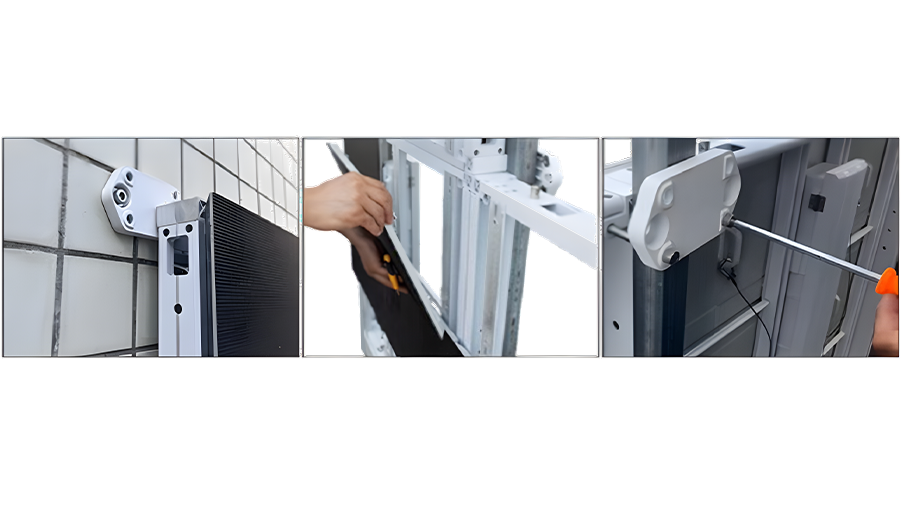

P5.7 Front service/access IP68 led billboard display Easy-installing front maintenance outdoor led module 960X960 Fully Front Access: Lighter and Easier

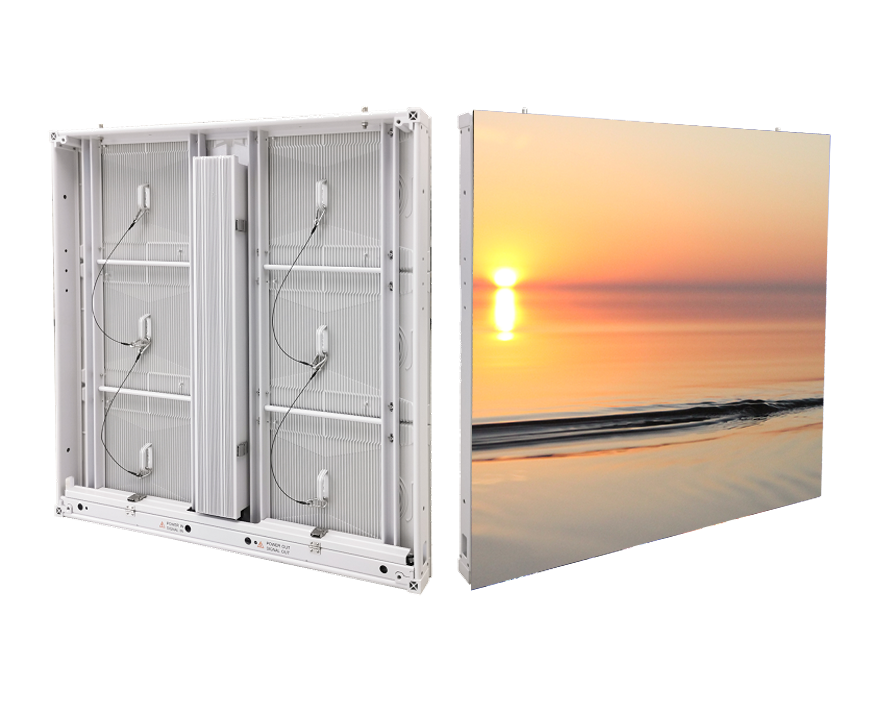

The concise structure and light weight are designed to reduce the pressure of constructions and transportation. The modules, power supply, receiving card, and other components can be removed in the front, which is convenient for the maintainer to maintain the LED screen. Single cabinet is: 28kgs Weight 110mm Thickness

P6.67 Outdoor 3D Advertising LED display IP68 energy saving front access High brightness 10000 nits Fanless Design, Better Heat Dissipation

Aluminium module casing accelerates heat dissipation, and light gray color can reflect the sunlight to reduce heat generation. Therefore, the LED screen can work properly without air conditioner even when the weather temperature is as high as 55 degrees. Meanwhile, fanless design enable the screen to work more reliable in dusty environment such as roadside and high humidity places such as seashore.

P8 IP68 Waterproof P8 Front Access Outdoor LED Display for Commerical Advertising 960X960 More Than 10000nits, Ultimate Visual Performance

To display clearly what is on the screen in outdoor scenes, we adopt the new methods of superior PCB design and LED chip to make brightness reach more than 10000nits. With the ultra-high brightness, refresh rate and gray scale, the visual performance of the screen is unexceptionable.

P10 IP68 Front Service Rental LED Display 960X960 Extremely Protective Methods: IP 68

The LED screen in outdoor scenes will face more challenges than the indoor ones such as the damage of dust and water. To make the LED screen function safely and stably in outdoor scenes, we adopt the advanced protective methods to withstand heavy rain and strong winds. We also utilize the excellent physical design to reduce the energy cost. IP68 50% Energy Saved

P5.33 Quality Front Access LED Outdoor Advertising Screens 960X960 With IP68 Waterproof Rating for sale 45° cutting Angle design

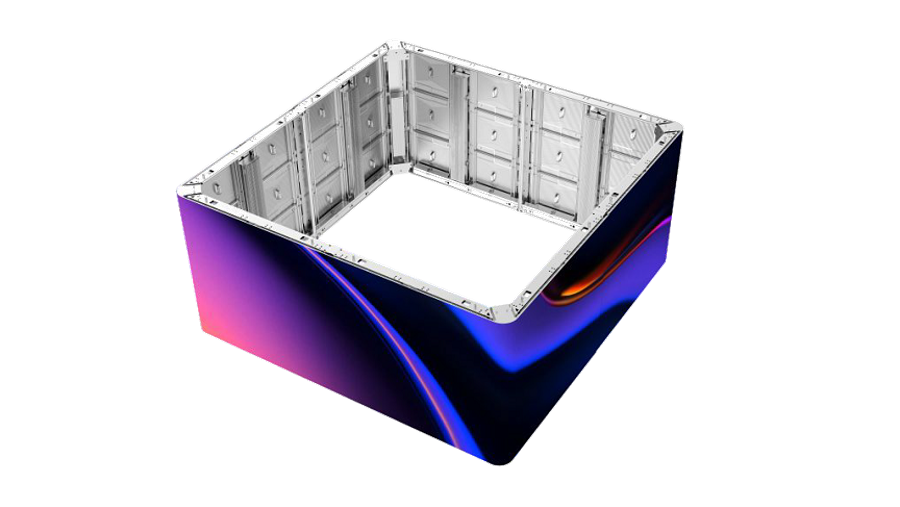

With 45° cutting angle design, the LeemanDisplay Pro LED display cabinets can be assembled at seamless 90˚ angles, so in addition to passive visualizations, the screen also can be used for 3D visual effect or a rectangle wall. With friendly design of the shell structure, it brings a strong three-dimensional visual impact.

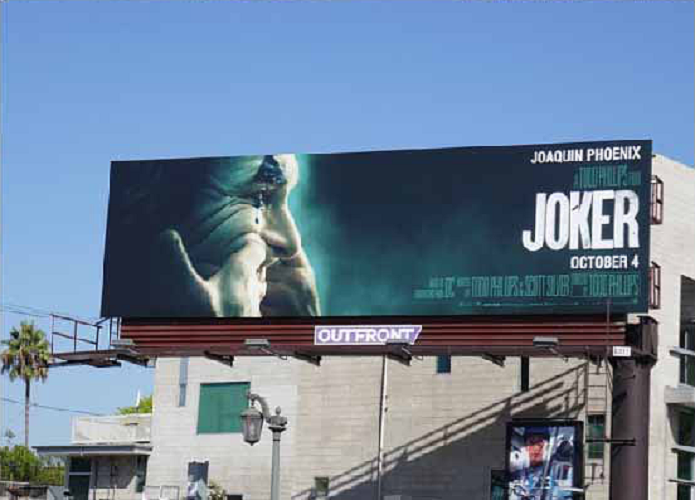

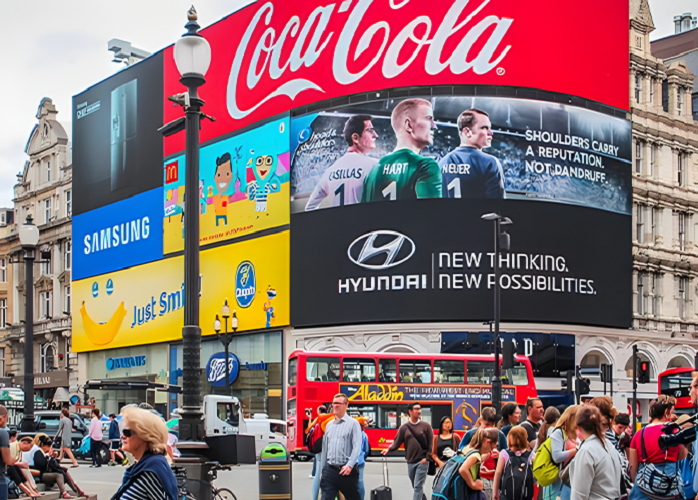

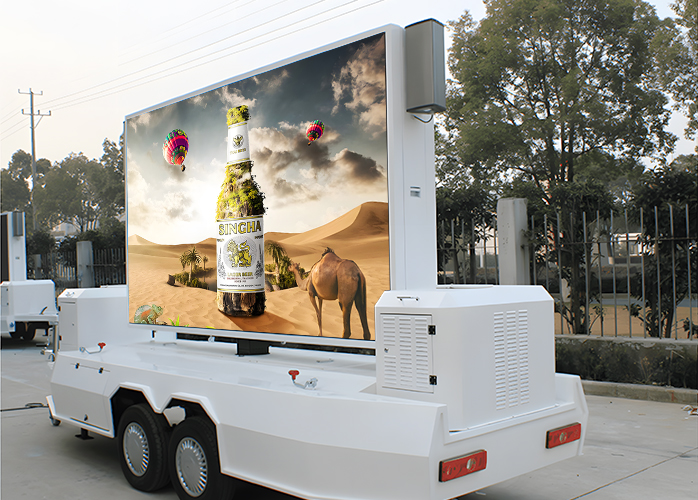

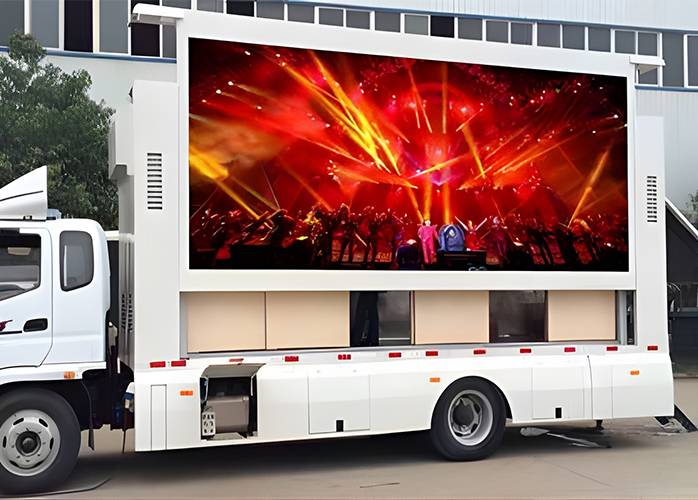

To fit every different scene, our products utilize superior materials with the concise and strong structure, and various installation methods make it flexible and easy to apply. This product is usually used in. Truck Trailers; Scoreboards; Digital Out Of Home(DOOH).

Parameter

ItemP2.9P3.9P4.8P6.67
Pixel Pitch2.97mm3.91mm4.8mm6.67mm
LED TypeSMD1921SMD1921SMD1921SMD2727
Module Resolution84dots x 84dots128dots x 64dots108dots x 52dots72dots x 48dots
Driving Mode1/14scan1/8scan or 1/14scan1/7scan1/6scan or 1/4scan
Module Pixels7056dots8192dots5616dots3456dots
Module Size250mm x 250mm500mm x 250mm500mm x 250mm480mm x 320mm
Cabinet Size500mm x500mm500mm x1000mm500mm x1000mm960mm x 960mm
Cabinet Resolution168dots x 168dots128dots x 256dots108dots x 208dots144dots x 144dots
Pixel Density112,896dots/㎡65,536dots/㎡43,264dots/㎡22,500dots/m²
Minimum Viewing Distance≥2.9 m≥3.9 m≥4.8 m≥6.7 m
Brightness4300nits ~ 4500nits6500nits ~ 7500nits6500nits ~ 7000nits6,000nits ~ 9000nits
IP GradeIP66IP66IP66IP68
Refresh Rate3840Hz3840Hz3840Hz3,840Hz
Gray Scale15bits15bits15bits14bits~16bits
Viewing AngleH:160° / V:100°H:160° / V:90°H:160° / V:100°H:180° / V:80°
Maximum Power Consumption700W/m²600W/m²650W/m²580W/m²
Average Power Consumption230W/m²230W/m²230W/m²150W/m²
Input VoltageAC110V-220V@ 50Hz/60HzAC110V-220V@ 50Hz/60HzAC110V-220V@ 50Hz/60HzAC110V – AC220V @ 50Hz/60Hz
Operating Temperature﹣20℃~55℃﹣30℃~50℃﹣20℃~55℃﹣30℃~50℃
Operating Humidity95%95%95%10%~95%
Cabinet MaterialAluminumAluminumAluminumAluminum
Cabinet Weight36kg/sqm33kg/sqm33kg/sqm30kg/sqm
Operating SystemWindows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)
Signal Source CompatibilityDVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
