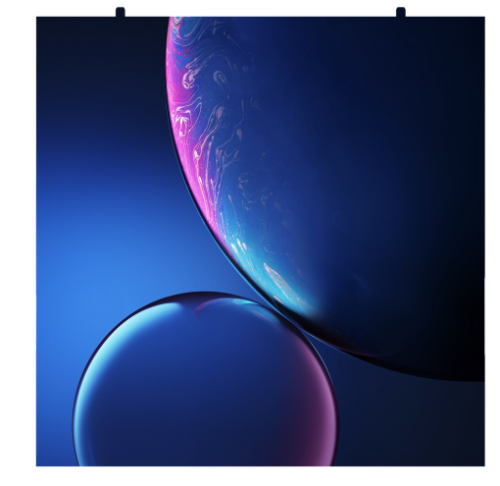

IP68 Outdoor Front Service LED Display P6 P8 P10
IP68 Outdoor Front Service LED Display P6 P8 P10
IP 68
Fanless Design
Superior PCB
Light Weight
10000nits
20% Energy Saved
1920Hz~3840Hz
13bits~16bits

IP68 LED Screen Superior Design, Outstanding Features

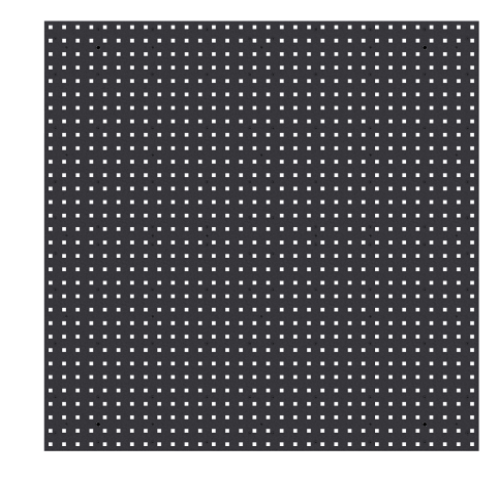

To meet the needs of extremely high brightness, we fully use high-quality materials and exquisite craftsmanship to manufacture this module. After thousands of performance tests and stability tests, this new star has been introduced into the group of Front Access Series. There are enough pixel pitches for you to choose: P6.6, P8, and P10.

IP66 outdoor LED display Fully Front Access, Lighter and Easier

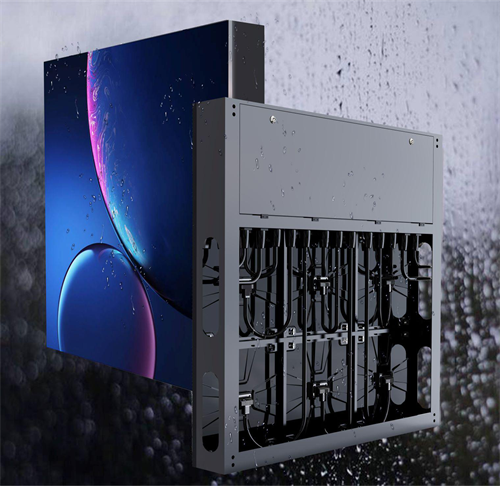

The concise structure and light weight are designed to reduce the pressure of constructions and transportation. The modules, power supply, receiving card, and other components can be removed in the front, which is convenient for the maintainer to maintain the LED screen. Single cabinet is: 30kgs Weight 110mm Thickness

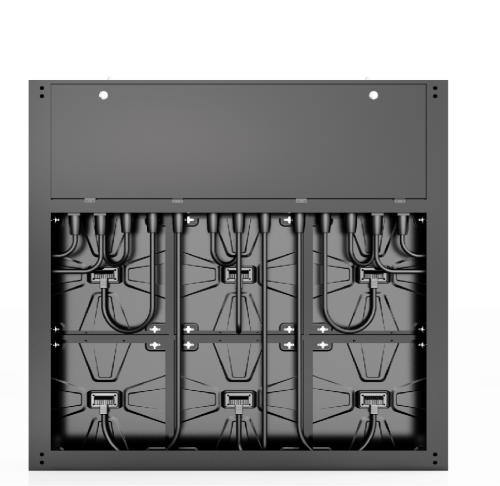

IP68 IP67 LED display billboard Fanless Design, Better Heat Dissipation

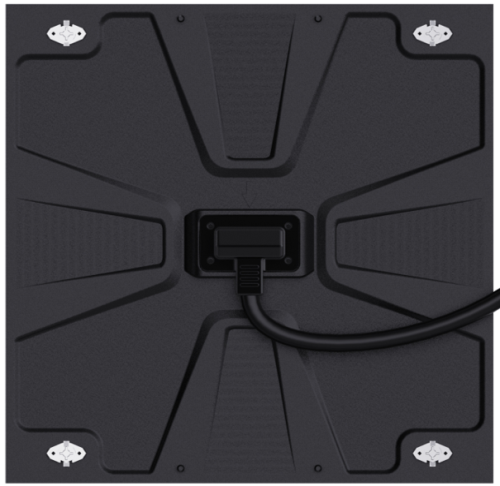

The LED screen is able to work properly without air conditioner even if the weather temperature is up to 55 degree. That is because LED modules and power supply are not in the same compartment, so the heat generated from the power supply won’t affect the LED module, and the heat from the LED module won’t get the power supply overheated neither. Meanwhile, the LED module back is left in the open space, and the power supply has a direct attach on metal case, so both of them can be cooled down quickly by the natural wind.

IP68 Waterproof LED Billboard P8 P10 Front Maintenance LED Screen More Than 10000nits, Ultimate Visual Performance

To display clearly what is on the LED screen in outdoor scenes, we adopt the new methods of superior PCB design and LED chip to make brightness reach more than 10000nits. With the ultra-high brightness, refresh rate and gray scale, the visual performance of the screen is unexceptionable. Moreover, the aspect ratio of this cabinet is 4:3, and it is very easy to make the aspect ratio of screen reach 4:3 or 16:9. This design makes the vision even better.
Best Gray Scale Extremely High Brightness Ultimate Refresh Rate Aspect Ratio Of The Cabinet
Up to 16bits More than 10000nits Up to 3840Hz 4:3

IP68 Outdoor LED billboard Extremely Protective Methods: IP 68

The LED display in outdoor scenes will face more challenges than the indoor ones such as the damage of dust and water. To make the LED display function safe and stabe in outdoor scenes, we adopt the advanced protective methods to withstand heavy rain and strong winds. We also utilize the excellent physical design to reduce the energy cost. IP68 20% Energy Saved

Front service / front access IP68 led billboard display Easy-installing front maintenance outdoor led screen Application Fields

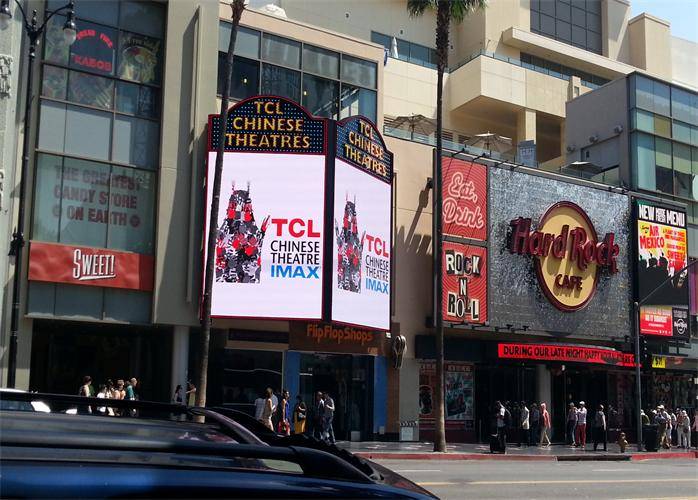

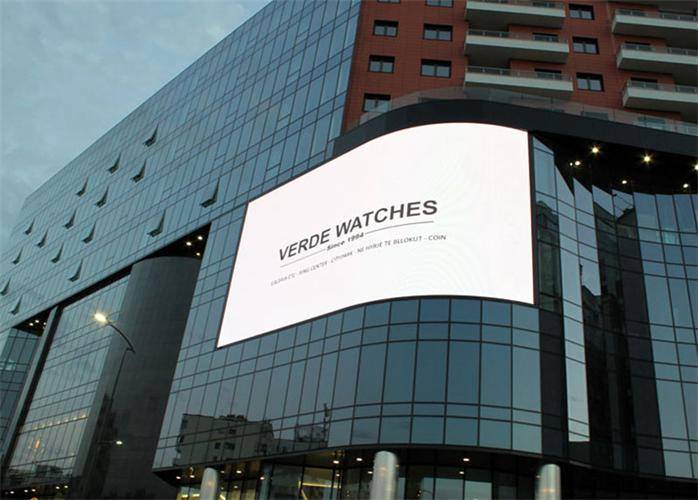

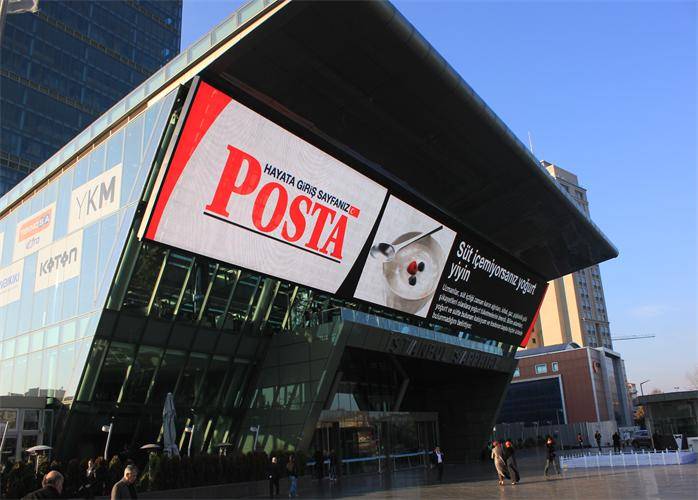

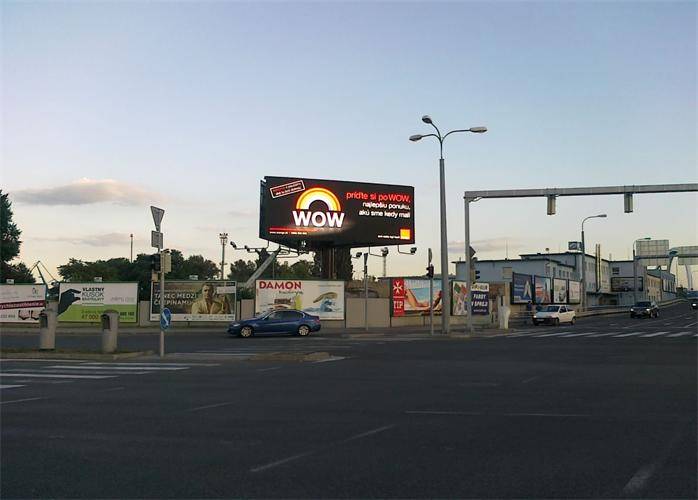

To fit every different scene, our products utilize superior materials with the concise and strong structure. This product is usually used in: Truck Trailers; Scoreboards; Digital Out Of Home(DOOH).

Parameter

ItemP6.67P8P10
Pixel Pitch6.667mm8mm10mm
LED TypeSMD2727SMD2727SMD2727
Module Resolution48dots x 48dots40dots x 40dots32dots x 32dots
Driving Mode1/4scan1/4scan1/2scan
Module Pixels2304dots1600dots1024dots
Module Size320mm x 320mm320mm x 320mm320mm x 320mm
Cabinet Size960mm x 960mm ×110mm960mm x 960mm ×110mm960mm x 960mm ×110mm
Cabinet Resolution144dots x 144dots120dots x 120dots96dots x 96dots
Pixel Density22,500dots/m²15,625dots/m²10,000dots/m²
Minimum Viewing Distance≥6.67 m≥8 m≥10m
Brightness6,500nits or 10,000nits6,000nits or 9000nits6,000nits ~ 10,000nits
IP GradeIP68IP68IP68
Refresh Rate1,920Hz~3,840Hz1,920Hz~3,840Hz1,920Hz~3,840Hz
Gray Scale13bits~24bits13bits~24bits13bits~24bits
Viewing AngleH:110° / V:110°H:110° / V:110°H:110° / V:110°
Maximum Power Consumption800W/m²800W/m²800W/m²
Average Power Consumption265W/m²265W/m²265W/m²
Input VoltageAC110V – AC220V @ 50Hz/60HzAC110V – AC220V @ 50Hz/60HzAC110V – AC220V @ 50Hz/60Hz
Operating Temperature﹣20℃~65℃﹣20℃~65℃﹣20℃~65℃
Operating Humidity10%~90%10%~90%10%~90%
Cabinet Material Aluminum profile Aluminum profile Aluminum profile
Cabinet Weight30kg/panel30kg/panel30kg/panel
Operating SystemWindows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)
Signal Source CompatibilityDVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.
