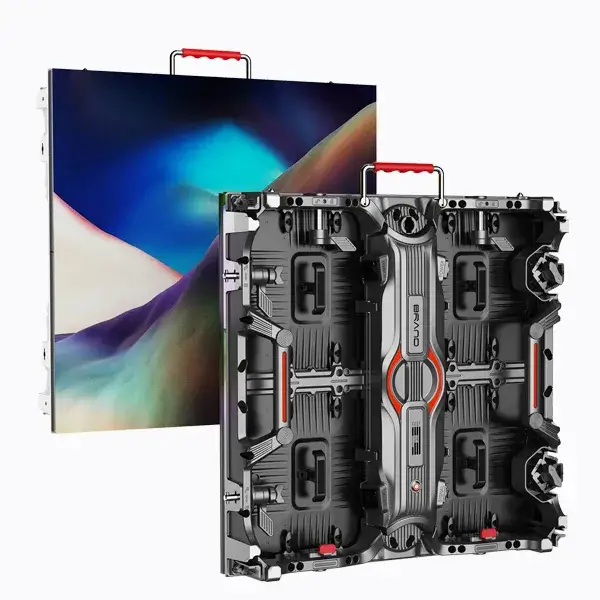

MAGIC500 PRO Front Service Rental LED Display

Leeman Front Service Rental LED Display 500×500 thin Design with Detachable back cover, High Precision Curve Lock for Curved Installation,Corner Protector for LED, Magnetic Module, High Waterproof and Modules are arranged regardless of left and right. Indoor & outdoor rental LED Display LED Screen, high quality, high brightness & high refresh rate LED video wall with better visual effect.

Outdoor Frontal Service Rental LED display

Leeman LED Screen Rental Video Display 500×500 MAGIC500 PRO Rental LED display is outdoor Frontal service LED screen.
Frontal and Rear maintance is available for LED Panels and Power Box.
Perfect Design with new techology and elegant appearance,

LEEMAN lighweight, Slim design

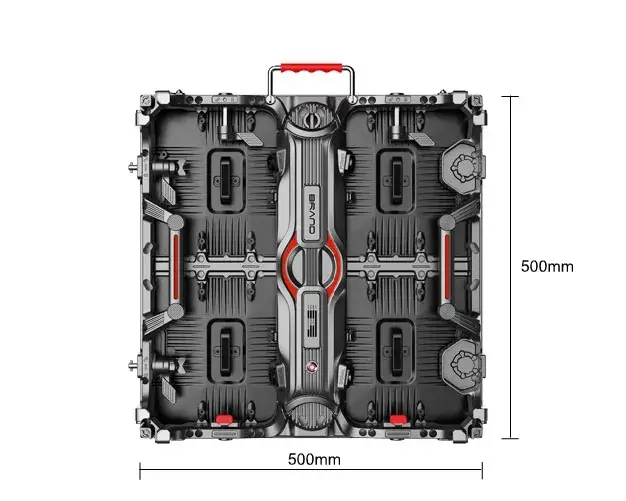

LED Screen Rental 500*500mm standard cabinet size, Leeman-Light die-casting aluminum. ultra-thin thickness with 80mm. For easy transport and Portable;

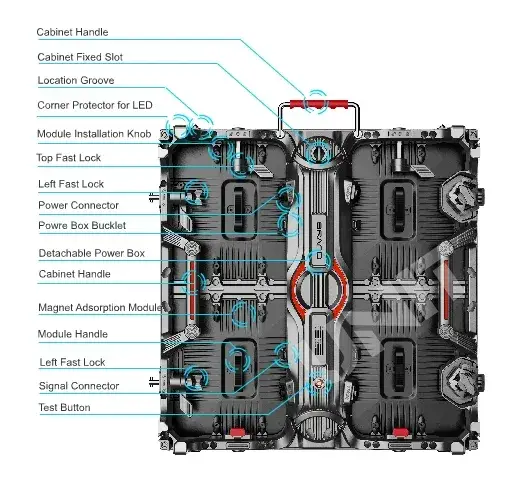

Perfect Cabinet Design With Each Part

Leeman Audiovisual Equipment Rental Service MAGIC500 PRO Rental LED display is designed with aesthetics and industrial idea. Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock, magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more

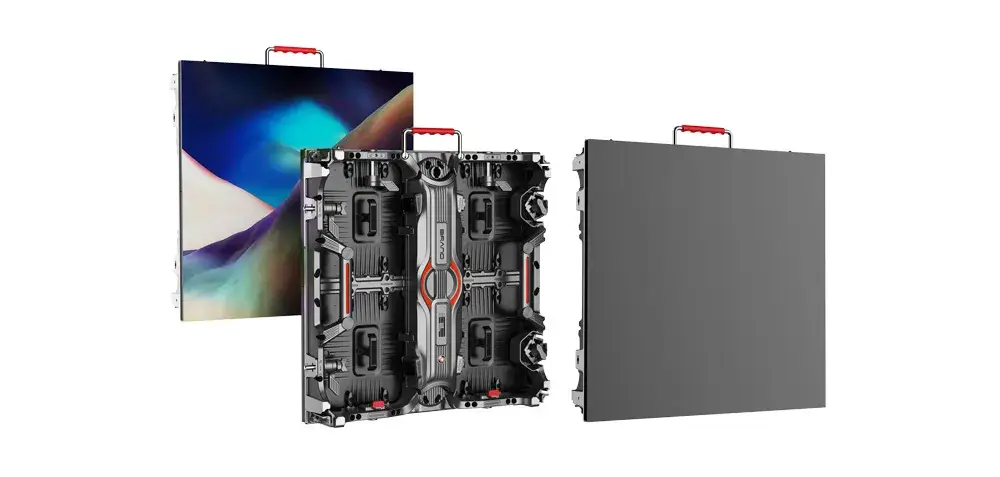

Dual Service Design

Leeman MAGIC500 PRO Rental LED Screen adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design. easy installation for LED panels.

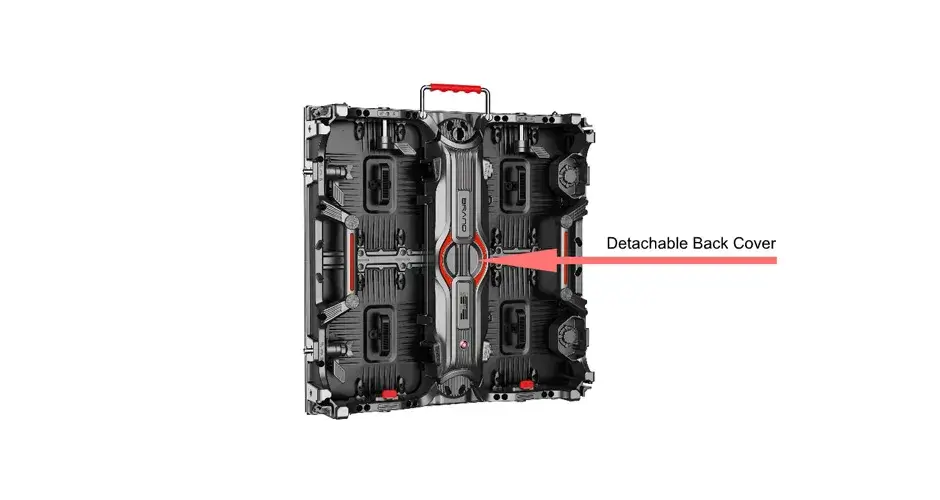

Detachable Back Cover, High Waterproof

Hard Connection Design with detachable Power box and HUB Poard, High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assamble and disassamble of back cover.

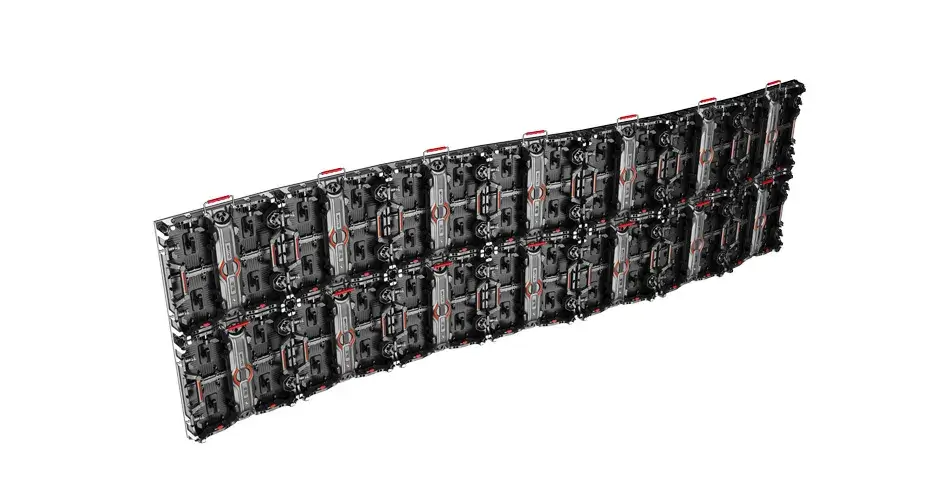

High Precision Curve Lock

High Precision Curve Lock design (-10° to +10°) is adopted to solve the problem that the old curved lock is difficult to use before.
Rotational control, more accurate, easy to use and quickly adjust curve degree.

Corner Protector for LED

Leeman Front Service Rental LED Display 500×500 MAGIC500 PRO front service LED sign has four corner protectors in each corner to prevent LED to be damaged, more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.

MAGIC500 PRO Front Service Rental LED Display

Pixel pitch2.604mm2.976mm3.91mm4.81mm
Pixels per cabinet192×192 (HxV)168×168 (HxV)128×128 (HxV)104×104 (HxV)
LED lifetime100,000h (video – 50% brightness)
Brightness≥1000 nits;
Module size250*250mm
Module resolution96*96dots84*84dots64*64dots52*52dots
Refresh rate960-1,920Hz
Hor. viewing angle140° +/-5° (@50% brightness)
Vert. viewing angle140° +/-5° (@50% brightness)
Brightness uniformity>98%
Dimming0-100%
Grey Level14 bits
Avg Power consumption350 W/m²320 W/m²300 W/m²280 W/m²
Max Power consumption680 W/m²640 W/m²620 W/m²600 W/m²
Operation power voltage100-240V / 50-60Hz
Operational temperature-10°C to +40°C / 14°F to 104°F
Operational humidity10-80%
IP ratingIP54 for Indoor, IP65 for Outdoor
Dimensions500 x 500 x 80 mm (WxHxD)/ 19.6 x 19.6 x 3.5 inch (WxHxD)
Weight / Tile7.5 kg / 16.53 lbs
ServiceabilityFront and back service
CertificationsCE, UL, FCC class A, RoHS, WEE, REACH
Warranty2 years standard product warranty
Products

P2.604

96*96 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display

P2.976

84*84 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display

P3.91

64*64 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display

P4.81

52*52 dots/module
250*250mm Panel
500*500mm
Indoor & Outdoor Display
