LED curtain wall building lighting media facade

LED Curtain Display P10.4, P12.5, P15.6, P25, P31.2, P37.5

Excellent Heat Dissipation
IP65
Fast and Easy Maintenance
Light Weight
60% Transparency
6,000nits~10,000nits
1,920Hz~3,840Hz
13bits~24bits

Transparent LED Display for outdoor media facade Product Description

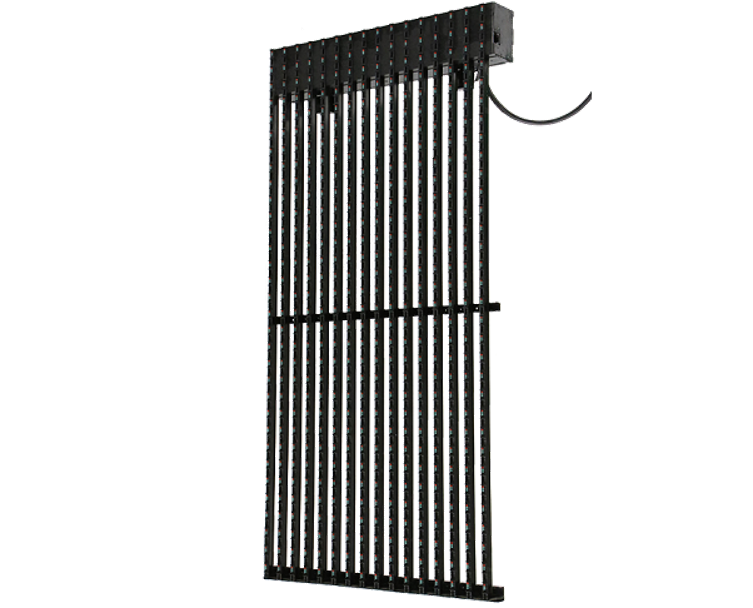

LED curtain wall building lighting media facade Innovative Curtain – Shaped LED Display

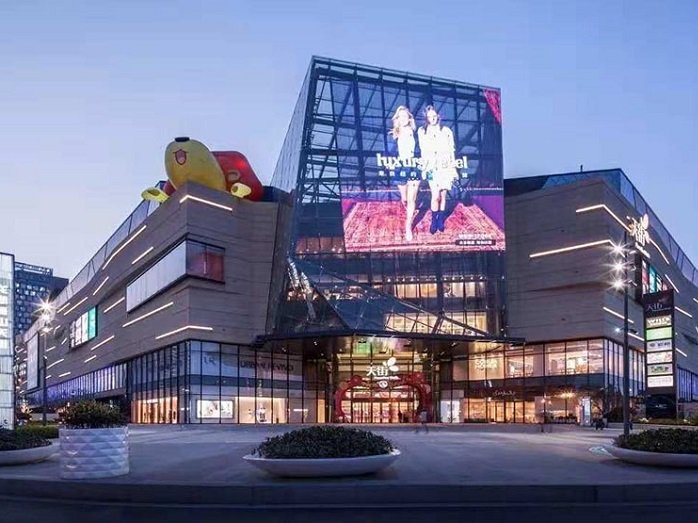

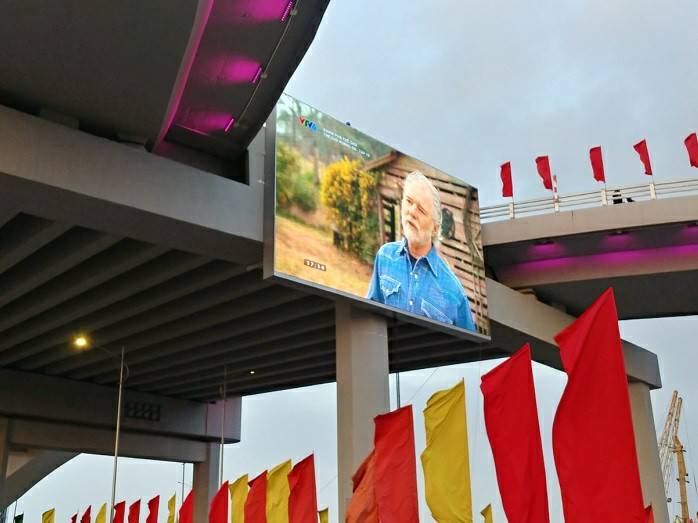

LED display media facade series is a media facade LED screen with high transmittance. Designed to make architecture more cutting-edge and attractive, the C1 series is integrated with the feature of the LED curtain. With high brightness and great transparency, this display tends to be used as over-dimensional, animated, illuminated advertising LED screens. It has been widely applied in the places like Times Square, Las Vegas and Hong Kong. The pixel pitches are P10.4, P12.5, P15.6, P25, P31.2.

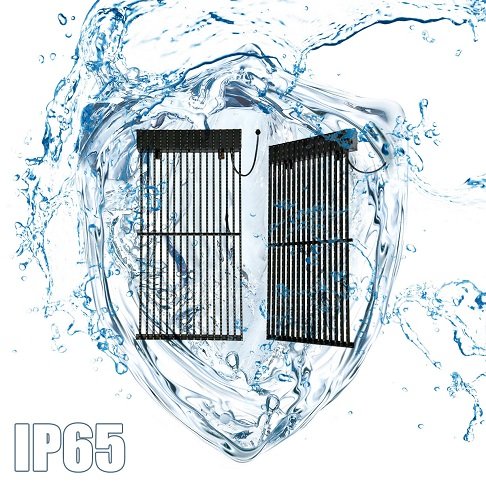

Led Display Screen on Building Facade Waterproof & Dustproof

To make LED display C1 series adjust different environments, we enhance the resistance of screen to dust and water. The protective grade has reached IP65.

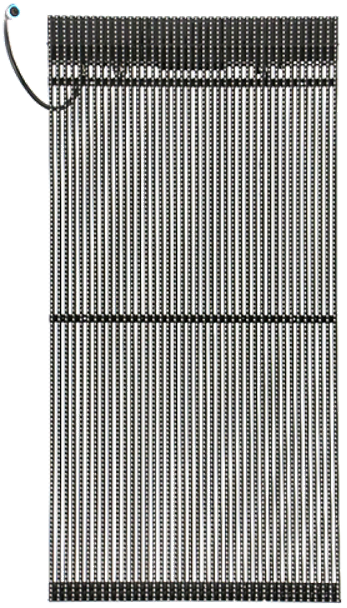

Interactive Architecture LED Media Facade Display Slim and Brilliant Structure

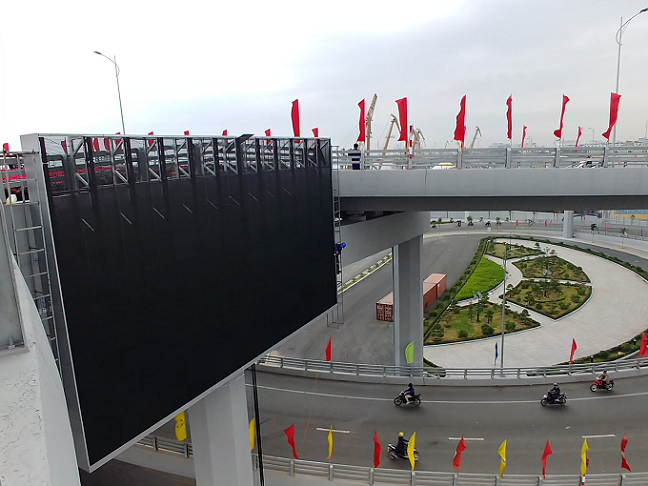

The structural design is very compact. It is very efficient and fast to maintain the cabinet from the front and the back. This LED display is much lighter than other LED screens because of its aluminum strip design. This feature will bring more convenience to maintenance and transportation.

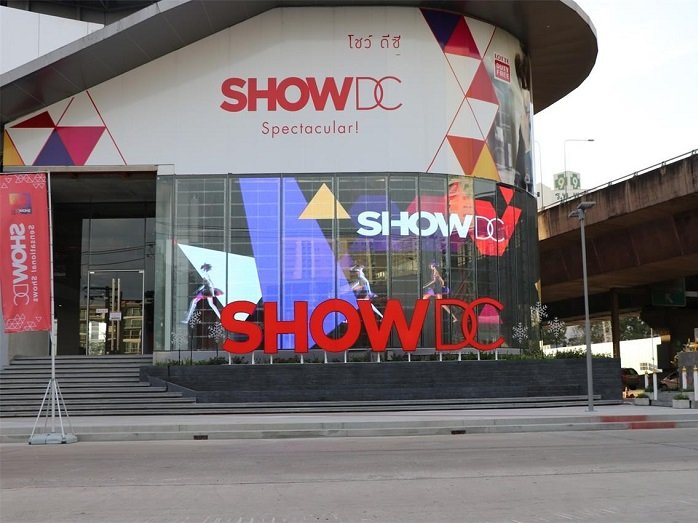

LED Media Facade Curtain Vivid Visual Performance

This display is very decorative on the strength of its curtain shape and 60% transparency. After thousands of tests and improvements, the screen has reached the ideal value of each visual performance. (1) High Brightness: This curtain media facade can reach more than 7,000nits. (2) Ultimate Refresh Rate: The outdoor LED billboard is full color and its refresh rate can reach 3,840Hz. (3) Best Gray Scale: The gray scale of this DOOH screen can reach 24bits.

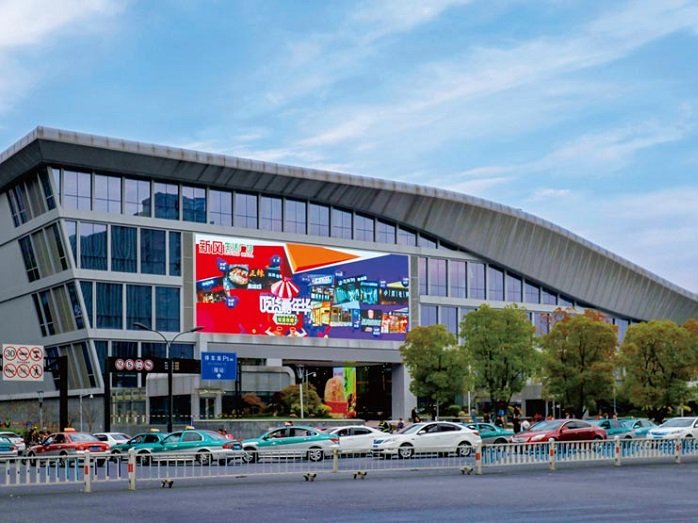

To fit every different scene, our product is made up of superior quality materials with the concise and strong structure. This product is usually used in: Billboards; Chain Stores; Central Business Districts.

Parameter

ItemP10.4P12.5P12.5
Pixel Pitch10.416mm12.5mm12.5mm
LED TypeSMD3535SMD3535 DIP346
Driving ModeStaticStaticStatic
Module Resolution96dots × 2dots80dots × 2dot80dots × 2dot
Cabinet Size500mm × 1,000mm500mm × 1,000mm500mm × 1,000mm
Cabinet Resolution48dots × 96dots40dots × 80dots40dots × 80dots
Pixel Density9,216dots/㎡6400dots/㎡6400dots/㎡
Min. Viewing Distance≥10.4m≥12.5m≥12.5m
Transparency18%24.6% / 18.4%18%
Brightness5,500nits5500nits7000nits
IP GradeIP65IP65IP65
Refresh Rate1,920Hz~3,840Hz1,920Hz~3,840Hz1,920Hz~3,840Hz
Gray Scale13bits~24bits13bits~24bits13bits~24bits
Viewing AngleH:160° / V:160°H:160° / V:160°H:160° / V:160°
Max.Power Consumption560W/㎡700W/㎡ 450W/㎡
Average Power Consumption160W/㎡210W/㎡135W/㎡
Input VoltageAC110V~AC220V @ 50Hz / 60HzAC110V~AC220V @ 50Hz / 60HzAC110V~AC220V @ 50Hz / 60Hz
Operation Temperature﹣20℃~65℃﹣20℃~65℃﹣20℃~65℃
Humidity-operating10%~90%10%~90%10%~90%
Cabinet MaterialDie-casting AluminumDie-casting AluminumDie-casting Aluminum
Cabinet Weight22kg/㎡19.6kg/㎡19.6kg/㎡
System OperationWindows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)
Source compatibilityDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
