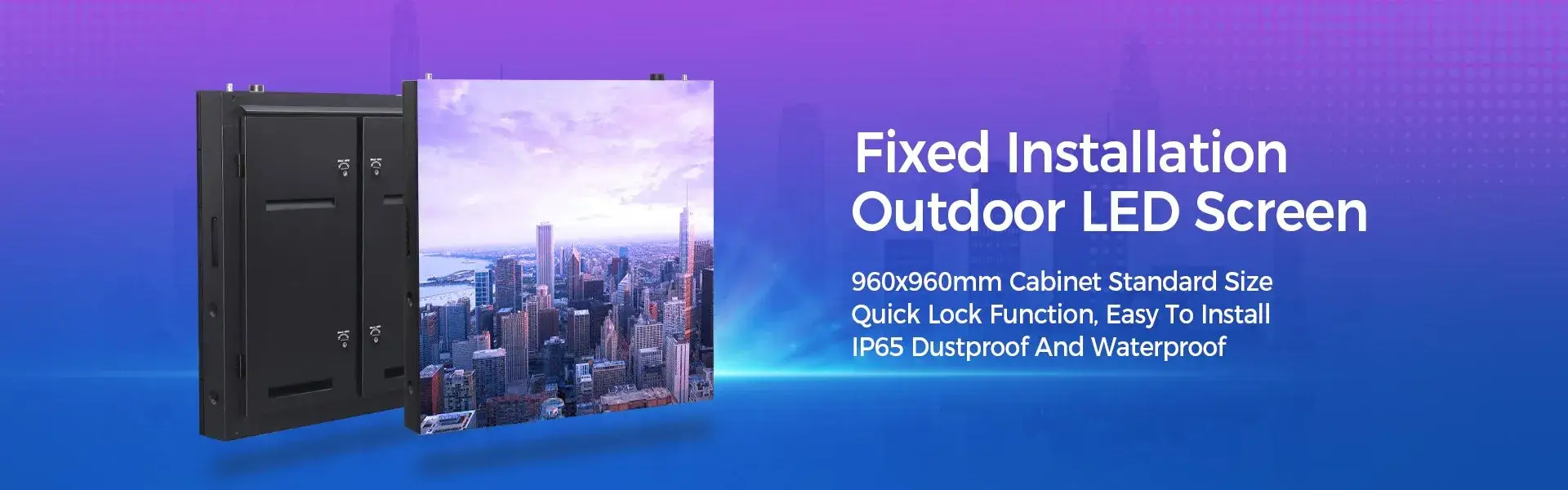

Outdoor Fixed Installation LED Display Screen

The SMD Encapsulation technology with high brightness 10000nits makes Outdoor Fixed LED display has a Vivid and smoother pictures when in use.

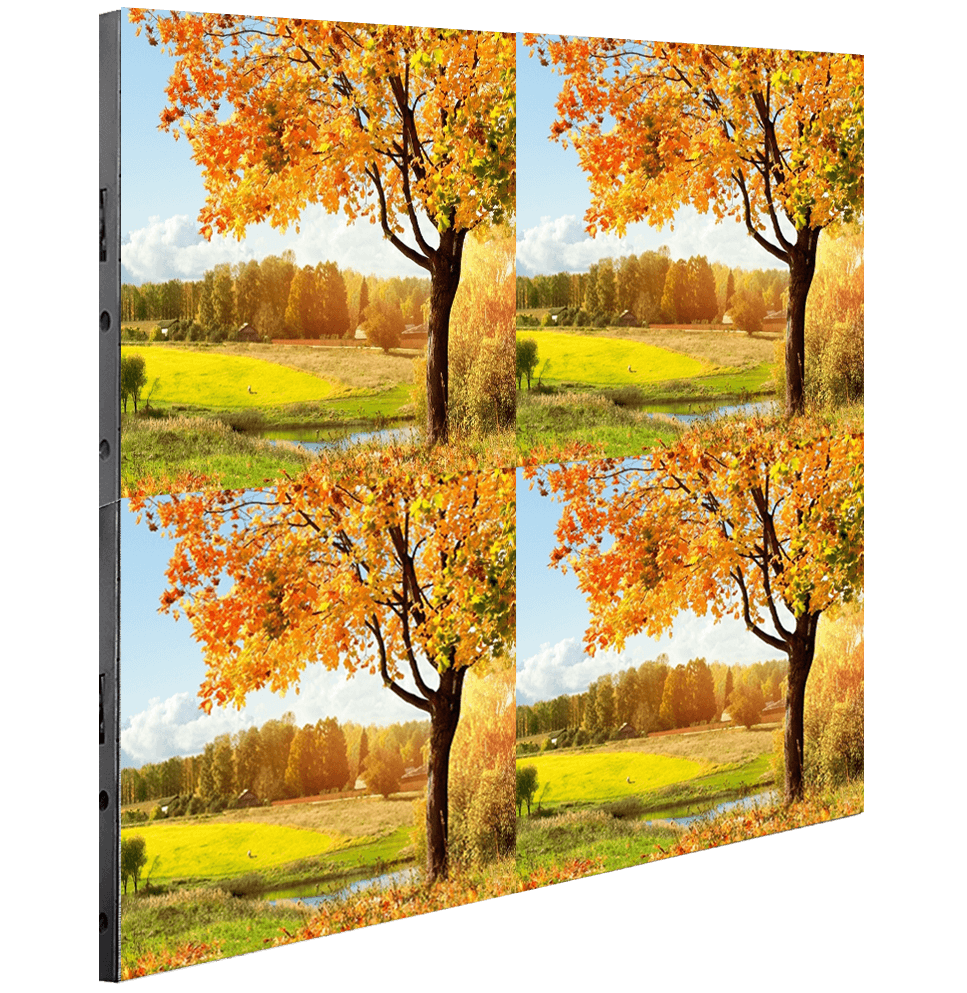

SEAMLESS, NO GAPS

Fine standard cabinet with no obvious gaps between the cabinets. Non-deformability function keep the screen in a good shape and smoothly.

Cabinet Structure advantages

Outdoor fixed installation LED display screen cabinet, is made of iron material heat treatment, and covered with anti-corrosion waterproof protective film, can extend the service life, improve heat resistance. In addition, the cabinet has a high hardness, excellent wind and cold resistance, can withstand the 12th hurricane. And the size of the outdoor SMD LED display cabinet can be customized according to customer conditions.

HIGH REFRESH RATE DRIVER IC, HIGH BRIGHTNESS, HIGH CONTRAST

The Leeman 960 Series rental LED display features high brightness 6000nits-10000nits, high contrast, high refresh rate 3840Hz driver IC MBI5153 ICN2153 and high grayscale.
The DIP570 RGB 3in1 LED display Panel has high-definition images, clear video display and excellent picture quality.

DELICATE CABINET DESIGN

Outdoor fixed full color video LED display products are lighter in weight, LED display with quick lock function, compact structure, easy to install, no gaps.
The user-friendly handlebar design makes it easier to move the cabinet.

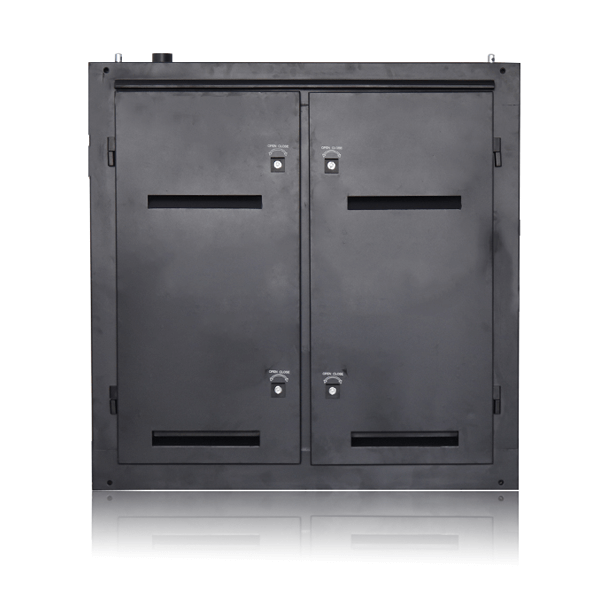

EXCELLENT HEAT DISSIPATION AND WATERPROOF PERFORMANCE

The outdoor fixed-mounted LED display board has special air inlet, air outlet heat dissipation and waterproof structure, excellent water resistance, unique structure design for cooling and absolutely quiet operation.

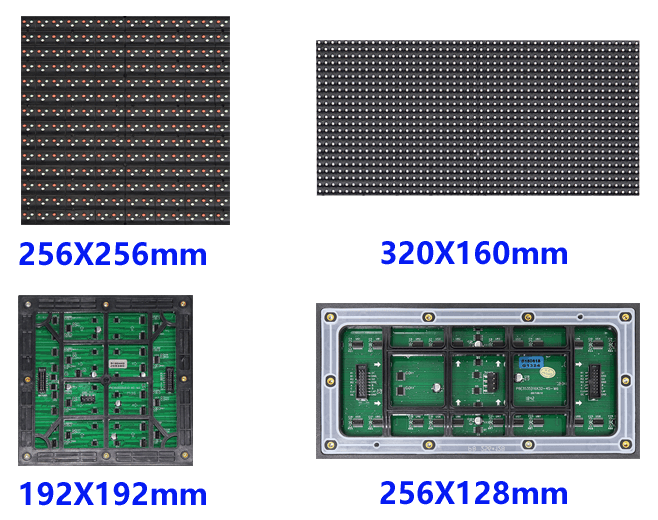

320X160mm more standard size modules

960mm series outdoor fixed installation DIP 1R1G1B LED display billboard with standard size panel: 250*250mm, 320 * 160mm, 160*160mm, 256*128mm, etc. Pay more attention to the display performance of standard LED video wall screens, quick assembly and maintenance.
This is also very convenient when you change the pixel pitch from P2mm to P10mm. You don’t need to change anything, just change the modules because they have the same module size and structure.

IP65 PROTECTION LEVEL

All-weather for outdoor environment. With LEEMAN unique protection technology to make the display reache the level of IP65,
can work normally in any weather condition! High protection grade of IP65 guarantees, durability, reliability, Anti-ultraviolet and steady.

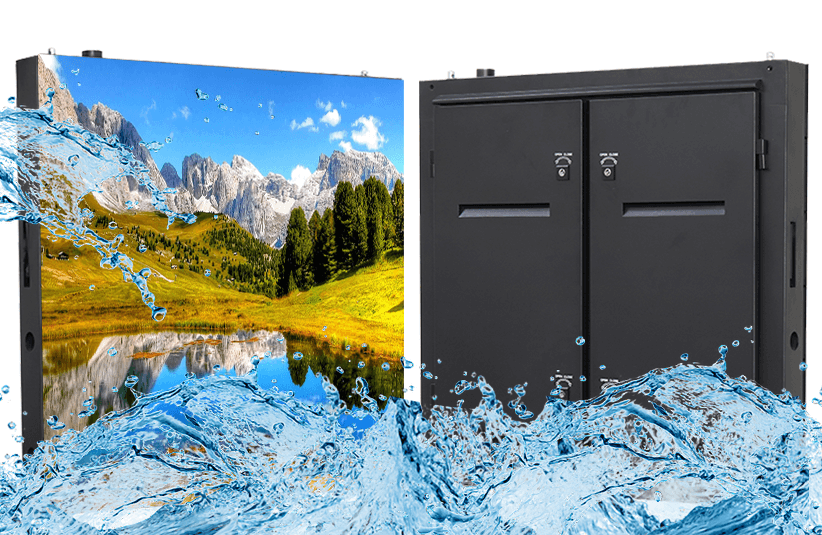

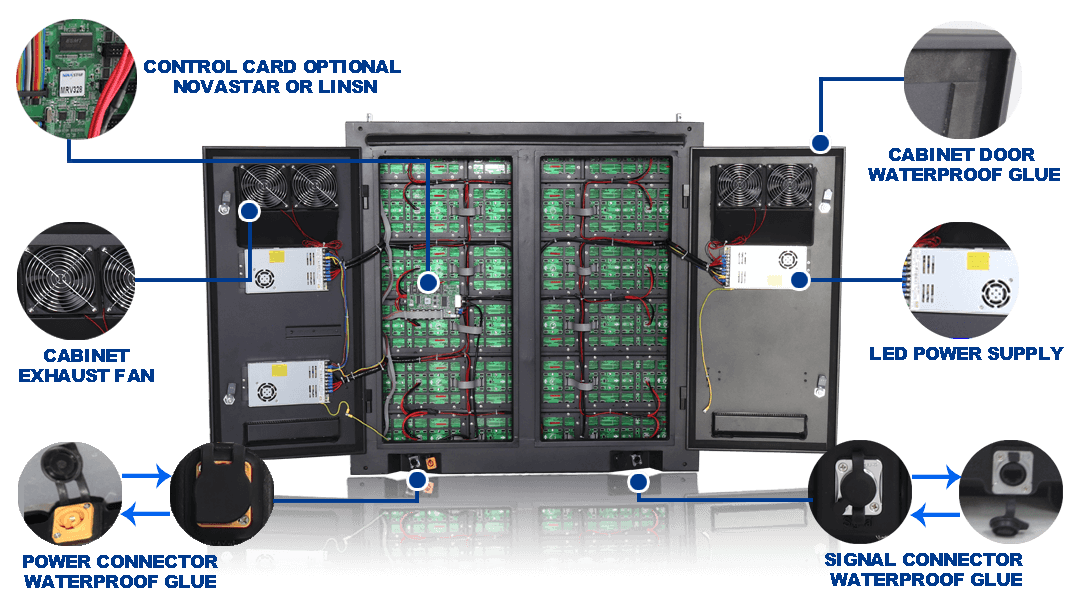

DUSTPROOF, WATERPROOF AND CORROSION RESISTANT

Specific independent waterproof module and the waterproof enclosure with excellent sealing performance to protect cabinet,
which is dustproof, waterproof and corrosion resistant, and the protection grade is up to IP65.

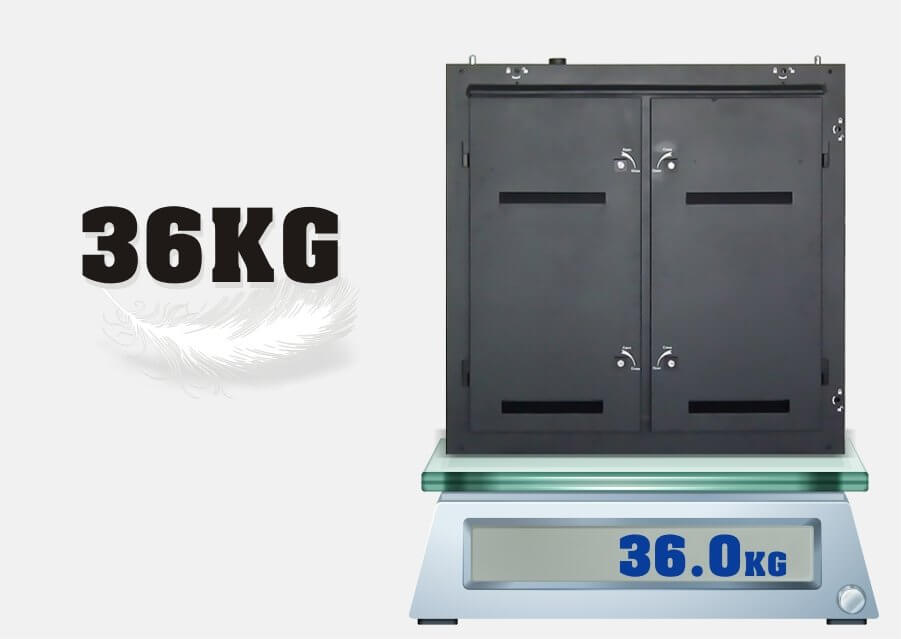

THIN AND LIGHT PANEL DESIGN

LEEMAN The outdoor fixed installation LED display weighs only 36kg, which is convenient for transportation and saves your labor costs, and it is light and easy to install, assemble and disassemble.

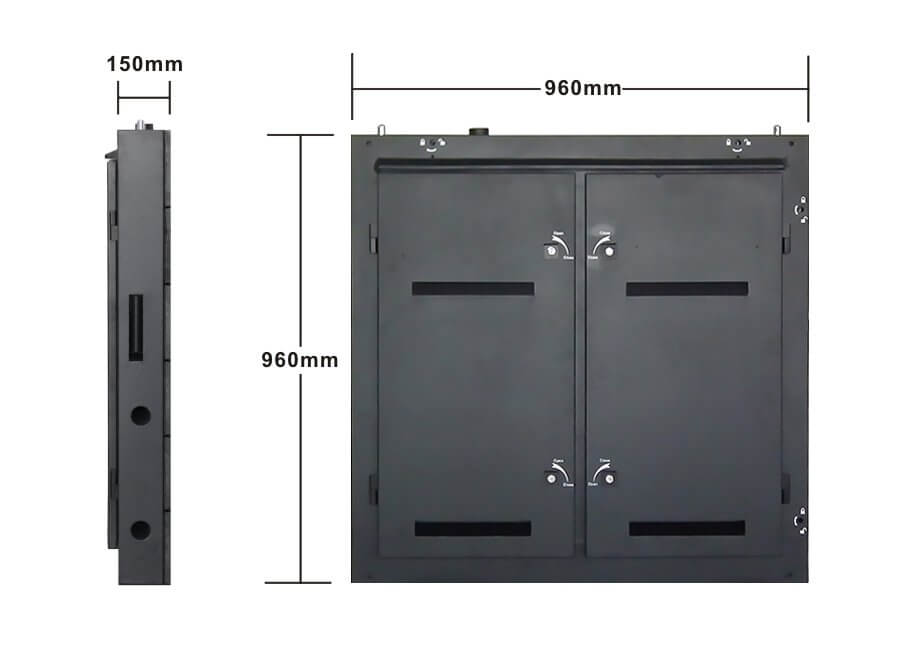

960MMX960MM STANDARD SIZE CABINET

960mm series outdoor fixed installation LED display, adopts 960mmx960mm standard size cabinet design, ultra-thin thickness 150mm, uniformly fixed installation LED display.

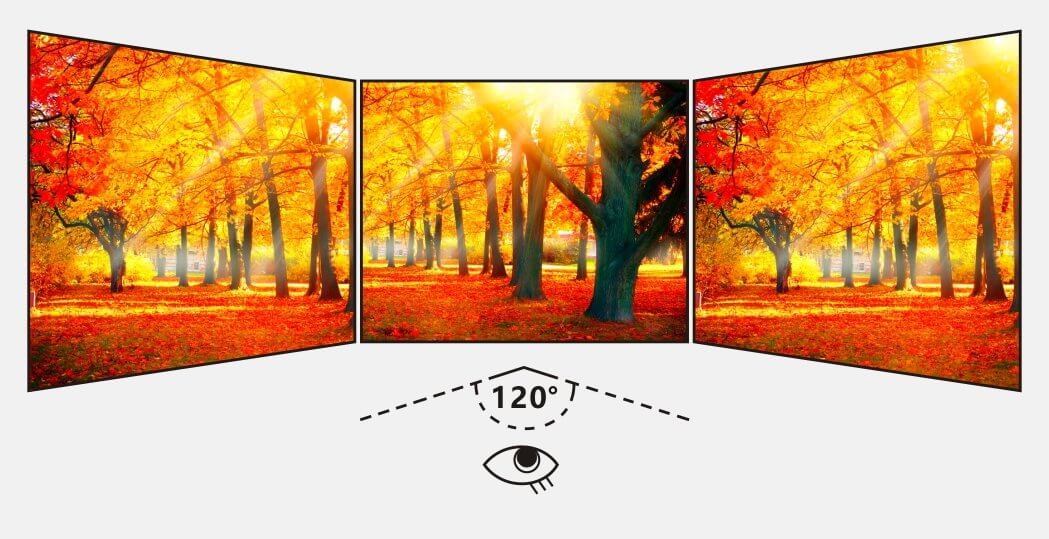

SUPER WIDE VIEWING ANGLE

Viewing angle is up to 120° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.

Outdoor Fixed Installation LED Display

Pixel Pitch (mm)P3P4P5P6P8P10 (2S)P10 (4S)P10 (DIP)P16 (DIP)
Pixel ConfigurationSMD1921SMD2525SMD2525SMD3535SMD3535SMD3535SMD3535DIP346DIP346
Density (Pixels/㎡)111,11162,50040,00027,77815,62510,00010,00010,0003,906
Module Resolution (Pixels)64x6464x3264x3232x3232x1632x1632x1632x1616x16
Module Size (mm)192x192256x128320x160192x192256x128320x160320x160320x160256x256
Driving Mode (Duty)1/161/81/81/81/41/21/41/41/1
Cabinet Size (mm)576x576512x512640x640768x7681024x768960x960960x960960x9601024x1024
Cabinet Weight (KG)15111623.531.536364652
Brightness (CD/㎡)≥5,500≥6,000≥6,000≥6,500≥6,000≥7,500≥6,000≥8,000≥8,500
Viewing Angle (°)120120120120120120120120120
Gray Grade (Bits)141414141414141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)810900836840760850540520540
Avg. Power Consumption (W/㎡)270300280280260285180175180
Frame Frequency (Hz)≥60≥60≥60≥60≥60≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60-20~+60-20~+60-20~+60-20~+60-20~+60-20~+60-20~+60
Lifetime (Hours)100,000100,000100,000100,000100,000100,000100,000100,000100,000
Protection GradeIP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)
