Outdoor Front Service LED Display P3.906 P4.807 P5 P6.154
Outdoor Front Service LED Display P3.906 P4.807 P5 P6.154 P8 P10
Front Maintenance
Up to 10000nits
Wide Viewing Angle
Excellent Performance
High Definition
13bits ~ 16bits
1920Hz ~ 3840Hz
High IP Level

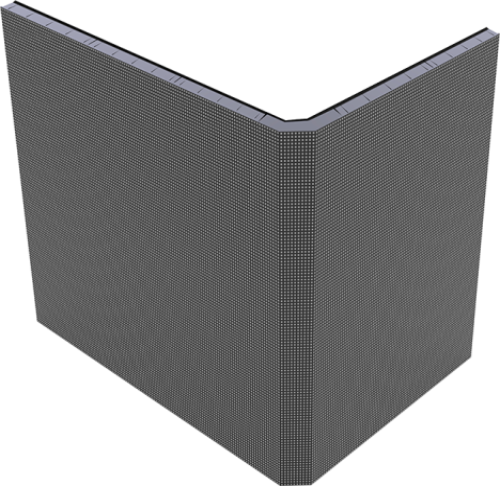

Front Accessible Maintenance Service LED Screen Innovative Cabinet Design

The Leeman LED cabinet has a unique and innovative feature: The modules can be spliced into a 90 degree angle seamlessly, without the black line. This feature allows the screen to fit 90 degree shape wall-mounted installation perfectly.

Outdoor Frontal Service LED Module Panel High Brightness

High Brightness The brightness of this outdoor advertising display can be up to 10,000nits. So the display content will still look very clear in direct sunlight. Lower Attenuation The LED screen is still bright enough in the sun after 6 years. Less Power Consumption We have adopted the unique design. This LED cabinet consumes 30% less power than the other similar products in the market.

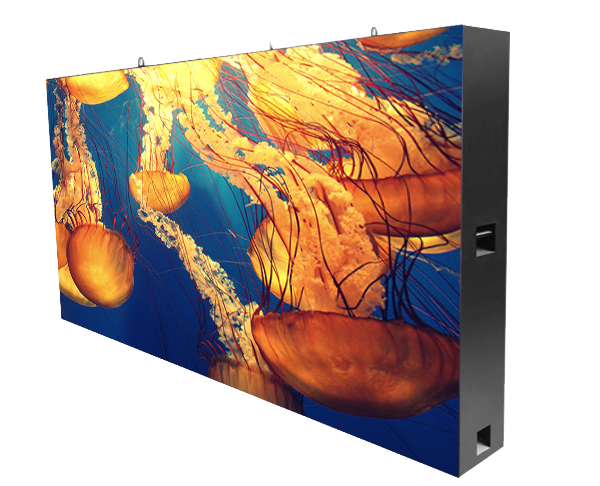

Outdoor Module Front Service LED Display Premium LED Screen for Outdoor Advertising

Designed for outdoor advertising, our LeemanLED series has been proved to be a very successful front access LED screen. To make the LED display stable and reliable, we have carefully selected high-quality materials. The pixel pitches are SMD LED module: P3.9, P4.8, P5, P6.1, P6.6, P8, P10 DIP LED module: P10, P16, P20

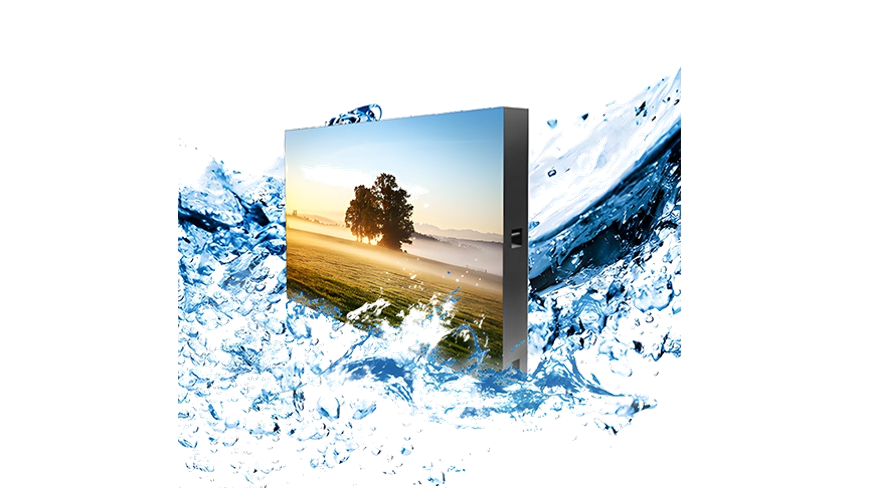

Front service outdoor led display High Protection Grade

This outdoor LED cabinet can be designed to be no door, no fan and no ventilation. Therefore, the protective grade is higher than IP65. That’s to say, the LED display can function well in dusty roadside and seashore.

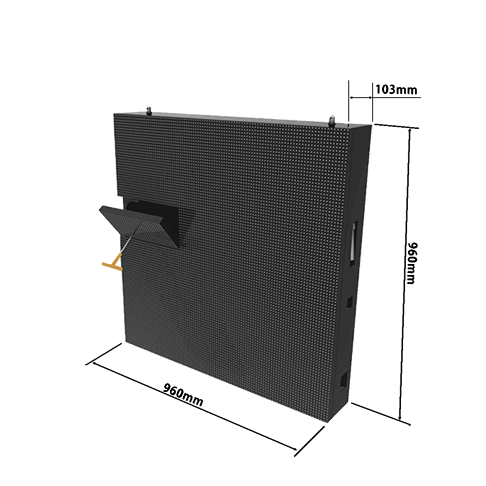

Outdoor Front Service LED Screen Manufacturers Fully Front Access Design

With fully front access design, all components, such as power box, receiving card and other accessories, can be removed in the front of the LED cabinets. 103mm Thickness and Neat Back The LED screen panel can be very thin and its back is neat, so it can be directly mounted on the wall. You don’t need to leave any space in the back.

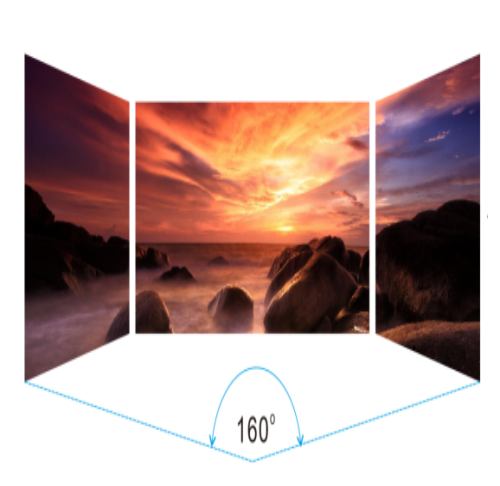

Outdoor Front Service Energy Saving LED Screen Wide Viewing Angle

We use high-quality plastic mask on the LED modules, which makes the LED screen very flat. Thus, the viewing angle is wider than that of other LED products. Moreover, the LED display is able to attract more audience.

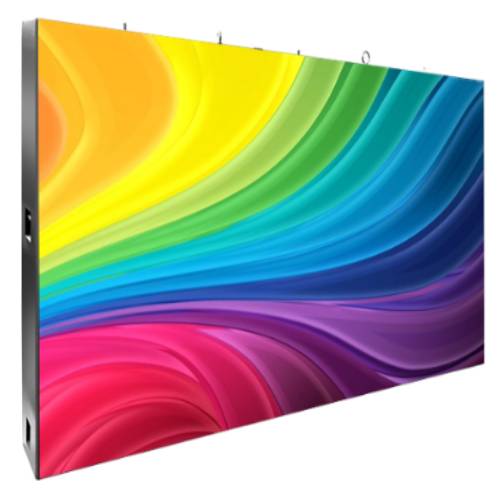

Outdoor front or back service LED display screen Great Performance

We adopt the scientific design to reach 3840Hz refresh rate and 14bits grayscale. So the LED video screen won’t look flickering in the camera and the visual effect will also look even more amazing.

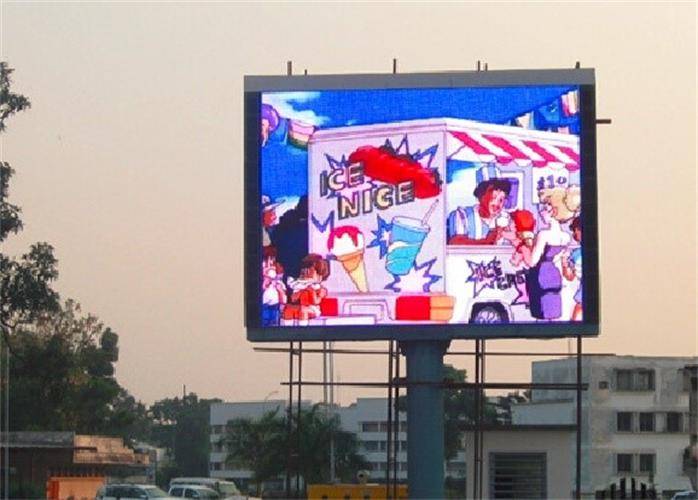

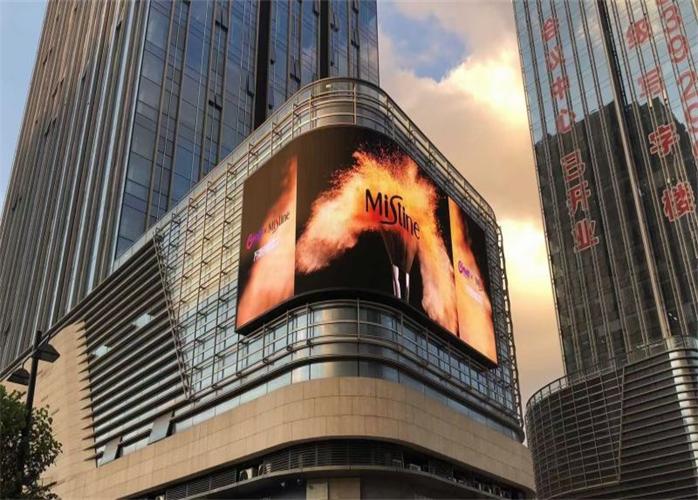

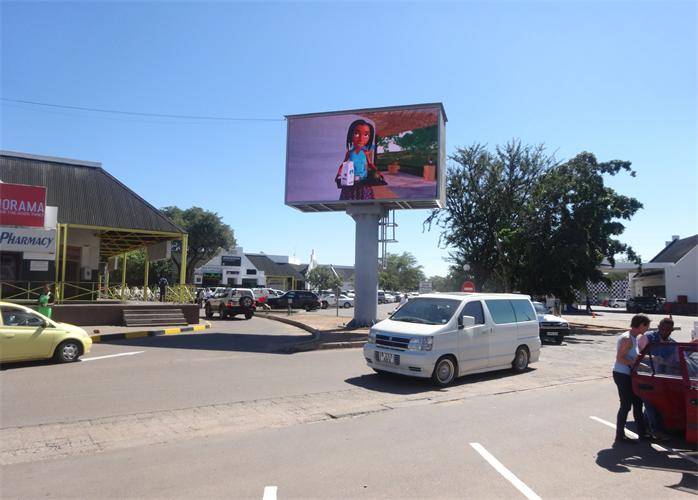

Front Accessed LED Display Application Fields

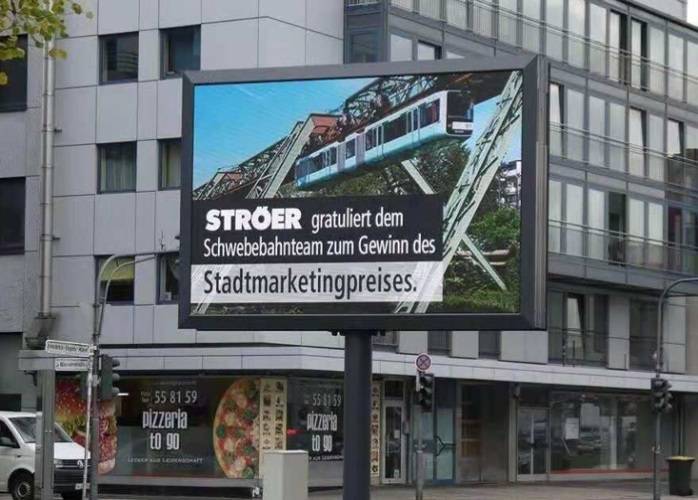

LeemanLED full color LED displays are mainly for outdoor advertising. They have been sold to many countries, including Australia, Qatar, Saudi, Thailand, etc. Those countries have very strong sunlight or high humidity. This product is usually used in: Mall Advertisement; Stadiums scoreboard; Road billboard, etc.

Parameter

Item P3.9 P4.8 P5 P6.1
Pixel PitchP3.906mm4.807mm5mm6.154mm
LED TypeSMD1921SMD1921SMD1921SMD1921
Module Resolution64dots × 64dots52dots × 52dots64dots × 32dots52dots × 26dots
Driving Mode1/16scan or 1/8scan1/7scan1/8scan1/7scan
Module Pixels4,096dots2,704dots2,048dots1,352dots
Module Size250mm × 250mm250mm × 250mm320mm × 160mm320mm × 160mm
Cabinet Size1,000mm × 1,000mm1,000mm × 1,000mm960mm × 960mm960mm × 960mm
Cabinet Resolution256dots × 256dots208dots × 208dots192dots ×192dots156dots × 156dots
Pixel Density65,536dots/㎡43,264dots/㎡40,000dots/㎡26,406.25dots/㎡
Minimum Viewing Distance≥3.9m≥4.8m≥5m≥6m
Brightness5,000nits or 6,500nits6500nits6,000nits6,000nits
IP GradeIP65IP65IP65IP65
Refresh Rate1,920Hz~3,840Hz1,920Hz~3,840Hz1,920Hz~3,840Hz1,920Hz~3,840Hz
Gray Scale13bits~24bits13bits~24bits13bits~24bits13bits~24bits
Viewing AngleH:110° / V:110°H:110° / V:110°H:110° / V:110°H:110° / V:110°
Maximum Power Consumption750W/㎡ or 1000W/㎡1000W/㎡750W/㎡750W/㎡
Average Power Consumption250W/㎡ or 330W/㎡330W/㎡250W/㎡250 W/㎡
Input VoltageAC110V~AC220V @ 50Hz / 60HzAC110V~AC220V @ 50Hz / 60HzAC110V~AC220V @ 50Hz / 60HzAC110V~AC220V @ 50Hz / 60Hz
Operating Temperature﹣20℃~50℃﹣20℃~50℃﹣20℃~50℃﹣20℃~50℃
Operating Humidity10%~90%10%~90%10%~90%10%~90%
Cabinet MaterialIron / AluminumIron / AluminumIron / AluminumIron / Aluminum
Cabinet Weight45kg/㎡ or 38kg/㎡45kg/㎡ or 38kg/㎡45kg/㎡ or 38kg/㎡45kg/㎡ or 38kg/㎡
Operating SystemWindows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)Windows (Win7, Win8, etc.)
Signal Source CompatibilityDVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.
