Outdoor LED Display 1000x1000 Platinum
Preferred installation of outdoor LED display board 50% running cost saving 10,000 nits brightness 1m X 1m aluminium cabinet
Engineering
Outdoor LED Billboard Front and Rear maintenance No need Air Conditioner Silver,White, Black 23KG/panel
Light weight

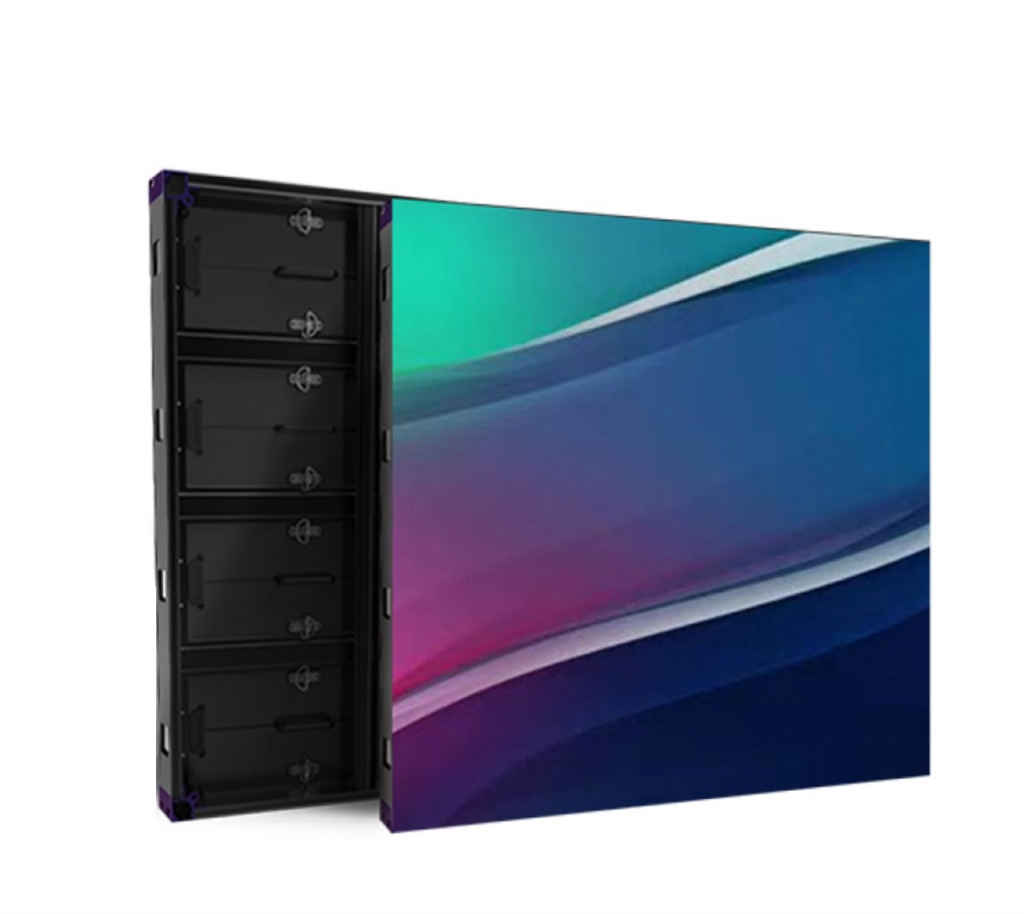

Outdoor LED Video Wall Slim and light weight Aluminium panel Curvable design Plug & play Ship&Install cost saving

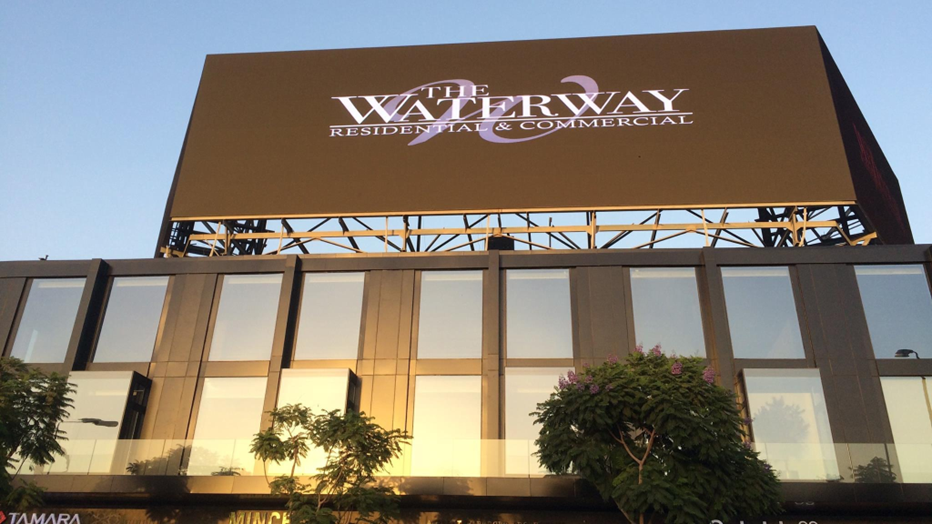

The waterway led screen,On the weekend, you should go to waterway,find a coffeeshop, have a drink and enjoy content from big led display.
| Pixel pitch (mm) | 10.4 | 3.9 | 4.8 | 6.2 | 7.8 |
|---|---|---|---|---|---|
| Model | AO10.4-10001000 | AO3.9-10001000 | AO4.8-10001000 | AO6.2-10001000 | AO7.8-10001000 |
| LED | SMD2727 | SMD1921 | SMD1921 | SMD2727 | SMD2727 |
| Density (dots/sqm) | 9246 | 65746 | 43403 | 26015 | 16437 |
| Module resolution (dots) | 1156 | 8218 | 5425 | 3252 | 2055 |
| Module width (mm) | 500 | 500 | 500 | 500 | 500 |
| Module height (mm) | 250 | 250 | 250 | 250 | 250 |
| Cabinet width (mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Cabinet height (mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Cabinet depth | 60 | 60 | 60 | 60 | 60 |
| Resolution (dots) | 9246 | 65746 | 43403 | 26015 | 16437 |
| Weight (kg) | 24 | 24 | 24 | 24 | 24 |
| Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Maintain | Front rear | Front rear | Front rear | Front rear | Front rear |
| IPX | IP65 | IP65 | IP65 | IP65 | IP65 |
| Max brightness (cd/sqm) | 10000 | 10000 | 10000 | 10000 | 10000 |
| Color temperature (k) | 6500 | 6500 | 6500 | 6500 | 6500 |
| Angle | 140 | 140 | 140 | 140 | 140 |
| Contrast ratio | 1:01 | 1:01 | 1:01 | 1:01 | 1:01 |
| Max power (w) | 600 | 600 | 600 | 600 | 600 |
| Average power (w) | 200 | 200 | 200 | 200 | 200 |
| Voltage type | AC | AC | AC | AC | AC |
| Voltage (v) | 110-220 | 110-220 | 110-220 | 110-220 | 110-220 |
| Driving method | 2 | 8 | 7 | 5 | 4 |
| Screen FPS (hz) | 60 | 60 | 60 | 60 | 60 |
