P1.9 P2.6 P2.9 P3.9 P4.8 Outdoor Rental LED Display 500×500
P4.81 Rental LED Display 500×500 is a real users-based design
Super light weight, perfect alignment flatness, easy installation and maintenance, rapid installation
Professional Rental LED Video Screens solution, modular design, indoor and outdoor applications
1.9mm / 2.6mm / 2.9mm / 3.9mm, 4.8mm

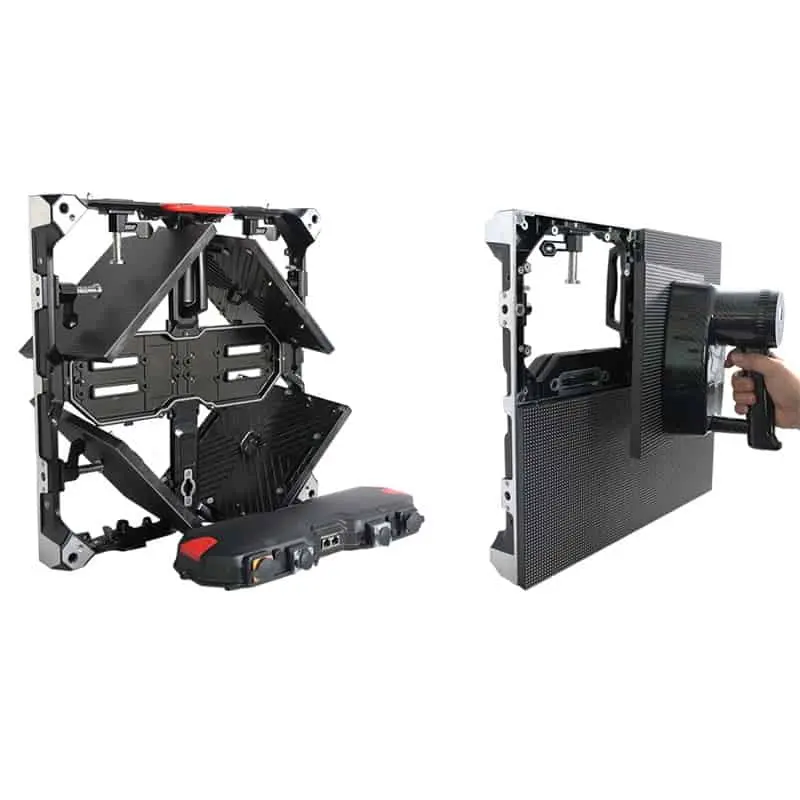

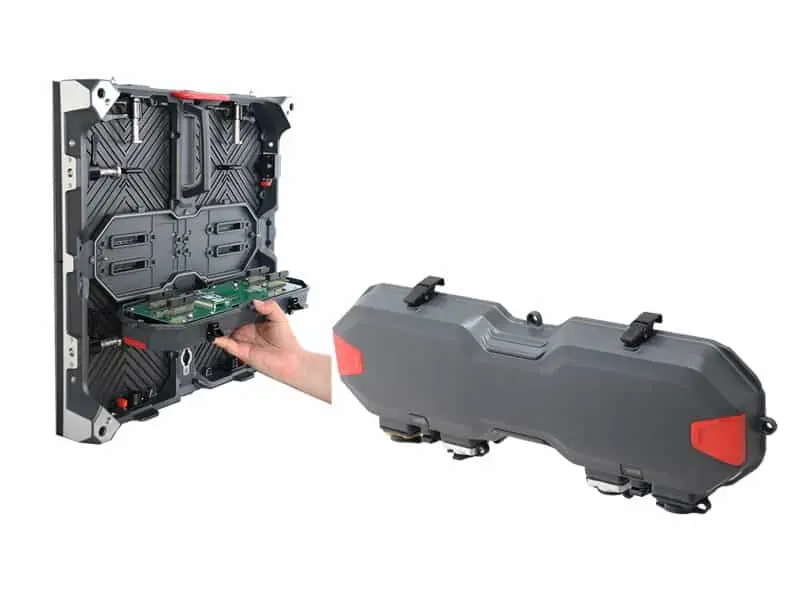

All LED modules / Power box can be front and back maintenanceÂ
10 seconds rapid replacement

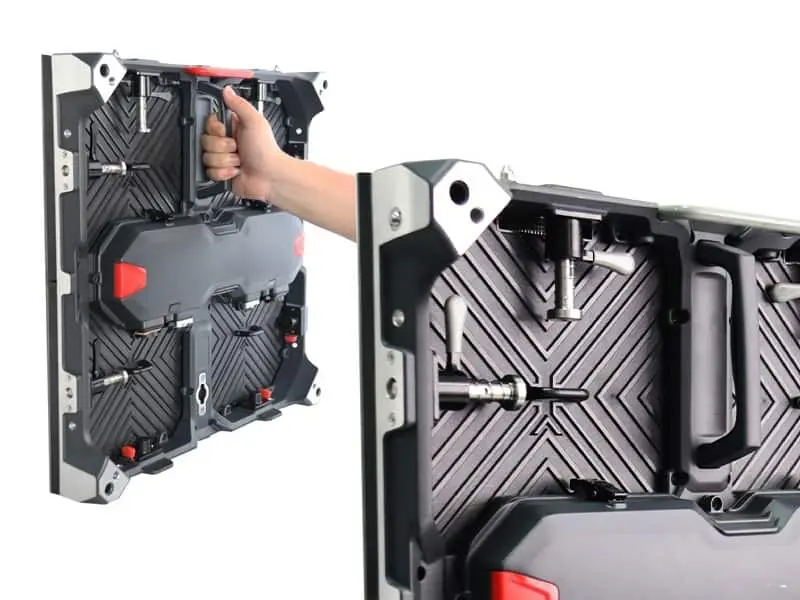

User friendly design
Single person installation
Easy operation
Pre-locking system
Perfect solution for rental application
Pixel Pitch 1.953mm 2.604mm 2.976mm 3.91mm 4.81mm
Fits for both indoor and outdoor
Fits all pixel pitches
No tool needed, rapid replacement
Front & back maintenance
Dis-location installation
Optional curve shape installation
Hanging installation
Ground installation
Product Videos
Specification
| Pixel pitch（mm） | 2.6mm indoor | 2.9mm indoor | 3.9mm indoor | 2.9mm outdoor | 3.9mm Outdoor | 4.8mm Outdoor |
|---|---|---|---|---|---|---|
| Pixel Matrix Per SQM | 147456 | 112896 | 65536 | 112896 | 65536 | 43264 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD2020 | SMD1415(outdoor) | SMD1921 | SMD1921 |
| Brightness(nits) | 1000 nits | 1000 nits | 1100 nits | 4500 nits | 4500 nits | 4500 nits |
| Scan | 44585 | 44589 | 44577 | 44582 | 44577 | 44574 |
| Power Con.(Max/Avg) | 200W/sqm(Avg) | 200W/sqm(Avg) | 220W/sqm(Avg) | 200W/sqm(Avg) | 220W/sqm(Avg) | 200W/sqm(Avg) |
| 640W/sqm(Max) | 600W/sqm(Max) | 680W/sqm(Max) | 640W/sqm(Max | 640W/sqm(Max) | 640W/sqm(Max) | |
| Modules Dimension | 250mm x 250mm x 17mm | 250mm x 250mm x 17mm | 9.84mm x 9.84mmx 0.67mm(W x H x D) | 250mm x 250mm x 17mm | 250mm x 250mm x 17mm | 250mm x 250mm x 17mm |
| Modules Solution | 96 x 96 | 84 x 84 | 64 x 64 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinets Solution | 168 x 168 | 128 x 128 | 128 x 128 | 104 x 104 | ||
| Cabinets Weight | 7.1kg / 15.65 lbs | 7.5kg / 16.53lbs | 7.1kg / 15.65 lbs | 7.8kg / 17.19lbs | 8.2kg / 18.08lbs | 8.2kg / 18.08lbs |
| Serivice Access | Front / Rear | |||||
| Refresh Rate(HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Grey Scale(bit) | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits |
| Viewing Angle(H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| IP Rate | IP31 / IP 31 | IP31 / IP31 | IP31 / IP31 | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 |
| Input Voltage(AC) | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ |
| Operating Temperature | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° |
| Lifespan(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) |
