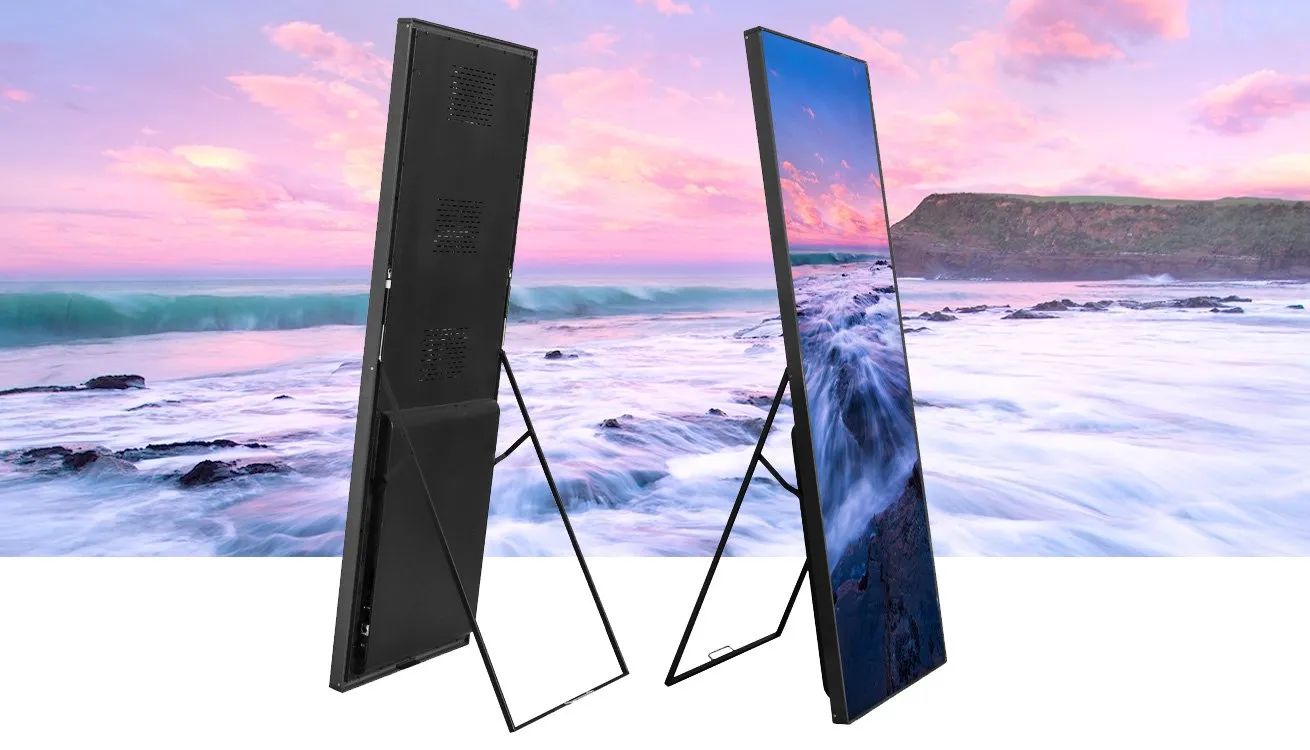

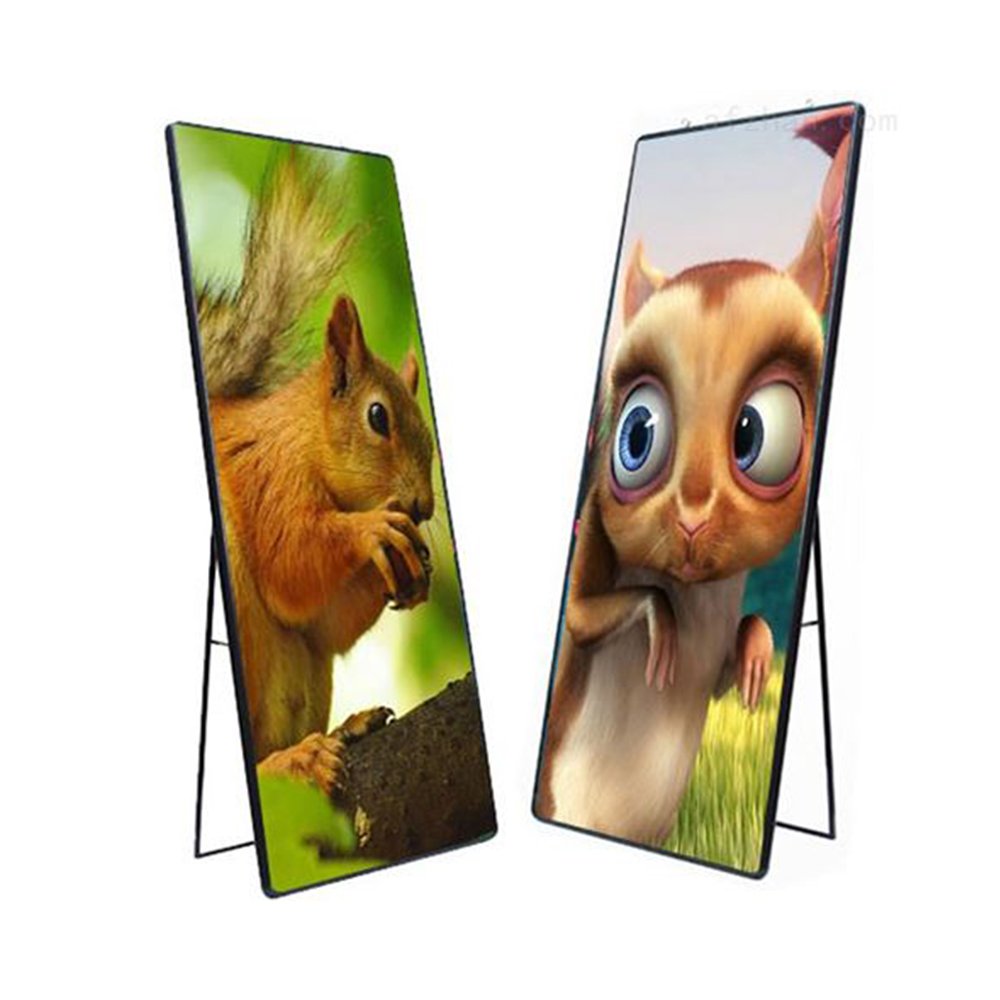

640x1920 LED Poster Display Screen

As its name suggests, Indoor poster LED screen is widely used as posters for shopping mall,
fashion store, exhibition show, hotel lobby and bank lobby. With its simple structure and easy operation,
poster LED display are used for advertising, information release and product presentation.
Our company designs this poster screen and publishes new products now and then.

640mmx1920mm Standard Size Cabinet

640x1920mm standard size cabinet design.Suitable for all 320x160mm GOB LED display modules

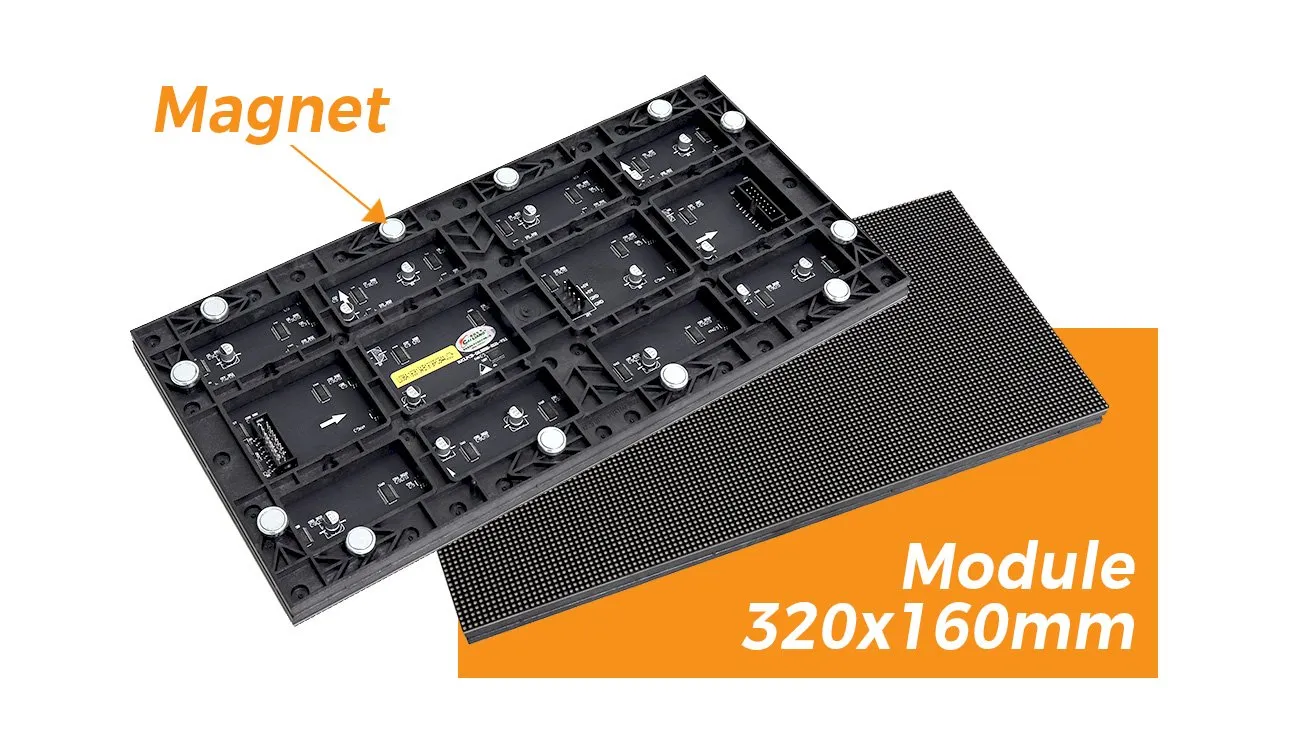

Suitable for 320x160mm Standard Size Modules

640x1920mm LED display with standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

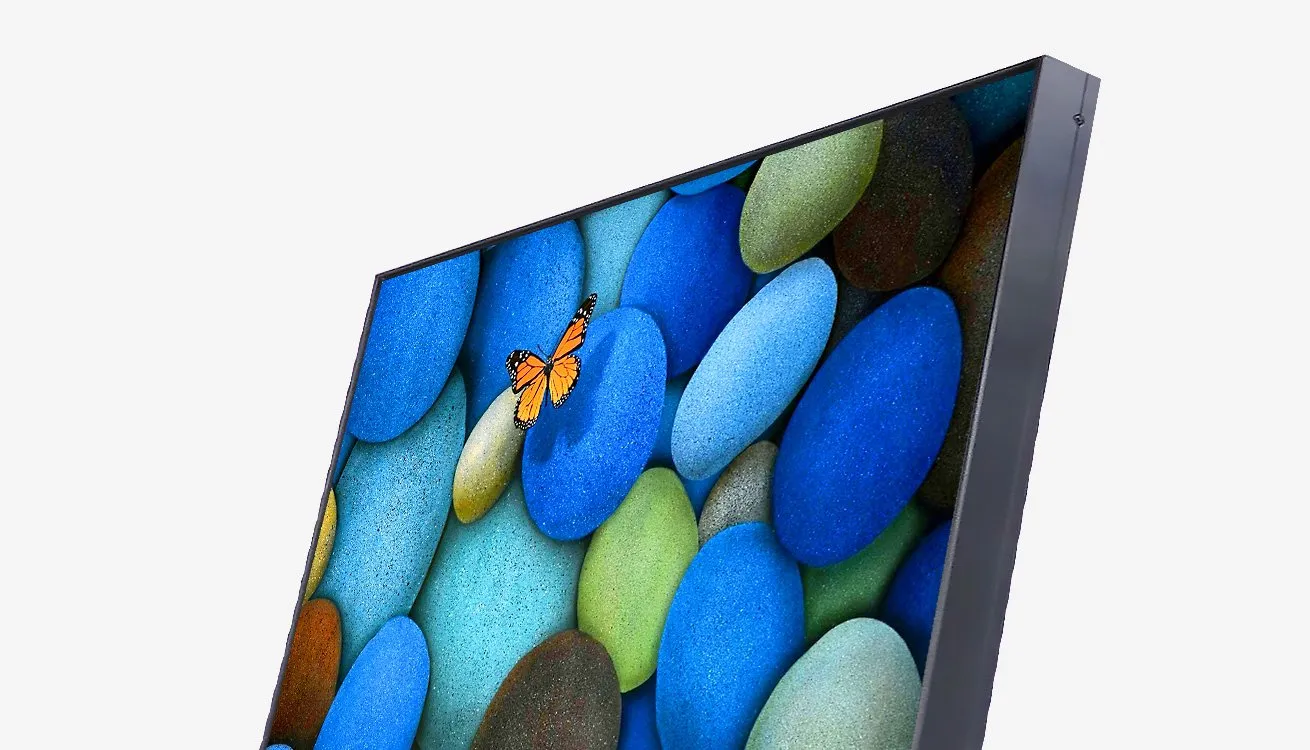

Ultra Thin

640x1920mm cabinet Standard Size series LED display with ultra thin cabinet design, the thickness is 100mm.
Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless.

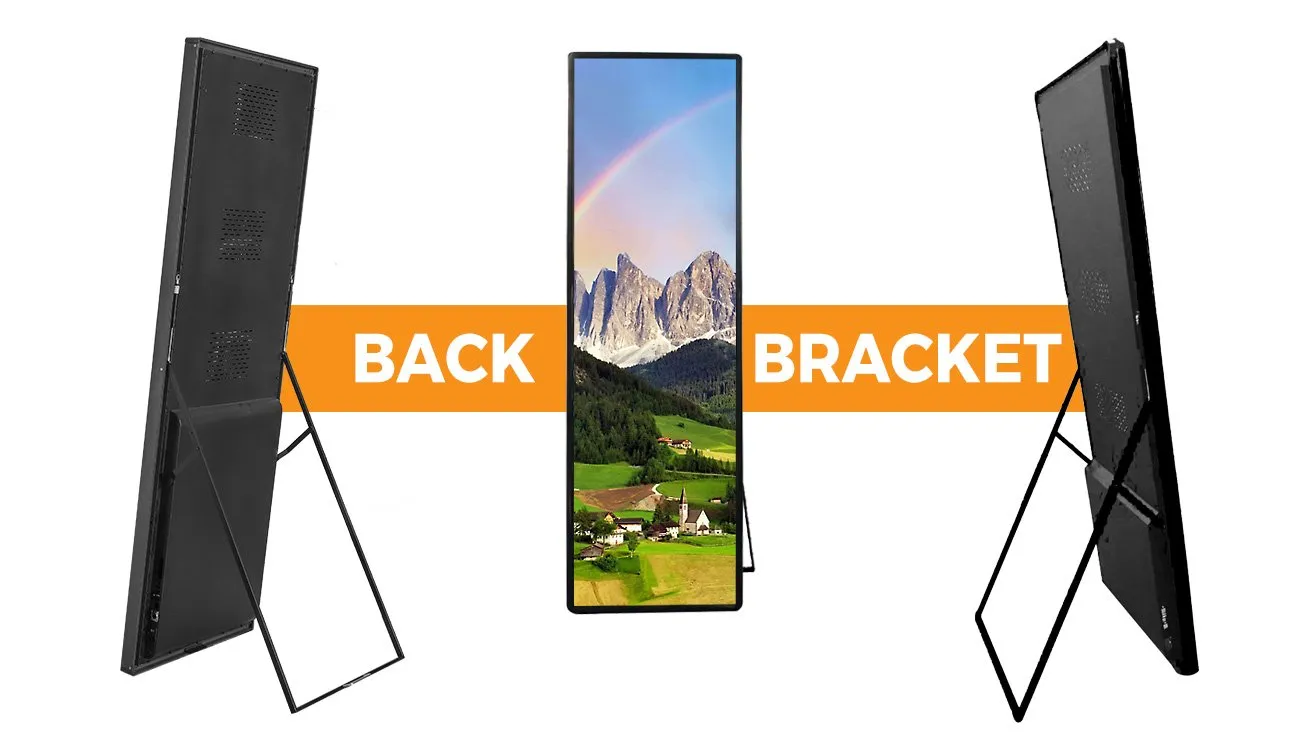

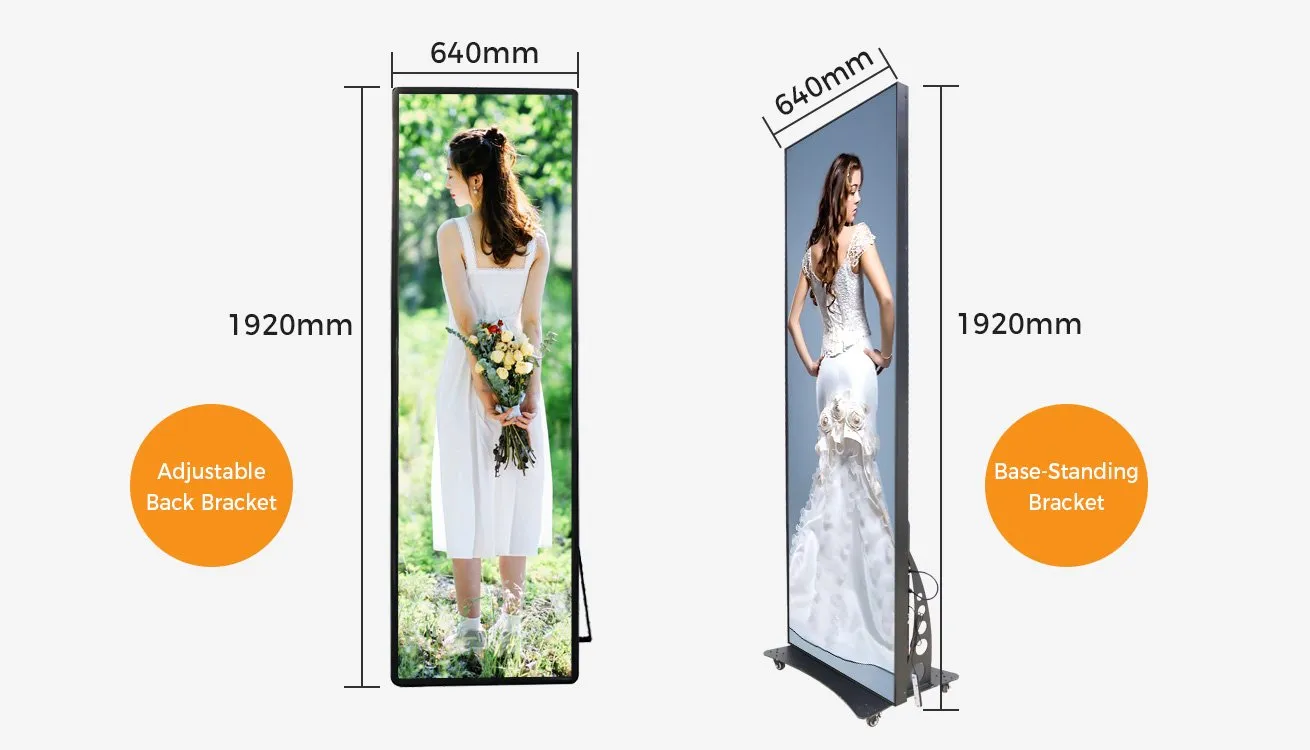

Adjustable Back Bracket

LEEMAN poster series LED Poster Screen equiped with Hydraulic Back Bracket, which make it stably standing on ground.
Also this unique feature to make adjustable viewing angle available, and more and more audience can be reached.
Back Bracket is easily pull out when you want to support the LED poster and put in when you dont need it.

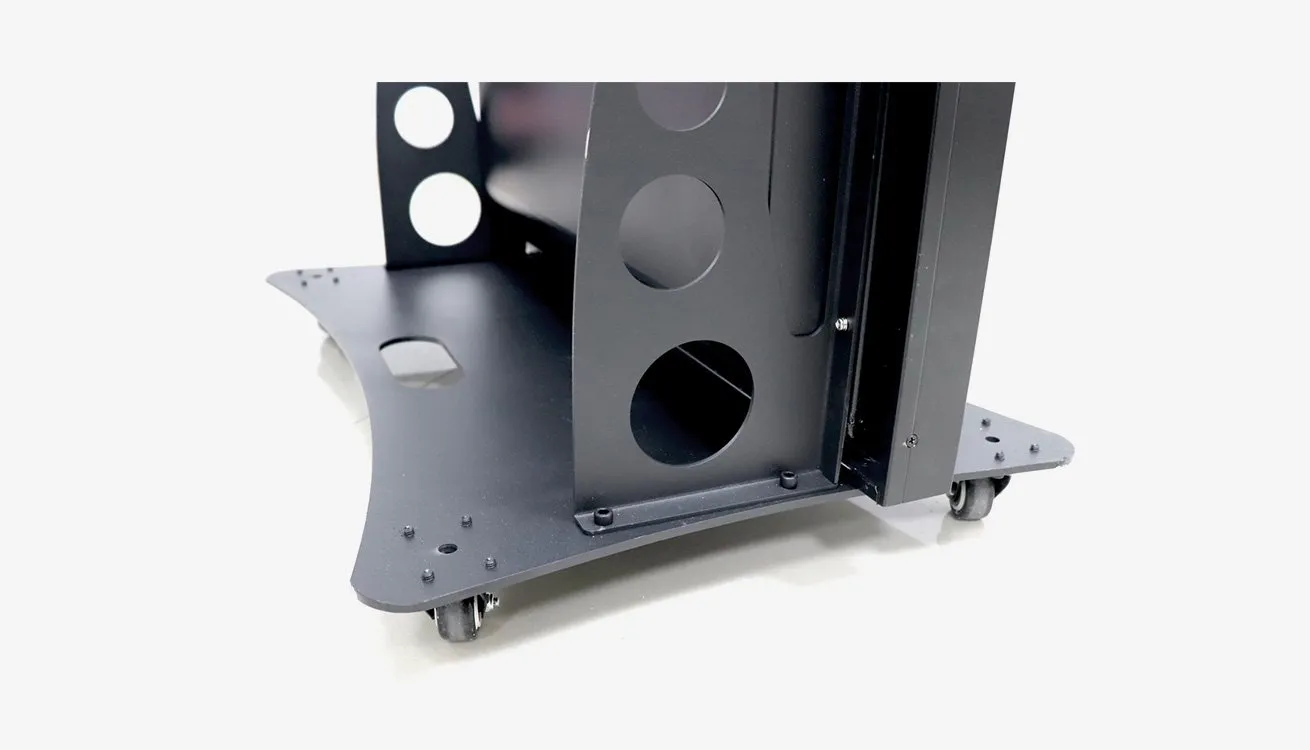

Unique Base-Standing Bracket

The base stand comes with 4 wheels that make the poster LED screen rotate freely and allow free movement in all directions.

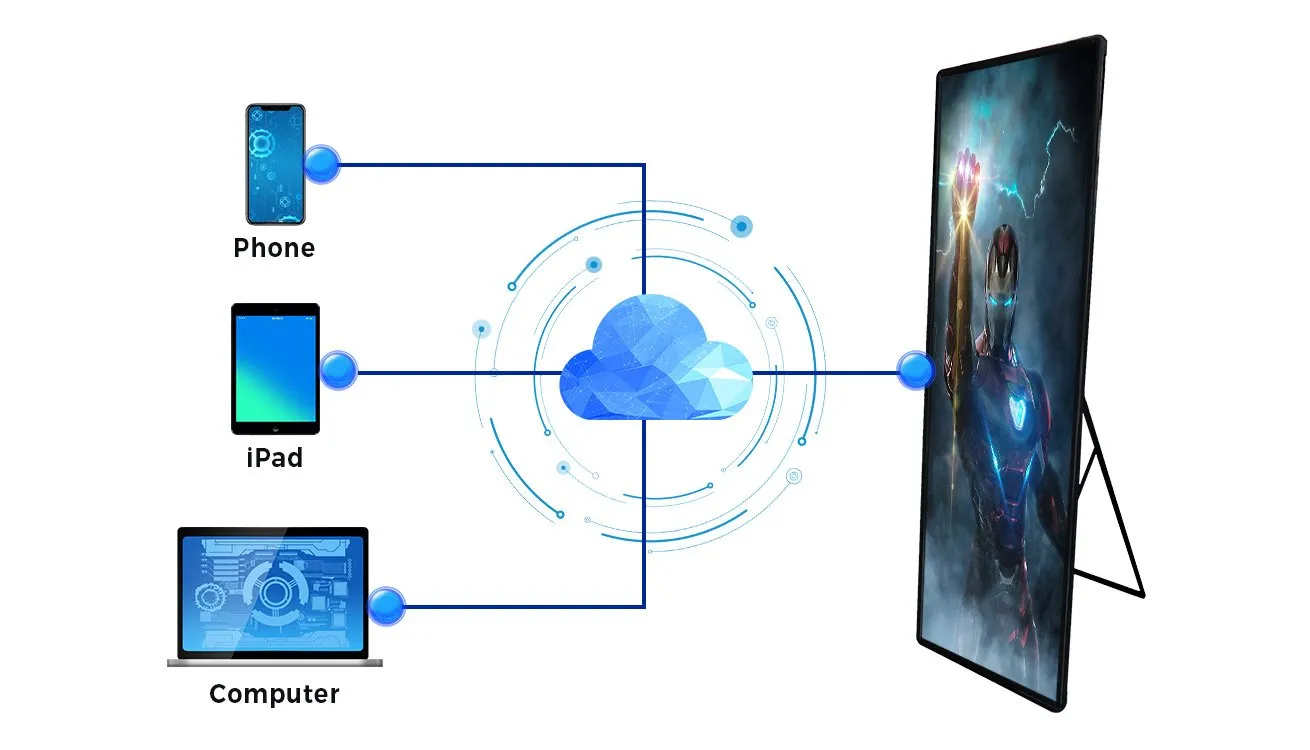

Smart Cloud Management

LEEMAN 640×1920 LED Poster Display Screen support Synchronous & asynchronous control system,the COB LED screen content can be
updated via ipad, phone, PC computer, or notebook.Real time play, Cross-platform publish. Support USB or WIFI,
Support operation by IOS or Android devices.Support built-in media player to store and play content.

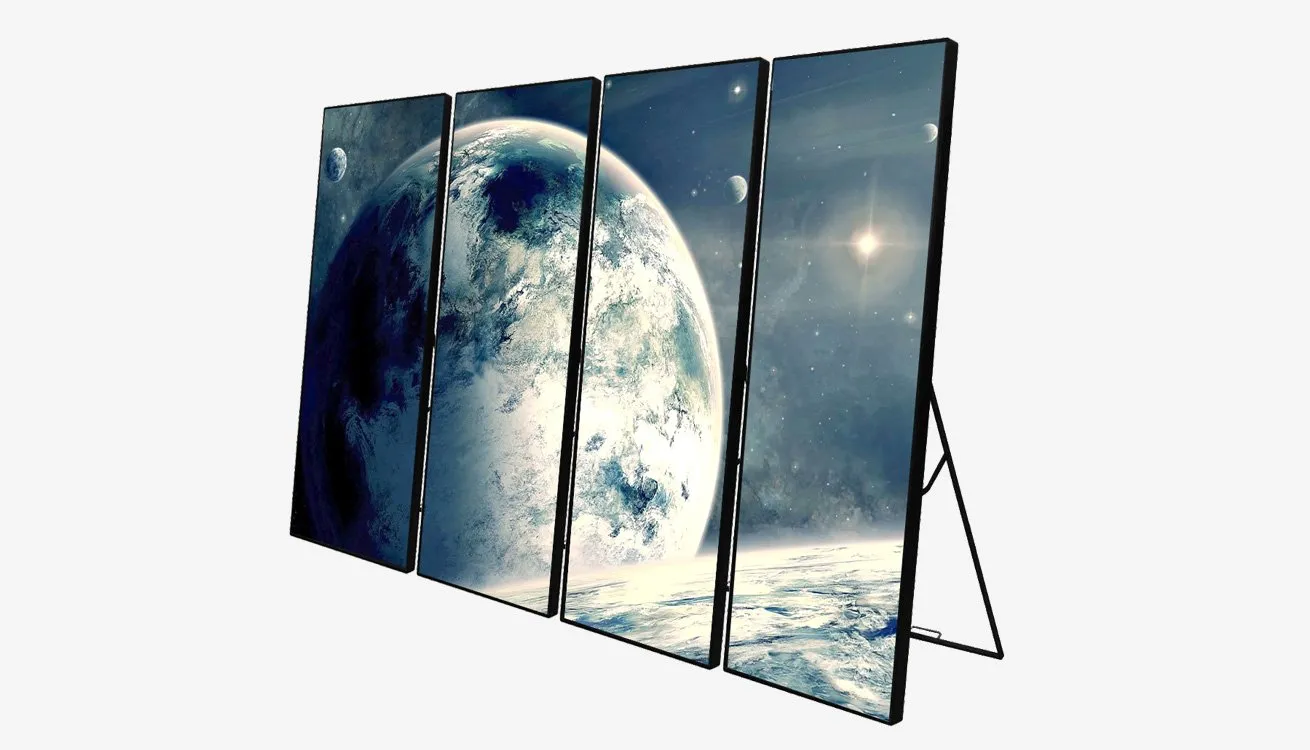

Seamless Cascade

Leeman LED Iposter series LED Poster display can be seamless cascade with multi screen to reach a large one.
LED screen can play as one big screen or separately.

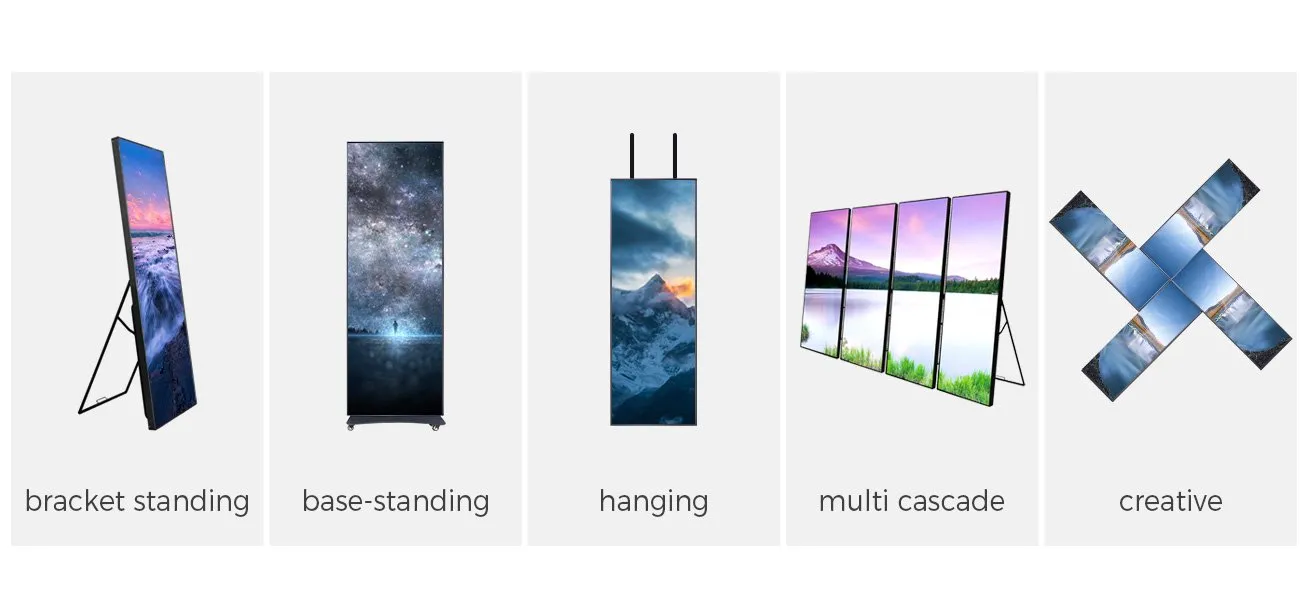

Multi-installation Method

LEEMAN Poster LED display support Multi-installation ways,
The product is suitable for bracket standing installation, base-standing installation, lifting or hanging installation,
multi cascade installation and creative installation. no need steel structure to install, convenient and quickly.

Indoor 640x1920mm LED Poster Display Screen Parameter

Pixel Pitch (mm)P2P2.5P3.076P4P8P10 (2S)P10 (4S)P10 (DIP)P16 (DIP)
Pixel ConfigurationSMD1515SMD2121SMD2121SMD2121SMD3535SMD3535SMD3535DIP346DIP346
Density (Pixels/㎡)250,000160,000105,68962,50015,62510,00010,00010,0003,906
Module Resolution (Pixel)160x80128x64104x5280x4032x1632x1632x1632x1616x16
Module Size (mm)320x160320x160320x160320x160256x128320x160320x160320x160256x256
Driving Mode (Duty)1/401/321/261/201/41/21/41/41/1
Cabinet Size (mm)640x1920640x1920640x1920640x19201024x768960x960960x960960x9601024x1024
Cabinet Weight (KG)4040404031.536364652
Brightness (CD/㎡)≥800≥1,000≥1,000≥800≥6,000≥7,500≥6,000≥8,000≥8,500
Viewing Angle (°)120120120120120120120120120
Gray Grade (Bits)141414141414141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)439457413351760850540520540
Avg. Power Consumption (W/㎡)150153138117260285180175180
Frame Frequency (Hz)≥60≥60≥60≥60≥60≥60≥60≥60≥60
Refresh Frequency (Hz)≥1,920≥1,920≥1,920≥1,920≥3,840≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60-20~+60-20~+60-20~+60-20~+60-20~+60-20~+60-20~+60
Lifetime (Hours)100,000100,000100,000100,000100,000100,000100,000100,000100,000
Protection GradeIP31IP31IP31IP31IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)IP65(front), IP54(rear)

Indoor 500x500mm Rental LED Display 500C2 Series Parameter

Pixel Pitch (mm)P2.97P3.91P4.81
Pixel ConfigurationSMD2020SMD2020SMD2020
Density (Pixels/㎡)112,89665,53643,264
Module Resolution (Pixel)84x8464x6452x52
Module Size (mm)250x250250x250250x250
Driving Mode (Duty)1/28 1/161/13
Cabinet Size (mm)500x500500x500500x500
Cabinet Weight (KG)6.56.56.5
Brightness (CD/㎡)≥1,000≥1,000≥1,000
Viewing Angle (°)120120120
Gray Grade (Bits)141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)480576560
Avg. Power Consumption (W/㎡)160192190
Frame Frequency (Hz)≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840
Working Temperature (ºC)-20~+60-20~+60-20~+60
Lifetime (Hours)100,000100,000100,000
Protection GradeIP31IP31IP31
