Platinum Series Premium Front Maintenance Outdoor LED Display 960x960

5 years warranty / 7000 -10,000 nits super high brightness / IP66 water-proof

no need ventilation & air conditioning system

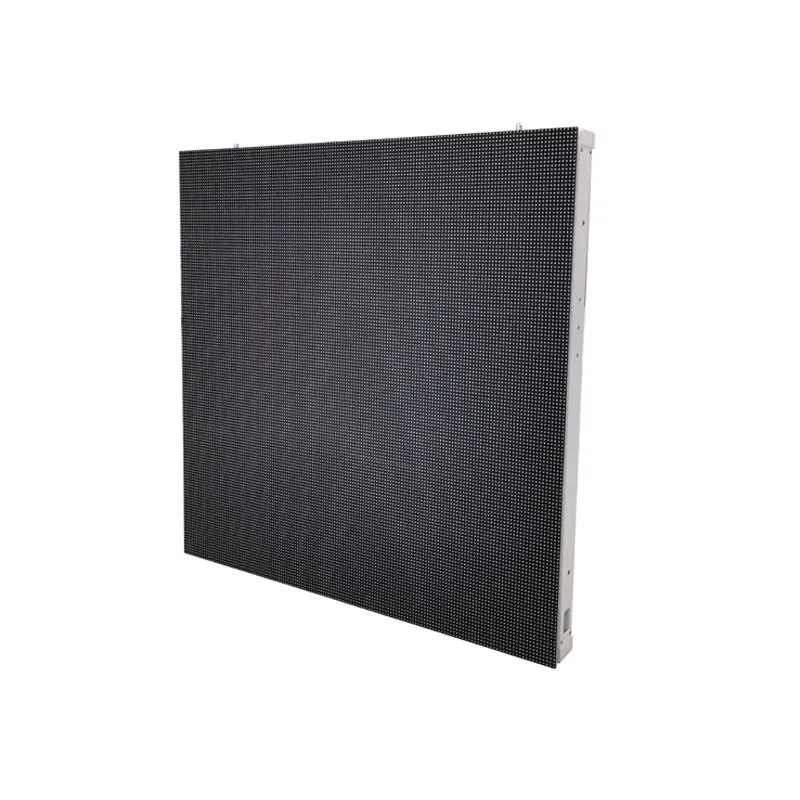

Platinum LED Display Leeman IP66 outdoor LED Display Screen is new genration of outdoor fix installation LED display. High brightness  7000-9000 nits, 150w per square meter average power consumption, no need any ventilation or aircondition system

5 years warranty

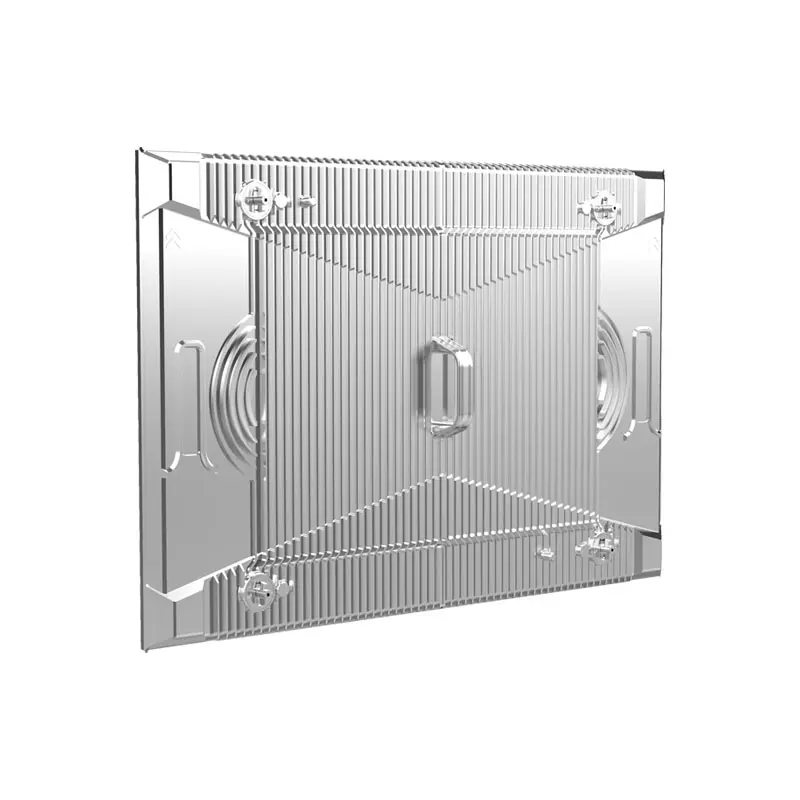

Outdoor Fixed Screen suppliers and factory,Custom Platinum Series Outdoor Fixed DOOH LED Display Aluminum die-casting LED module housing for IP68 rating protection and natural cooling without any ventilation and aircon

7000 – 10,000 nits high brightness,1:5000 contrast ratio

average 120-150W energy-saving power consumption

IP66 front and back high protection cabinet

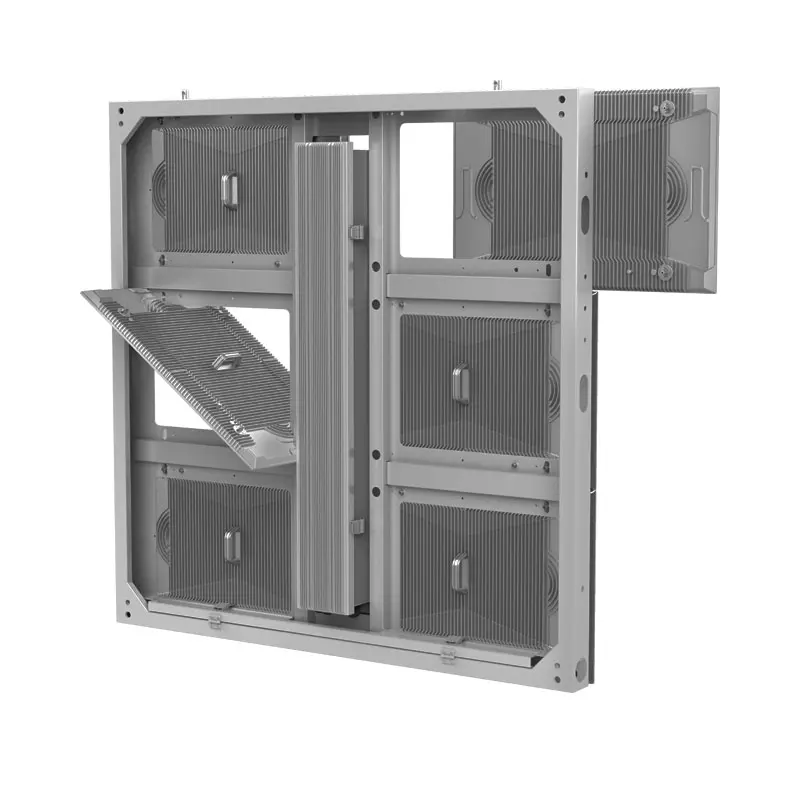

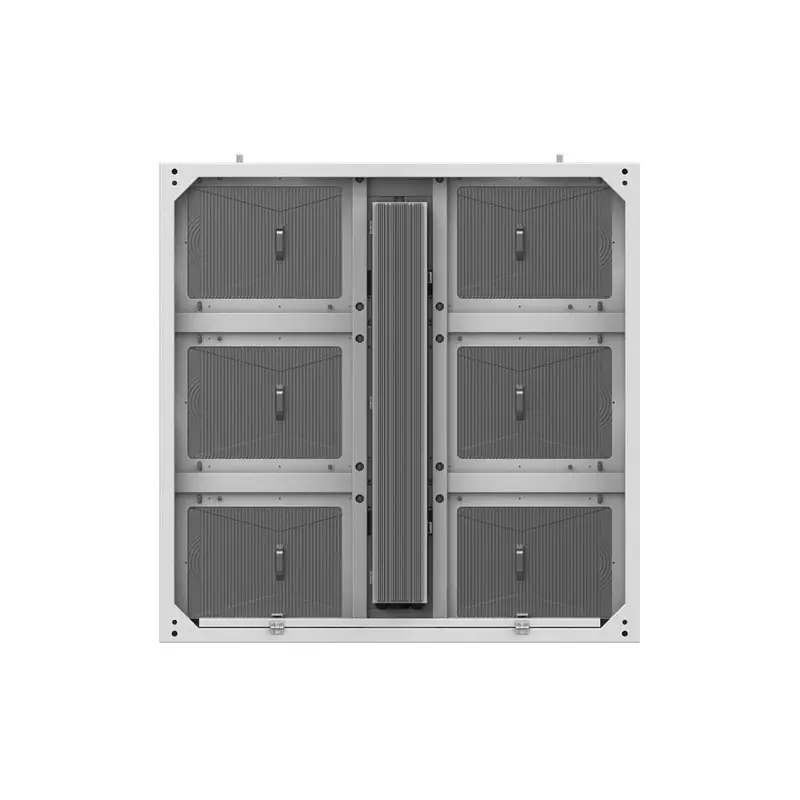

Super light weight die-casting magnesium cabinet, 28-32kg per cabinet

Water-proof protection of power supply and receiving card inside the cabinet

Heat resistant,fireproof, insulation of cables

IP66 front and back high protection cabinet

Super light weight die-casting magnesium cabinet, 28-32kg per cabinet

Specification

Pixel Matrix Per SQM225001562510000
Pixel ConfigurationSMD 2727SMD3535SMD3535
Power Con.(Max/Avg)550/200 w/sq.m550/190 w/sq.m550/190 w/sq.m
480mm x 320mm480mm x 320mmv480mm x 320mm
Modules Resolution72 x 4860 x 4048 x 32
960mm x 960mm x 75mm(W x H x D)960mm x 960mm x 75mm(W x H x D)960mm x 960mm x 75mm(W x H x D)
Cabinet Resolution144 x 144120 x 12096 x96
Cabinets Weight(kg)28kg /61.72lbs28kg /61.72lbs28kg /61.72lbs
Serivice AccessFront & Rear
Gray Scale(bit)16
IP RateIP66
Input Voltage(AC)110V / 240V 50/60 HZ
Lifespan(hrs)>100,000(hrs)
