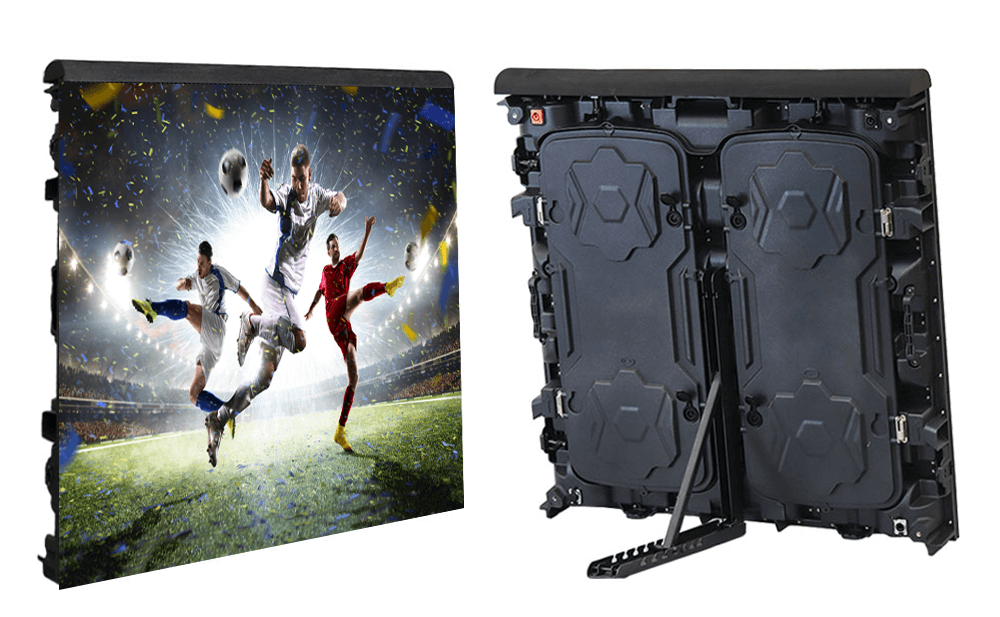

High refresh rate, no flicker during live switch

Sport Football Stadium Perimeter LED Screen Display 960×960 high refresh rate 3800Hz,without the phenomenon of drag and flicker under the shooting conditions of professional cameras and cameras of 1/2800 seconds,which ensures a fine high-definition display screen.to ensure the ultra high-defination image quality。

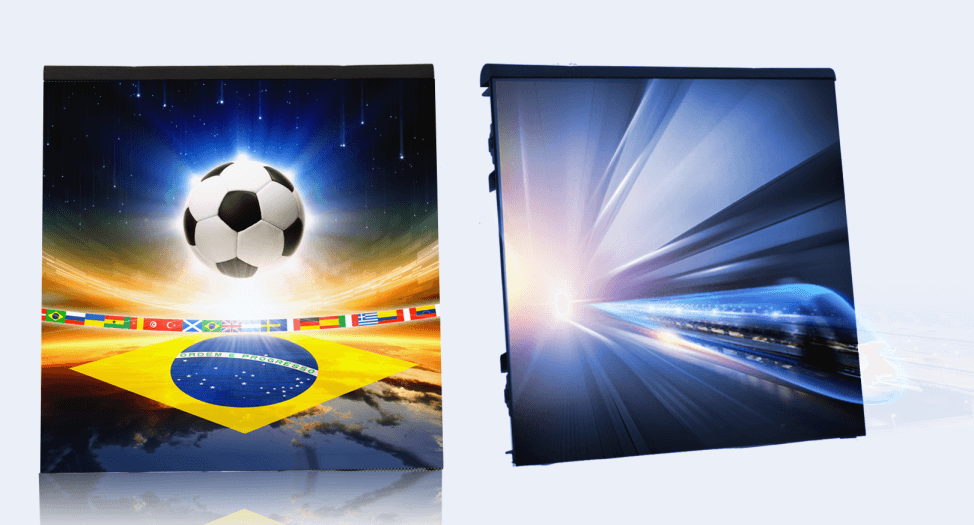

Optical Fiber Transmission

Adopted an efficient optical fiber transmission control system to avoid signal attenuation during live broadcast lead to delay of live broadcast picture.

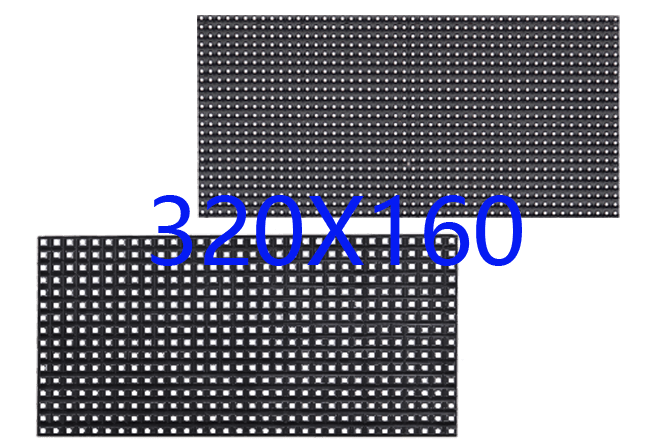

960mm Series LED display with standard size panel: 320*160mm. Pay more attention to the standard led screen display performance, the Quick Assembling and Maintenance.
also it is very convenient when you change the pixel pitch such as P8mm to P10mm. you dont need to change anything,
just change the module as they have the same module size and structure.

Exquisite cabinet design features

LEEMANLED 960mm Series LED display Product is Less weight led display with quick locks, delicate structure for easy installation without Gaps.
Humanization handlebar design make you more easy to move the cabinet.

Independent support structure

There is an independent support structure that can be rotated and adjusted, and it can still stand even when subjected to a strong external impact. The installation angle of the cabinet can be adjusted according to the actual site conditions, and the angle can be flexibly changed. It supports 60 ° / 65 ° / 70 °/ 75 °/ 80 °/ 85 °/ 90 ° multi-angle adjustment.

Soft mask design

The soft surface and unique soft protective pad can protect people’s safety, even if someone hits the LED screen, it is very effective to protect people’s safety.


Leeman Display outdoor stadium 960 series LED display weighs only 28.5kg, is easy to transport, saves your labor costs, and is lightweight, easy to install, assemble and disassemble.

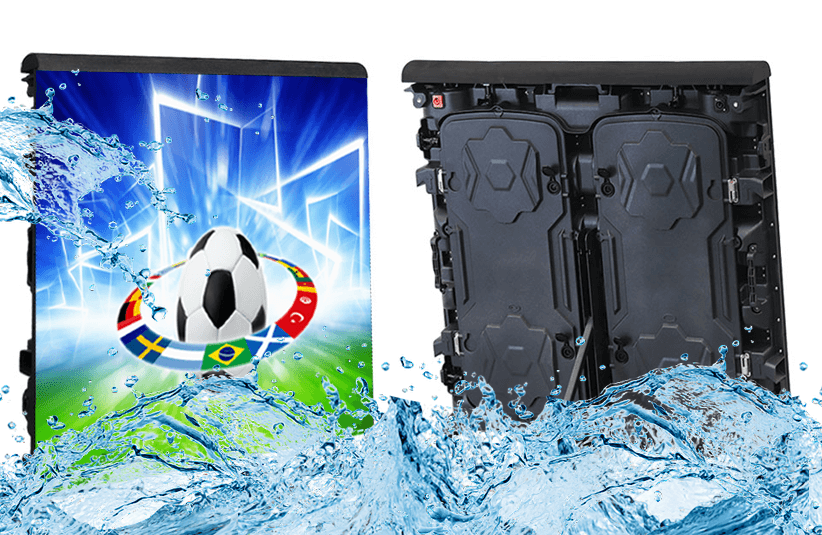

With waterproof performance

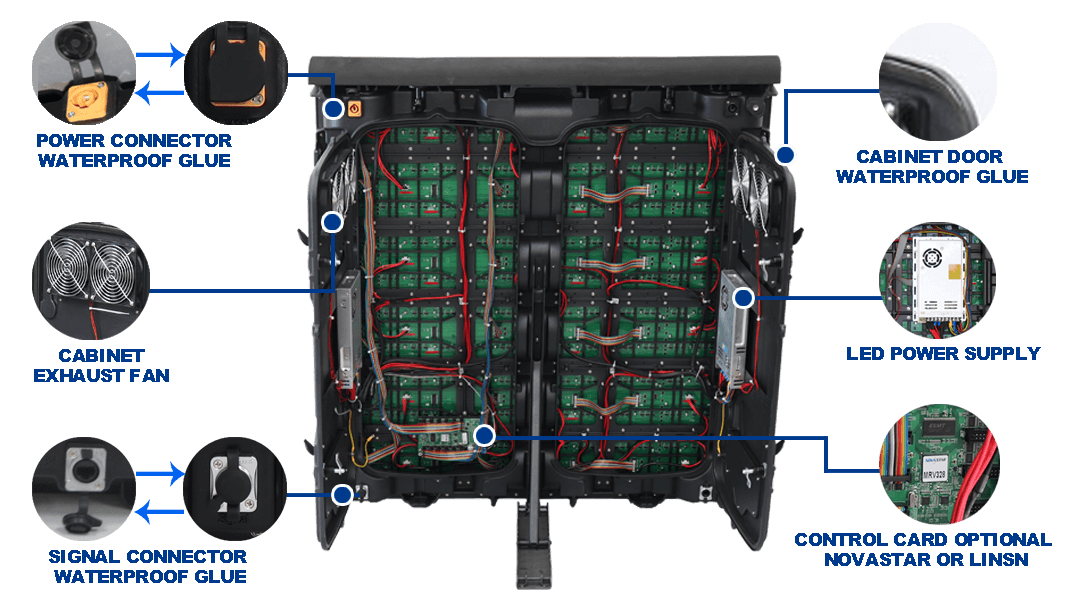

Sport Football Stadium Perimeter LED Screen Display 960×960 has a special air inlet, a waterproof structure, excellent water resistance, can achieve the effect of heat dissipation design and absolutely quiet operation.


pecific independent waterproof module and the waterproof enclosure with excellent sealing performance to protect cabinet,
which is dustproof, waterproof and corrosion resistant, and the protection grade is up to IP65.

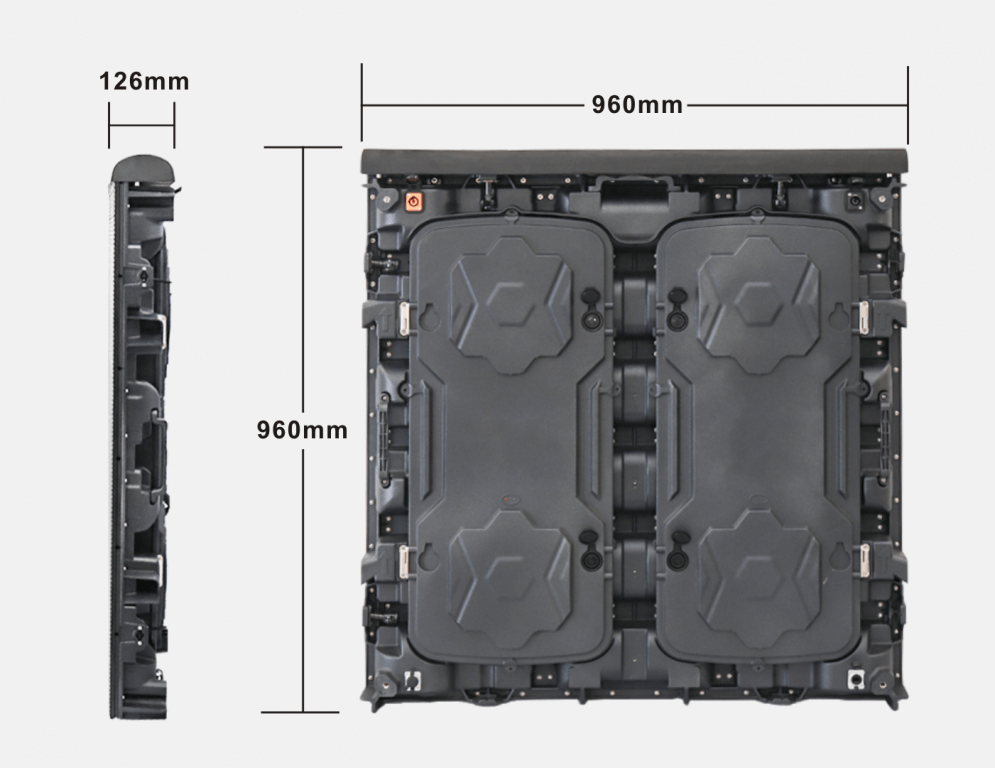

The outdoor stadium led box weighs only 28.5kg and its thickness is only 126mm. The ultra light cabinet body is made of aluminum alloy and has protective performance. The delicate design of the lightweight LED display makes it very easy to install. In addition, the quick lock feature can be installed and uninstalled without any technical skills.


All-weather for outdoor environment. With LEEMAN unique protection technology to make the display reache the level of IP65,
can work normally in any weather condition! High protection grade of IP65 guarantees, durability, reliability, Anti-ultraviolet and steady.

Stadium Perimeter LED Display Parameter

Pixel PitchP8P10 (2S)P10 (4S)P3.91 Universal indoor&outdoor
Pixel ConfigurationSMD3535SMD3535SMD3535SMD1921
Density (Pixels/㎡)15,62510,00010,00032,768
Module Resolution (Pixel)40x2032x1632x16128x8
Module Size (mm)320x160320x160320x160500x62.5
Driving Mode (Duty)1/51/21/41/16
Cabinet Size (mm)960x960960x960960x9601000x500
Cabinet Weight (KG)28.528.528.58.5
Brightness (CD/㎡)≥6,500≥7,500≥6,000≥2,800
Viewing Angle (°)12012012070
Gray Grade (Bits)141414120
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz14
Max. Power Consumption (W/㎡)600850540AC100-240V 50-60Hz
Avg. Power Consumption (W/㎡)200285180560
Frame Frequency (Hz)≥60≥60≥60185
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥60
Working Temperature (ºC)-20~+60-20~+60-20~+60≥3,840
Lifetime (Hours)100,000100,000100,000-20~+60
Protecting GradeIP65(front),IP54(rear)IP65IP65(front),IP54(rear)IP65(front),IP54(rear)100,000
Protecting GradeIP42IP42IP33IP65
P4 P5 P6 P8 P10 Outdoor Sport Football Stadium Perimeter LED Screen Display 960×960
