Innovative LED visual Bring your windows to life with transparent LED Film Window and Transparent LED display. Transparent LED Glass and Transparent LED Screens are an innovation in the retail store

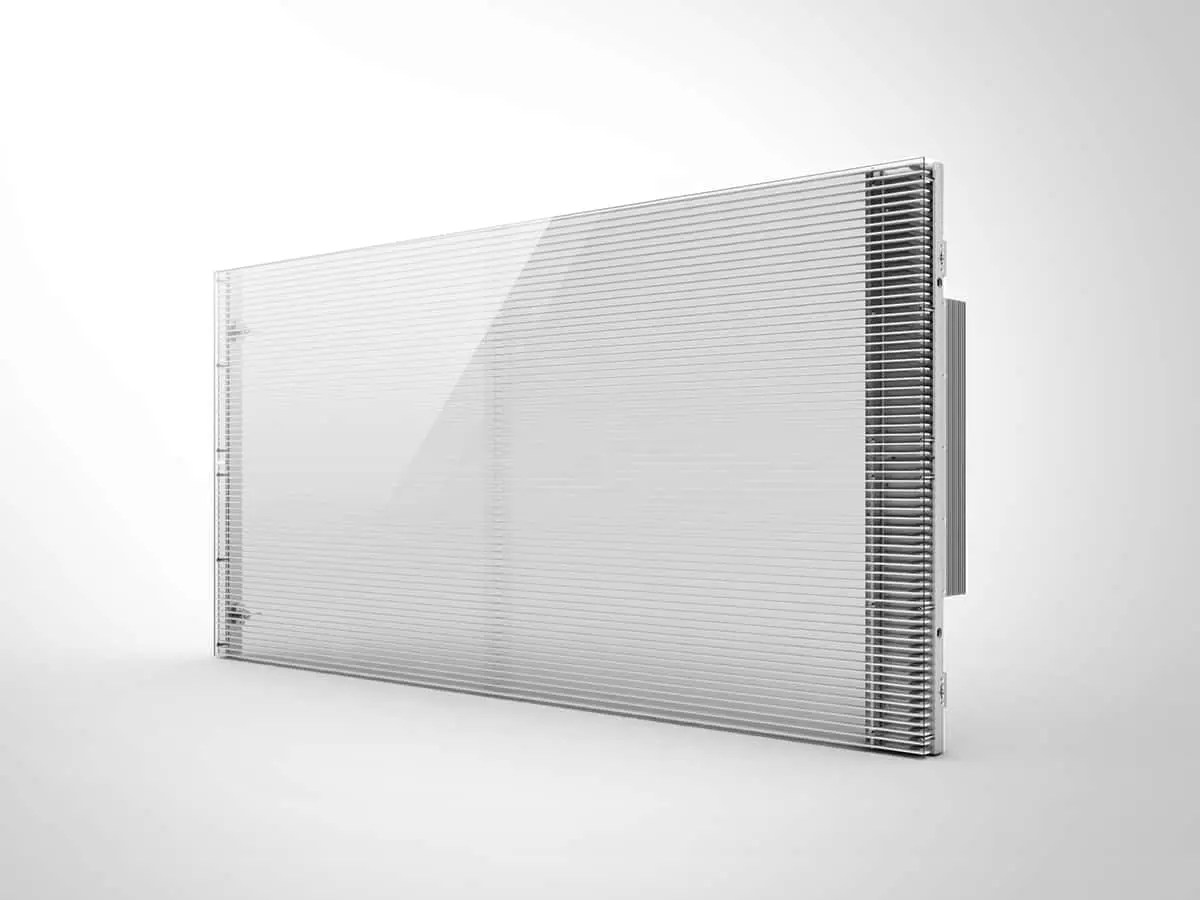

Outdoor Transparent LED screen is an innovative visual solution turning windows or building in to a digital signage screen, enable showing advertisements without blanking.
82% high transparency
5000 nits high brightness
Viewing angle 120°
Size:500mm x 1000mm
87% high transparency
Outdoor 5500 nits high brightness
Viewing angle up to 160°
Size: 500mm x 500mm / 500mm x 1000mm
Specification
| Pixel pitch (mm) | 3.91x7.8mm indoor | 3.91x7.8mm outdoor | ||
|---|---|---|---|---|
| Pixel Matrix Per SQM | 32768 | 32768 | ||
| Transparency | 82% | 82% | ||
| Brightness(nits) | 1200 | 5000 | ||
| Scan | 1/8 | 1/4 | ||
| Power Con.(Max/Avg) | 150W/sqm(Avg) | 240W/sqm(Avg) | ||
| 600W/sqm(Max) | 720W/sqm(Max) | |||
| Modules Dimension | 19.69mmx 2.46mm | 19.69mmx 2.46mm | ||
| 500mm x 62.5mm | 500mm x 62.5mm | |||
| Modules Solution | 128 x 8 | 128 x 8 | ||
| Cabinets Dimension | 39.37mmx 19.69mm | 39.37mmx 19.69mm | ||
| 1000mm x 500mm | 1000mm x 500mm | |||
| Cabinet resolution | 256 x 64 | 256 x 64 | ||
| Cabinets Weight | 8kg / 17.64lbs | 8kg / 17.64lbs | ||
| Serivice Access | Rear | Rear | ||
| Refresh Rate(HZ) | 3840 | 3840 | ||
| Grey Scale(bit) | 14 | 14 | ||
| Viewing Angle(H/V) | 160¡ã/160¡ã | 160¡ã/160¡ã | ||
| IP Rate | IP31 | IP43 | ||
| Input Voltage(AC) | 110V / 240V, 50/60 Hz | 110V / 240V, 50/60 Hz | ||
| Operating Temperature | -20° ~ 50 ° | -20° ~ 50 ° | ||
| Lifespan(hrs) | >100,000(hrs) | >100,000(hrs) |
