OF800 Series Front Service Outdoor LED Display

Leeman OF800 Front Service Outdoor LED Display Unique Cabinet Design with 800×900mm and 800×1200mm size, high flatness, Front service design for easy install and disassemble, Energy Saving LED Screen, multi usage with kinds of installations.

New Product, New Design

OF800 Series LED Display is LEEMAN latest outdoor fixed LED display with front service function, Unique Cabinet desigh with 800*900mm / 800*1200mm size,
High quality 400*300mm LED display module. Ultra low heat, high efficiency and energy saving.

800*900mm and 800*1200mm

OF800 Serie Outdoor Front Service Energy Saving LED Display Screen is designed with two size. 800*900mm and 800*1200mm is optional.
Ultra-light cabinet with 22kg for 800*900mm cabinet and 29kg for 800*1200mm cabinet. Ultra thin cabinet with 98mm thickness.

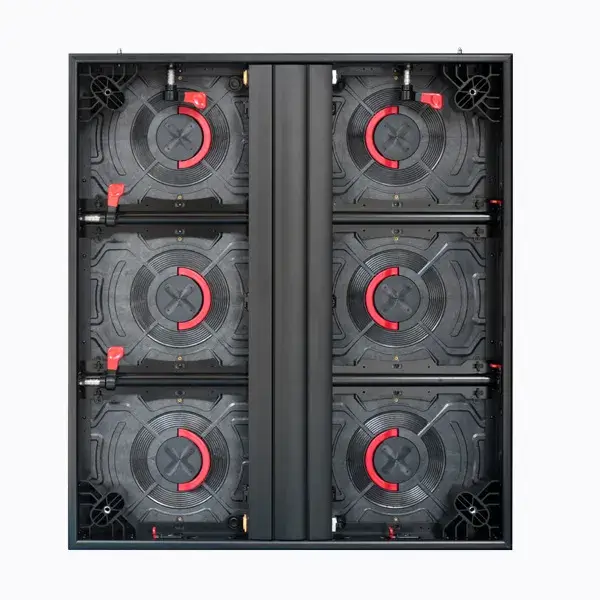

Unique Cabinet Design

OF800 Outdoor Frontal Service LED screen adopts top-class design standard and industry-leading idea to design.the cabinet is beautifull and operation is user-friendly.The overall black color style with red moudle handle makes the entire LED display elegant and noble.

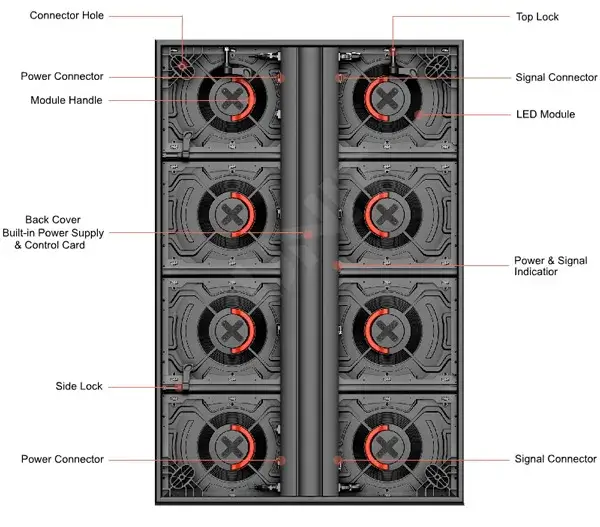

Frontal and Rear Double Service Design

LEEMAN OF800 Outdoor 800*900mm/800*1200mm LED Display is designed with dual access feature.
Support full front-maintenance and rear-maintenance, can be applied to different environments

400*300mm LED module panel

OF800 Outdoor Frontal Service LED sign adopts 400*300mm LED module panel with Hidden handle design,
module lock, waterproof rubber and uique fix holes for frontal service.

Sleamless Splicing

Seamless splicing, high flatness with wide viewing angle to offer excellent visual effect

Unltra Light Cabinet

800X900mm Cabinet 22.4KG, 30kg/㎡, Lighter than standard iron cabinet 35%,
800X1200 Cabinet 28KG. 29kg/㎡, Lighter than standard iron cabinet 36%

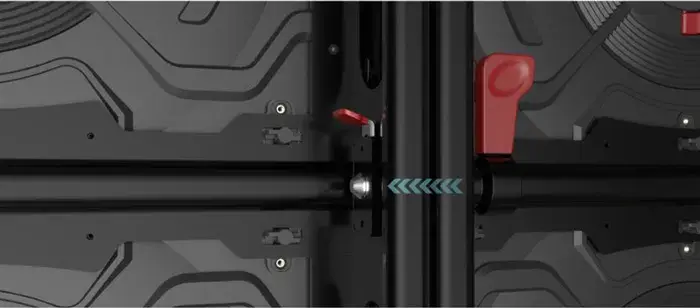

Fast Installation

Stainless steel quick lock + precision aluminum material cabinet, quick assembly, and good flatness

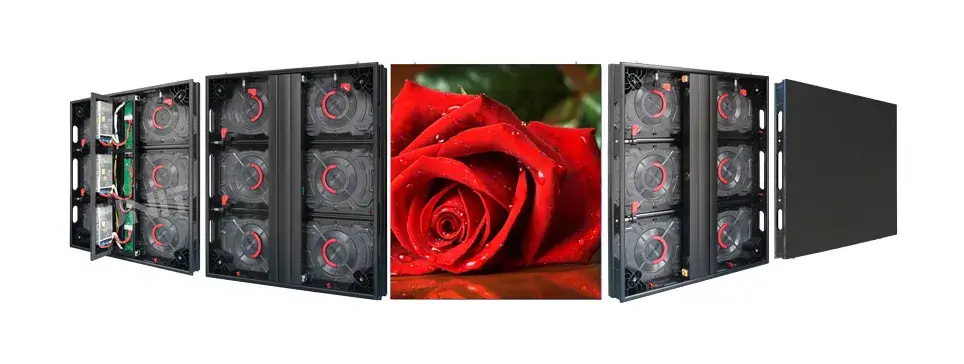

Multi Function

With Soft LED module Mask and adjustable back brackets, OF800 Outdoor Frontal Service LED screen
can be use as sports LED display and stadium perimeter LED display

OF800 Series Front Service Outdoor LED Display

Pixel Pitch4.16mm5mm6.25mm8.33mm10mm
LEDSMD 3in1SMD 3in1SMD 3in1SMD 3in1SMD 3in1
Module size400*300mm400*300mm400*300mm400*300mm400*300mm
Module resolution96*72dots80*60dots64*48dots48*36dots40*30dots
LED Cabinet Size800*900*98(mm)800*900*98(mm)800*900*98(mm)800*900*98(mm)800*900*98(mm)
Cabinet Weight22kg/pc22kg/pc22kg/pc22kg/pc22kg/pc
Brightness5500-6500 cd5500-6500 cd5500-6500 cd5500-6500 cd5500-6500 cd
Avg power consumption300w300w300w300w300w
Max power consumption600w600w600w600w600w
Best Viewing Distance4m to 40m5m to 50m6m to 60m8m to 80m10m to 100m
Grey Level14 bits14 bits14 bits14 bits14 bits
Fresh frequency≥960HZ≥960HZ≥960HZ≥960HZ≥960HZ
Humidity-operating10% ~ 95%10% ~ 95%10% ~ 95%10% ~ 95%10% ~ 95%
Screen life≥100000 hours≥100000 hours≥100000 hours≥100000 hours≥100000 hours
Controlling modeSynch or AsyncSynch or AsyncSynch or AsyncSynch or AsyncSynch or Async
Warranty3 Years3 Years3 Years3 Years3 Years
Protective gradeIP65 WaterproofIP65 WaterproofIP65 WaterproofIP65 WaterproofIP65 Waterproof


96*72 dots/module
400*300mm module


80*60 dots/module
400*300mm module


64*48 dots/module
400*300mm module


48*36 dots/module
400*300mm module


40*30 dots/module
400*300mm module

OF800 Front Service Outdoor LED Display Screen 800*900 And 800*1200
